Showing 1–12 of 71 results
-

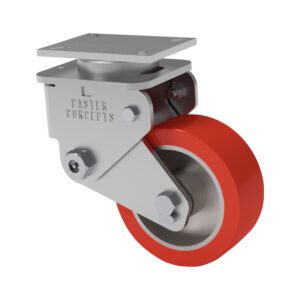

10×3 H.D. T/R Polyurethane Spring Loaded Swivel Caster
$390.00 – $585.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 73Capacity: 1100
SKU: 73-10301-66-110x3 H.D. T/R Polyurethane Spring Loaded Swivel Caster
Product Type: CasterSeries: 73Capacity: 1100Wheel Material: H.D. T/R PolyurethaneWheel Configuration: Single WheelWheel Type: PolyurethaneWheel Width: 3Wheel Diameter: 10Caster Style: Swivel CasterCaster Type: Spring LoadedOverall Height: 13.5Swivel Radius: 9.62Swivel Lead: 4.5Top Plate Size: 5 x 7.25Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125Bolt Size: 0.5Bearing Type: Straight Roller BearingSKU: 73-10301-66-1Caster Weight: 38 lbs -
10×3 H.D. T/R Polyurethane Spring Loaded Swivel Caster
$390.00 – $585.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 73Capacity: 1100
SKU: 73-10309-66-110x3 H.D. T/R Polyurethane Spring Loaded Swivel Caster
Product Type: CasterSeries: 73Capacity: 1100Wheel Material: H.D. T/R PolyurethaneWheel Configuration: Single WheelWheel Type: PolyurethaneWheel Width: 3Wheel Diameter: 10Caster Style: Swivel CasterCaster Type: Spring LoadedOverall Height: 13.5Swivel Radius: 9.62Swivel Lead: 4.5Top Plate Size: 5 x 7.25Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125Bolt Size: 0.5Bearing Type: Precision Tapered BearingSKU: 73-10309-66-1Caster Weight: 45 lbs -

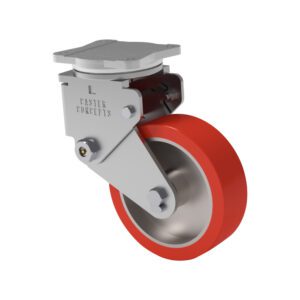

10×3 H.D. T/R Polyurethane Spring Loaded Swivel Caster
$650.00 – $1,950.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 83Capacity: 1700
SKU: 83-10301-66-110x3 H.D. T/R Polyurethane Spring Loaded Swivel Caster
Product Type: CasterSeries: 83Capacity: 1700Wheel Material: H.D. T/R PolyurethaneWheel Configuration: Single WheelWheel Type: PolyurethaneWheel Width: 3Wheel Diameter: 10Caster Style: Swivel CasterCaster Type: Spring LoadedOverall Height: 14.5Swivel Radius: 9.62Swivel Lead: 4.5Top Plate Size: 6 x 7.5Bolt Hole Pattern: 4.5 x 6Bolt Size: 0.5Bearing Type: Straight Roller BearingSKU: 83-10301-66-1Caster Weight: 50 lbs -
10×3 H.D. T/R Polyurethane Spring Loaded Swivel Caster
$650.00 – $1,950.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 83Capacity: 1700
SKU: 83-10309-66-110x3 H.D. T/R Polyurethane Spring Loaded Swivel Caster
Product Type: CasterSeries: 83Capacity: 1700Wheel Material: H.D. T/R PolyurethaneWheel Configuration: Single WheelWheel Type: PolyurethaneWheel Width: 3Wheel Diameter: 10Caster Style: Swivel CasterCaster Type: Spring LoadedOverall Height: 14.5Swivel Radius: 9.62Swivel Lead: 4.5Top Plate Size: 6 x 7.5Bolt Hole Pattern: 4.5 x 6Bolt Size: 0.5Bearing Type: Precision Tapered BearingSKU: 83-10309-66-1Caster Weight: 50 lbs -
10×3 Mold On Rubber Spring Loaded Swivel Caster
$390.00 – $585.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 73Capacity: 1100
SKU: 73-10301-70-110x3 Mold On Rubber Spring Loaded Swivel Caster
Product Type: CasterSeries: 73Capacity: 1100Wheel Material: Mold On RubberWheel Configuration: Single WheelWheel Width: 3Wheel Diameter: 10Caster Style: Swivel CasterCaster Type: Spring LoadedOverall Height: 13.5Swivel Radius: 9.62Swivel Lead: 4.5Top Plate Size: 5 x 7.25Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125Bolt Size: 0.5Bearing Type: Straight Roller BearingSKU: 73-10301-70-1Caster Weight: 42 lbs -
10×3 Mold On Rubber Spring Loaded Swivel Caster
$390.00 – $585.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 73Capacity: 1100
SKU: 73-10309-70-110x3 Mold On Rubber Spring Loaded Swivel Caster
Product Type: CasterSeries: 73Capacity: 1100Wheel Material: Mold On RubberWheel Configuration: Single WheelWheel Width: 3Wheel Diameter: 10Caster Style: Swivel CasterCaster Type: Spring LoadedOverall Height: 13.5Swivel Radius: 9.62Swivel Lead: 4.5Top Plate Size: 5 x 7.25Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125Bolt Size: 0.5Bearing Type: Precision Tapered BearingSKU: 73-10309-70-1Caster Weight: 42 lbs -
10×3 Mold On Rubber Spring Loaded Swivel Caster
$650.00 – $1,950.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 83Capacity: 1000
SKU: 83-10301-70-110x3 Mold On Rubber Spring Loaded Swivel Caster
Product Type: CasterSeries: 83Capacity: 1000Wheel Material: Mold On RubberWheel Configuration: Single WheelWheel Width: 3Wheel Diameter: 10Caster Style: Swivel CasterCaster Type: Spring LoadedOverall Height: 14.5Swivel Radius: 9.62Swivel Lead: 4.5Top Plate Size: 6 x 7.5Bolt Hole Pattern: 4.5 x 6Bolt Size: 0.5Bearing Type: Straight Roller BearingSKU: 83-10301-70-1Caster Weight: 55 lbs -
10×3 Mold On Rubber Spring Loaded Swivel Caster
$650.00 – $1,950.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 83Capacity: 1000
SKU: 83-10309-70-110x3 Mold On Rubber Spring Loaded Swivel Caster
Product Type: CasterSeries: 83Capacity: 1000Wheel Material: Mold On RubberWheel Configuration: Single WheelWheel Width: 3Wheel Diameter: 10Caster Style: Swivel CasterCaster Type: Spring LoadedOverall Height: 14.5Swivel Radius: 9.62Swivel Lead: 4.5Top Plate Size: 6 x 7.5Bolt Hole Pattern: 4.5 x 6Bolt Size: 0.5Bearing Type: Precision Tapered BearingSKU: 83-10309-70-1Caster Weight: 55 lbs -
10×3 Mold On Rubber Spring Loaded Swivel Caster
Series: 84Capacity: 1000
SKU: 84-10301-70-110x3 Mold On Rubber Spring Loaded Swivel Caster
Product Type: CasterSeries: 84Capacity: 1000Wheel Material: Mold On RubberWheel Configuration: Single WheelWheel Width: 3Wheel Diameter: 10Caster Style: Swivel CasterCaster Type: Spring LoadedOverall Height: 13.5Swivel Radius: 9.12Swivel Lead: 4Top Plate Size: 6 x 7.5Bolt Hole Pattern: 4.5 x 6Bolt Size: 0.5Bearing Type: Straight Roller BearingSKU: 84-10301-70-1Caster Weight: 60 lbs -
10×3 Mold On Rubber Spring Loaded Swivel Caster
Series: 84Capacity: 1000
SKU: 84-10309-70-110x3 Mold On Rubber Spring Loaded Swivel Caster
Product Type: CasterSeries: 84Capacity: 1000Wheel Material: Mold On RubberWheel Configuration: Single WheelWheel Width: 3Wheel Diameter: 10Caster Style: Swivel CasterCaster Type: Spring LoadedOverall Height: 13.5Swivel Radius: 9.12Swivel Lead: 4Top Plate Size: 6 x 7.5Bolt Hole Pattern: 4.5 x 6Bolt Size: 0.5Bearing Type: Precision Tapered BearingSKU: 84-10309-70-1Caster Weight: 60 lbs -
10×3 Phenolic Resin Spring Loaded Swivel Caster
Series: 84Capacity: 2500
SKU: 84-10301-30-110x3 Phenolic Resin Spring Loaded Swivel Caster
Product Type: CasterSeries: 84Capacity: 2500Wheel Material: Phenolic ResinWheel Configuration: Single WheelWheel Width: 3Wheel Diameter: 10Caster Style: Swivel CasterCaster Type: Spring LoadedOverall Height: 13.5Swivel Radius: 9.12Swivel Lead: 4Top Plate Size: 6 x 7.5Bolt Hole Pattern: 4.5 x 6Bolt Size: 0.5Bearing Type: Straight Roller BearingSKU: 84-10301-30-1Caster Weight: 46 lbs -
10×3 Phenolic Resin Spring Loaded Swivel Caster
Series: 84Capacity: 2500
SKU: 84-10309-30-110x3 Phenolic Resin Spring Loaded Swivel Caster
Product Type: CasterSeries: 84Capacity: 2500Wheel Material: Phenolic ResinWheel Configuration: Single WheelWheel Width: 3Wheel Diameter: 10Caster Style: Swivel CasterCaster Type: Spring LoadedOverall Height: 13.5Swivel Radius: 9.12Swivel Lead: 4Top Plate Size: 6 x 7.5Bolt Hole Pattern: 4.5 x 6Bolt Size: 0.5Bearing Type: Precision Tapered BearingSKU: 84-10309-30-1Caster Weight: 46 lbs
