Super Heavy Duty Casters
Super Heavy Duty Casters
For high-capacity casters designed to handle loads of 17,000 pounds up to 50,000 lbs. (we’ve even built casters that can carry 100,000 lbs.) look to the Super Heavy Duty line of casters from Caster Concepts.
When considering a super heavy-duty caster, there are a few considerations besides the typical ones (flooring, environment, towing speeds, duty cycle, etc.) to keep in mind to handle this kind of weight.
The first is the bearing you will need. Heavier loads typically require a tapered bearing compared to a ball bearing or a roller bearing. Tapered bearings allow for the protection of excessive side thrust loads.
Another consideration is whether you should include leg ties in your configuration. Leg ties offer extra stability with heavier loads, especially in transportation where there is vibration.
Kingpin or Kingpinless caster? With these weight capacities, we recommend a kingpinless caster. The main advantage of a kingpinless caster is that a kingpin industrial caster is susceptible to shearing, while a kingpinless heavy duty caster is not.
Heavier loads also require larger industrial caster wheels to support the weight. The drawback is, of course, increased overhead height on the caster-configured cart. To remedy this, a dual wheel with a smaller diameter can accommodate the weight and keep the height to a minimum.
An excellent example of our Super Heavy Duty Casters is our 99 Series industrial caster – which can range from 10 to 22 inches in diameter and is available in single- or dual-wheel configurations. The 99 series features a dual load race design, which assures smooth rotation of the caster, and superior load capacity on any surface and under the most extreme weight conditions.

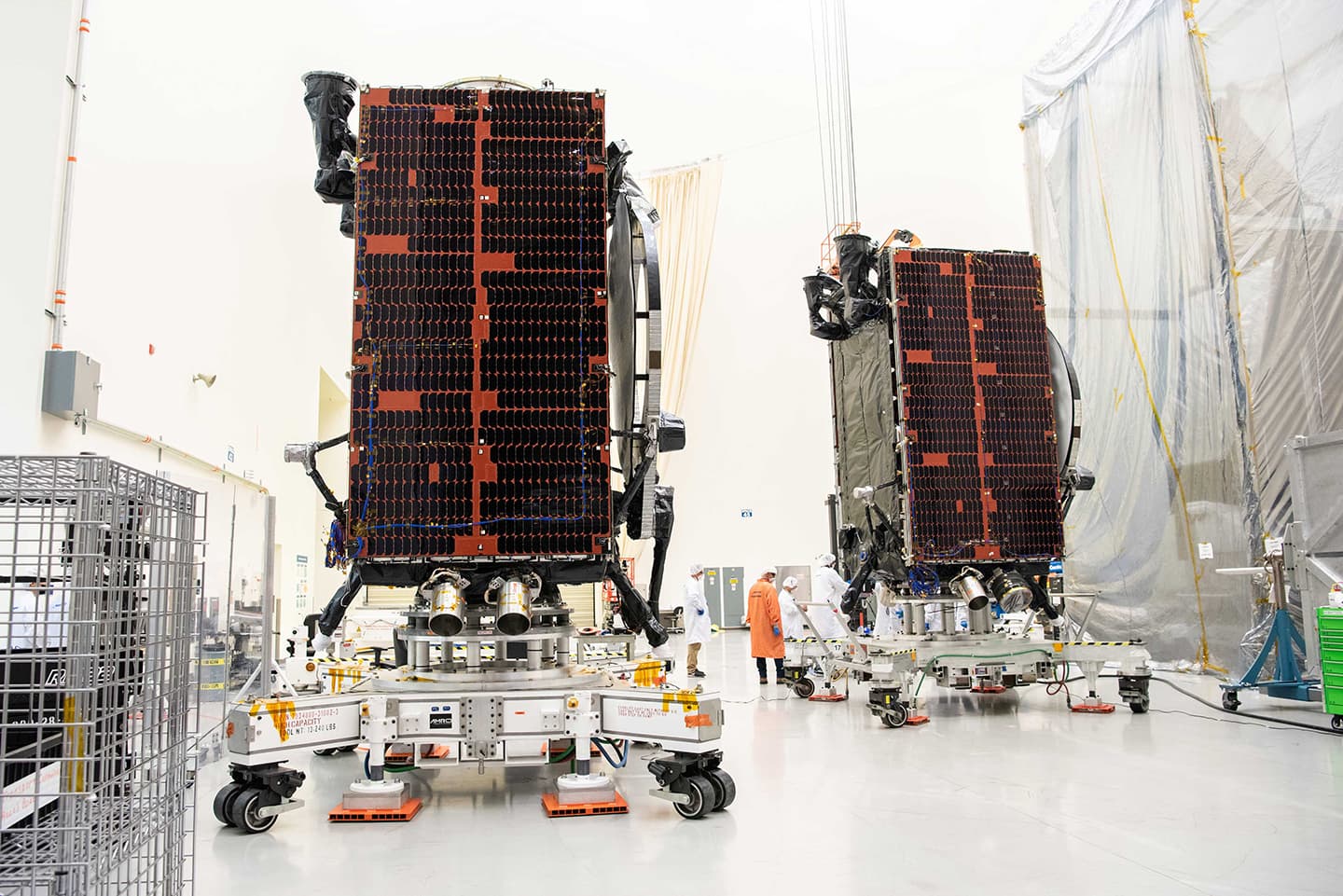

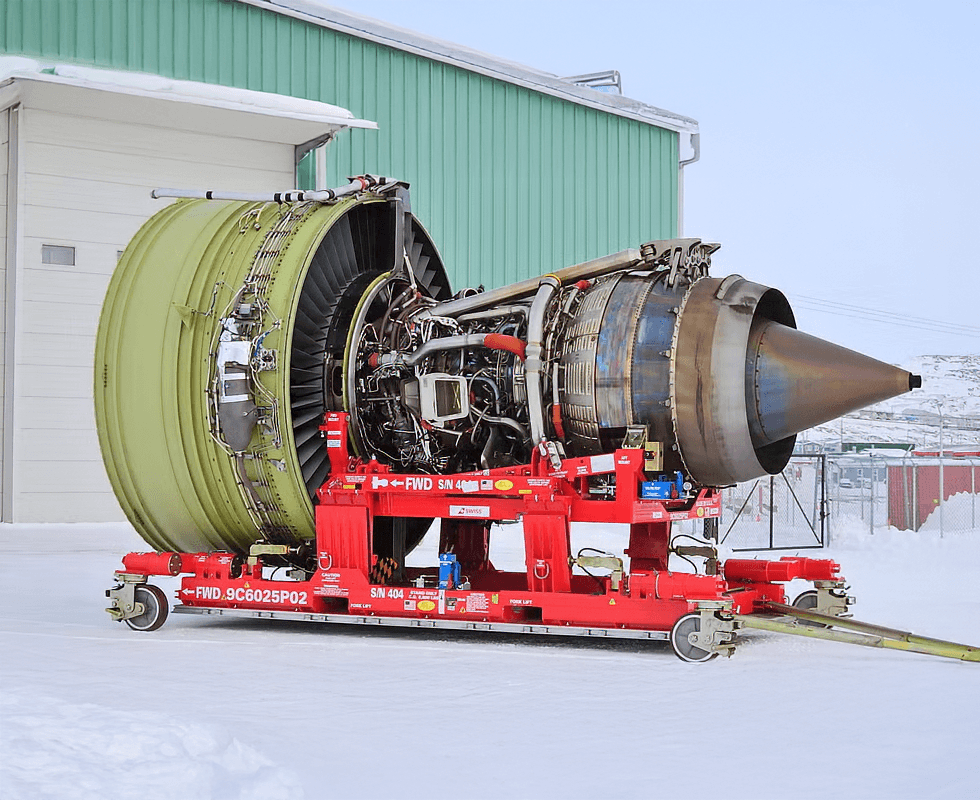

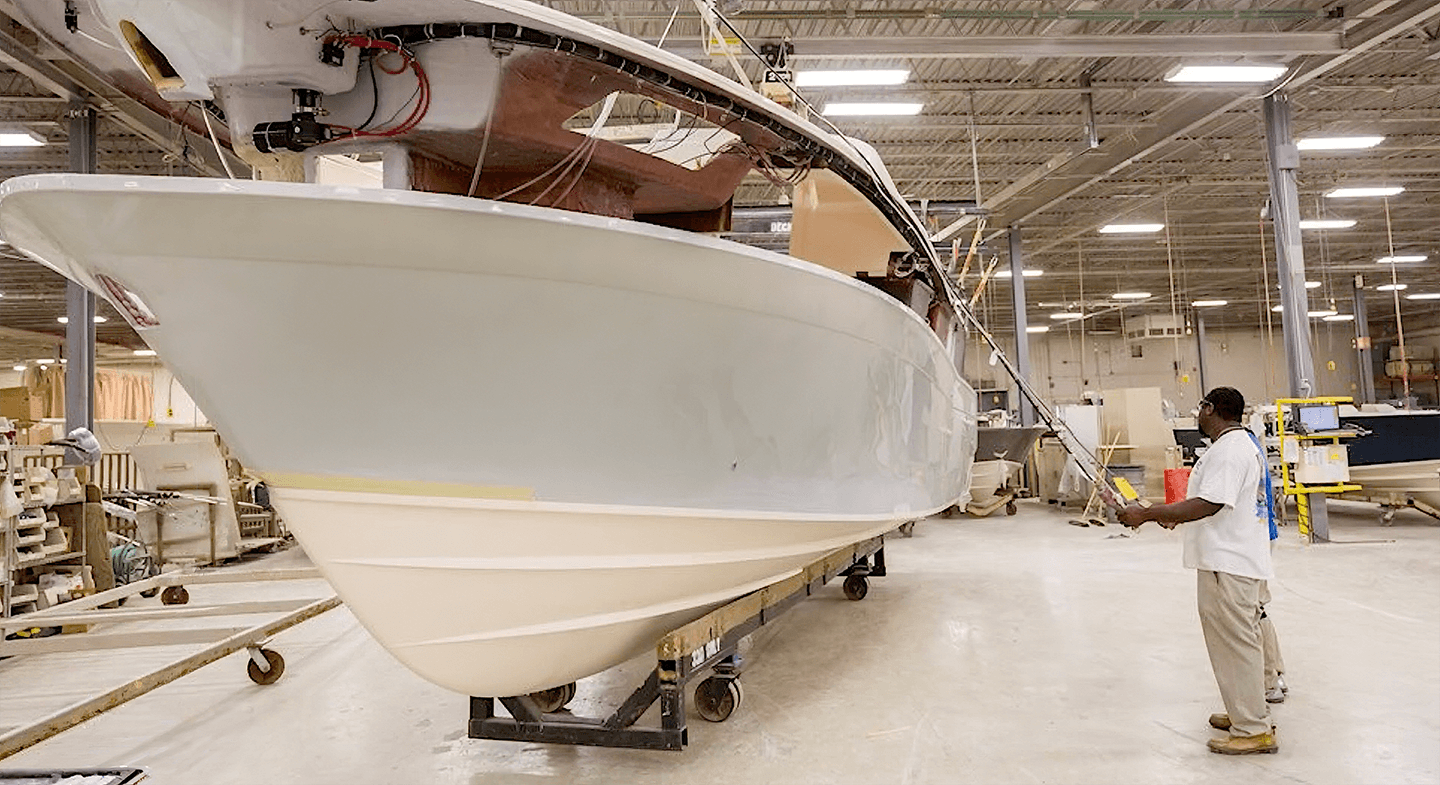

Fully customizable to meet any need, preference, or specification, you’ll find the 99 Series in robust applications such as die handling, marine and automotive, as well as aerospace and aircraft ground support equipment.
To help you through the decision process, use the Find Your Caster menu to help you define which caster is right for your application. You can shop our selection of casters by material, wheel type, top plate, weight, and wheel diameter.
Showing 1–12 of 30 results
-
10×4 Dual Wheel H.D. Forged Steel Swivel Caster
Series: 91Capacity: 20000 lbs.
SKU: 2-91-10409-21-110x4 Dual Wheel H.D. Forged Steel Swivel Caster
Product Type: CasterSeries: 91Capacity: 20000 lbs.Wheel Material: H.D. Forged SteelWheel Configuration: Dual WheelWheel Width: 4"Wheel Diameter: 10"Caster Style: Swivel CasterCaster Type: KingpinlessOverall Height: 13.5"Swivel Radius: 8.76"Swivel Lead: 2.5"Top Plate Size: 8.5 x 8.5Bolt Hole Pattern: 7 x 7Bolt Size: 0.625"Bearing Type: Precision Tapered BearingSKU: 2-91-10409-21-1Caster Weight: 140 lbs. -
10×4 Dual Wheel H.D. Forged Steel Swivel Caster
$5,200.00 – $19,500.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 99Capacity: 35000 lbs.
SKU: 2-99-10401-21-110x4 Dual Wheel H.D. Forged Steel Swivel Caster
Product Type: CasterSeries: 99Capacity: 35000 lbs.Wheel Material: H.D. Forged SteelWheel Configuration: Dual WheelWheel Width: 4"Wheel Diameter: 10"Caster Style: Swivel CasterCaster Type: KingpinOverall Height: 14.5"Swivel Lead: 3"Top Plate Size: 14 x 14Bolt Hole Pattern: 12 x 12Bolt Size: 0.75"Bearing Type: Straight Roller BearingSKU: 2-99-10401-21-1Caster Weight: 255 lbs. -
10×4 Dual Wheel H.D. Forged Steel Swivel Caster
Series: 96Capacity: 17000 lbs.
SKU: 96-10409-21-110x4 Dual Wheel H.D. Forged Steel Swivel Caster
Product Type: CasterSeries: 96Capacity: 17000 lbs.Wheel Material: H.D. Forged SteelWheel Configuration: Dual WheelWheel Width: 4"Wheel Diameter: 10"Caster Style: Swivel CasterCaster Type: KingpinOverall Height: 13"Swivel Radius: 8.76"Swivel Lead: 2.5"Top Plate Size: 8.5 x 8.5Bolt Hole Pattern: 7 x 7Bolt Size: 0.625"Bearing Type: Precision Tapered BearingSKU: 96-10409-21-1Caster Weight: 140 lbs. -
10×4 H.D. Forged Steel Swivel Caster
Series: 91Capacity: 20000 lbs.
SKU: 91-10409-21-110x4 H.D. Forged Steel Swivel Caster
Product Type: CasterSeries: 91Capacity: 20000 lbs.Wheel Material: H.D. Forged SteelWheel Configuration: Single WheelWheel Width: 4"Wheel Diameter: 10"Caster Style: Swivel CasterCaster Type: KingpinlessOverall Height: 13"Swivel Radius: 7.76"Swivel Lead: 2.5"Top Plate Size: 8.5 x 8.5Bolt Hole Pattern: 7 x 7Bolt Size: 0.625"Bearing Type: Precision Tapered BearingSKU: 91-10409-21-1Caster Weight: 83 lbs. -
12×5 Dual Wheel Ductile Iron Swivel Caster
$5,200.00 – $19,500.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 99Capacity: 35000 lbs.
SKU: 2-99-12501-12-112x5 Dual Wheel Ductile Iron Swivel Caster
Product Type: CasterSeries: 99Capacity: 35000 lbs.Wheel Material: Ductile IronWheel Configuration: Dual WheelWheel Width: 5"Wheel Diameter: 12"Caster Style: Swivel CasterCaster Type: KingpinOverall Height: 16.5"Swivel Lead: 3"Top Plate Size: 14 x 14Bolt Hole Pattern: 12 x 12Bolt Size: 0.75"Bearing Type: Straight Roller BearingSKU: 2-99-12501-12-1Caster Weight: 436 lbs. -
12×5 Ductile Iron Swivel Caster
$5,200.00 – $19,500.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 99Capacity: 18000 lbs.
SKU: 99-12501-12-112x5 Ductile Iron Swivel Caster
Product Type: CasterSeries: 99Capacity: 18000 lbs.Wheel Material: Ductile IronWheel Configuration: Single WheelWheel Width: 5"Wheel Diameter: 12"Caster Style: Swivel CasterCaster Type: KingpinOverall Height: 16.5"Swivel Radius: 9.34"Swivel Lead: 3"Top Plate Size: 14 x 14Bolt Hole Pattern: 12 x 12Bolt Size: 0.75"Bearing Type: Straight Roller BearingSKU: 99-12501-12-1Caster Weight: 291 lbs. -
16×5 Dual Wheel H.D. Hard Polyurethane (70D) Swivel Caster
Series: 91Capacity: 18,000 lbs.
SKU: 2-91-16509-67-116x5 Dual Wheel H.D. Hard Polyurethane (70D) Swivel Caster
Product Type: CasterSeries: 91Capacity: 18,000 lbs.Wheel Material: H.D. Hard Polyurethane (70D)Wheel Configuration: Dual WheelWheel Width: 5"Wheel Diameter: 16"Caster Style: Swivel CasterCaster Type: KingpinlessOverall Height: 19.75"Swivel Radius: 13.21"Swivel Lead: 4"Top Plate Size: 8.5 x 8.5Bolt Hole Pattern: 7 x 7Bolt Size: 0.625"Bearing Type: Precision Tapered BearingSKU: 2-91-16509-67-1Caster Weight: 200 lbs. -
18×5 Dual Wheel H.D. Hard Polyurethane (70D) Swivel Caster
Series: 91Capacity: 18000 lbs.
SKU: 2-91-18509-67-118x5 Dual Wheel H.D. Hard Polyurethane (70D) Swivel Caster
Product Type: CasterSeries: 91Capacity: 18000 lbs.Wheel Material: H.D. Hard Polyurethane (70D)Wheel Configuration: Dual WheelWheel Type: PolyurethaneWheel Width: 5"Wheel Diameter: 18"Caster Style: Swivel CasterCaster Type: KingpinlessOverall Height: 21.75"Swivel Radius: 14.12"Swivel Lead: 4"Top Plate Size: 8.5 x 8.5Bolt Hole Pattern: 7 x 7Bolt Size: 0.625"Bearing Type: Precision Tapered BearingSKU: 2-91-18509-67-1Caster Weight: 220 lbs. -
18×5 Dual Wheel H.D. Hard Polyurethane (70D) Swivel Caster
Series: 96Capacity: 17000 lbs.
SKU: 96-18509-67-118x5 Dual Wheel H.D. Hard Polyurethane (70D) Swivel Caster
Product Type: CasterSeries: 96Capacity: 17000 lbs.Wheel Material: H.D. Hard Polyurethane (70D)Wheel Configuration: Dual WheelWheel Type: PolyurethaneWheel Width: 5"Wheel Diameter: 18"Caster Style: Swivel CasterCaster Type: KingpinOverall Height: 23"Swivel Radius: 14.13"Swivel Lead: 4"Top Plate Size: 8.5 x 8.5Bolt Hole Pattern: 7 x 7Bolt Size: 0.625"Bearing Type: Precision Tapered BearingSKU: 96-18509-67-1Caster Weight: 220 lbs. -
18×5 Dual Wheel H.D. Standard Polyurethane Swivel Caster
Series: 91Capacity: 17000 lbs.
SKU: 2-91-18509-65-118x5 Dual Wheel H.D. Standard Polyurethane Swivel Caster
Product Type: CasterSeries: 91Capacity: 17000 lbs.Wheel Material: H.D. Standard PolyurethaneWheel Configuration: Dual WheelWheel Type: PolyurethaneWheel Width: 5"Wheel Diameter: 18"Caster Style: Swivel CasterCaster Type: KingpinlessOverall Height: 21.75"Swivel Radius: 14.12"Swivel Lead: 4"Top Plate Size: 8.5 x 8.5Bolt Hole Pattern: 7 x 7Bolt Size: 0.625"Bearing Type: Precision Tapered BearingSKU: 2-91-18509-65-1Caster Weight: 220 lbs. -
18×5 Dual Wheel H.D. Standard Polyurethane Swivel Caster
Series: 96Capacity: 17000 lbs.
SKU: 96-18509-65-118x5 Dual Wheel H.D. Standard Polyurethane Swivel Caster
Product Type: CasterSeries: 96Capacity: 17000 lbs.Wheel Material: H.D. Standard PolyurethaneWheel Configuration: Dual WheelWheel Type: PolyurethaneWheel Width: 5"Wheel Diameter: 18"Caster Style: Swivel CasterCaster Type: KingpinOverall Height: 23"Swivel Radius: 14.13"Swivel Lead: 4"Top Plate Size: 8.5 x 8.5Bolt Hole Pattern: 7 x 7Bolt Size: 0.625"Bearing Type: Precision Tapered BearingSKU: 96-18509-65-1Caster Weight: 220 lbs. -
18×5 H.D. Standard Polyurethane Spring Loaded Swivel Caster
Series: 103Capacity: 20000 lbs.
SKU: 103-18509-65-118x5 H.D. Standard Polyurethane Spring Loaded Swivel Caster
Product Type: CasterSeries: 103Capacity: 20000 lbs.Wheel Material: H.D. Standard PolyurethaneWheel Configuration: Single WheelWheel Type: PolyurethaneWheel Width: 5"Wheel Diameter: 18"Caster Style: Swivel CasterCaster Type: Spring LoadedOverall Height: 25.5"Swivel Lead: 4.5"Top Plate Size: 8.5 x 8.5Bolt Hole Pattern: 7 x 7Bolt Size: 0.625"Bearing Type: Precision Tapered BearingSKU: 103-18509-65-1Caster Weight: 400 lbs.
