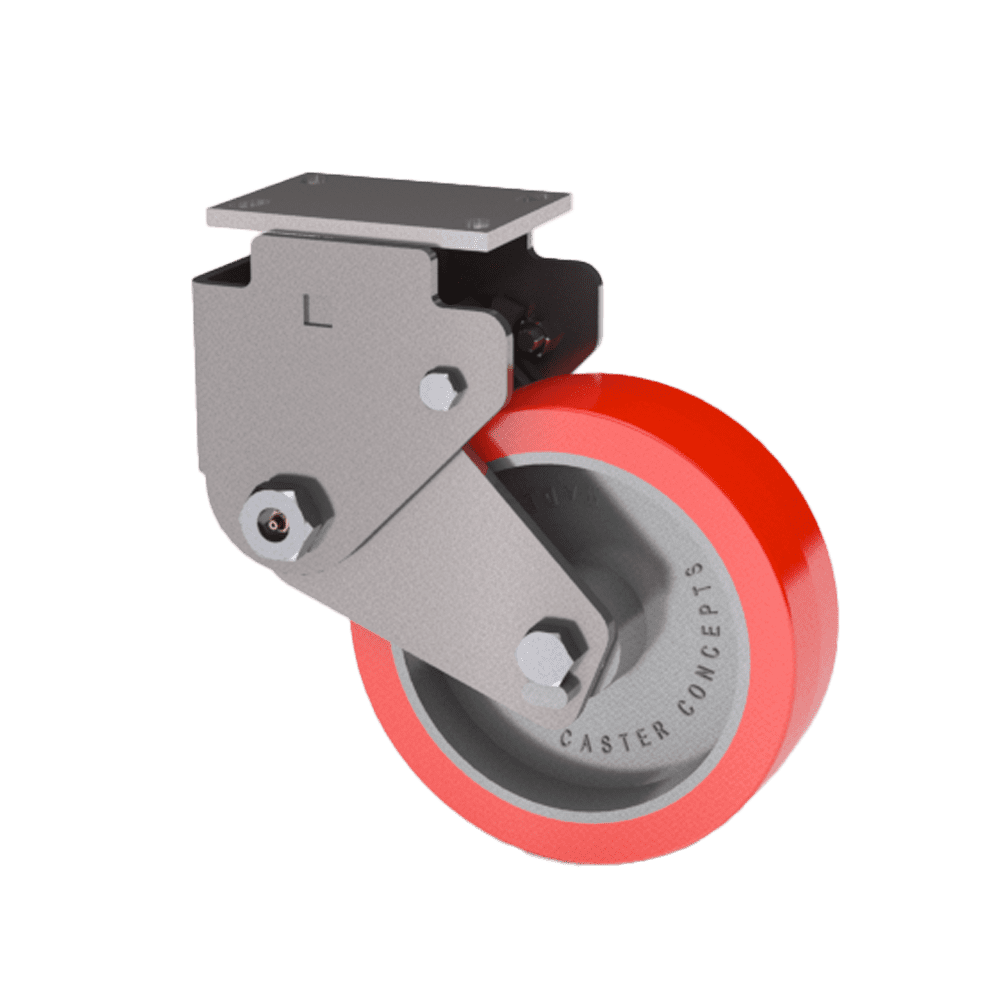

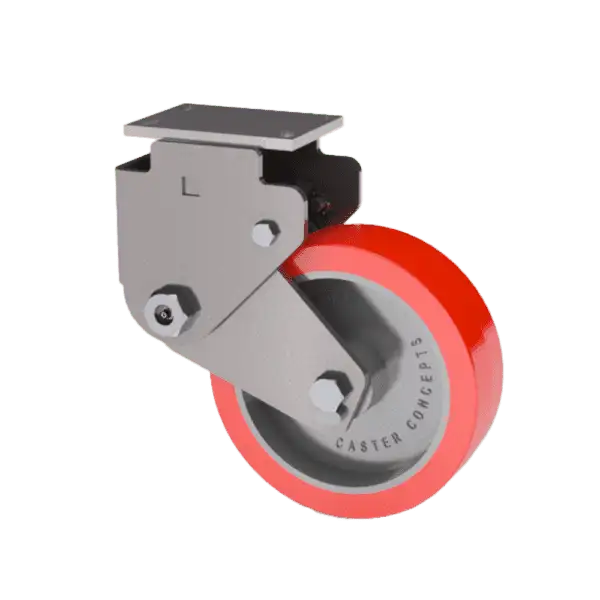

Picture may not be an exact representation of actual product*
10×3 H.D. T/R Polyurethane Spring Loaded Rigid Caster
SKU: 83-10309-66-2
Load rating of 1700 lbs.
Overall height of 14.5 inches
T/R 85A PU Wheel - 1" Thick tread, industrial strength with a softer touch, high tear and debris resistance, moderate solvent and oil resistance. (Shore 85A Hardness)
$650.00 – $1,950.00Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions. Price range does not include options or accessories*
10×3 H.D. T/R Polyurethane Spring Loaded Rigid Caster
NOTICE: You must be logged in to download a CAD Model.
You can create an account or login using the links below. Once you're logged in we'll bring you back here.
Specifications
Product Type: Caster
Series: 83
Capacity: 1700 lbs.
Caster Material: Steel
Wheel Material: H.D. T/R Polyurethane
Wheel Configuration: Single Wheel
Wheel Type: Polyurethane
Wheel Width: 3.00"
Wheel Diameter: 10.00"
Caster Style: Rigid Caster
Caster Type: Spring Loaded
Overall Height: 14.50"
*Temperature Range (Continuous): -50 to 200°F
*Temperature Range (Intermittent): -50 to 175°F
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Precision Tapered Bearing
SKU: 83-10309-66-2
Caster Weight: 50 lbs.
*High temperature grease must be used over 200°F
Product Description
This 10-inch by 3-inch 83 series Spring-Loaded caster is designed to absorb shocks and reduce noise, these fixed casters excel on uneven surfaces and protect delicate loads. Our expert engineers determine the ideal spring deflection, ensuring reliable performance without causing damage. Built with high-strength chrome vanadium springs, they offer durability and cushioned loads, while the long swivel lead minimizes vibration during towing.
Combined with our 1-inch thick tread, T/R 85A polyurethane wheel, this caster is a versatile solution that brings industrial-strength performance with a softer touch. This specialized formulation is engineered for easy and quiet rolling, making it an ideal choice for a wide range of applications. With its high tear and debris resistance, this wheel ensures exceptional durability and longevity. While offering moderate solvent and oil resistance, it is important to note its lack of water resistance and unsuitability for hot and humid environments due to the risk of microbial attack. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 1700 lbs.
