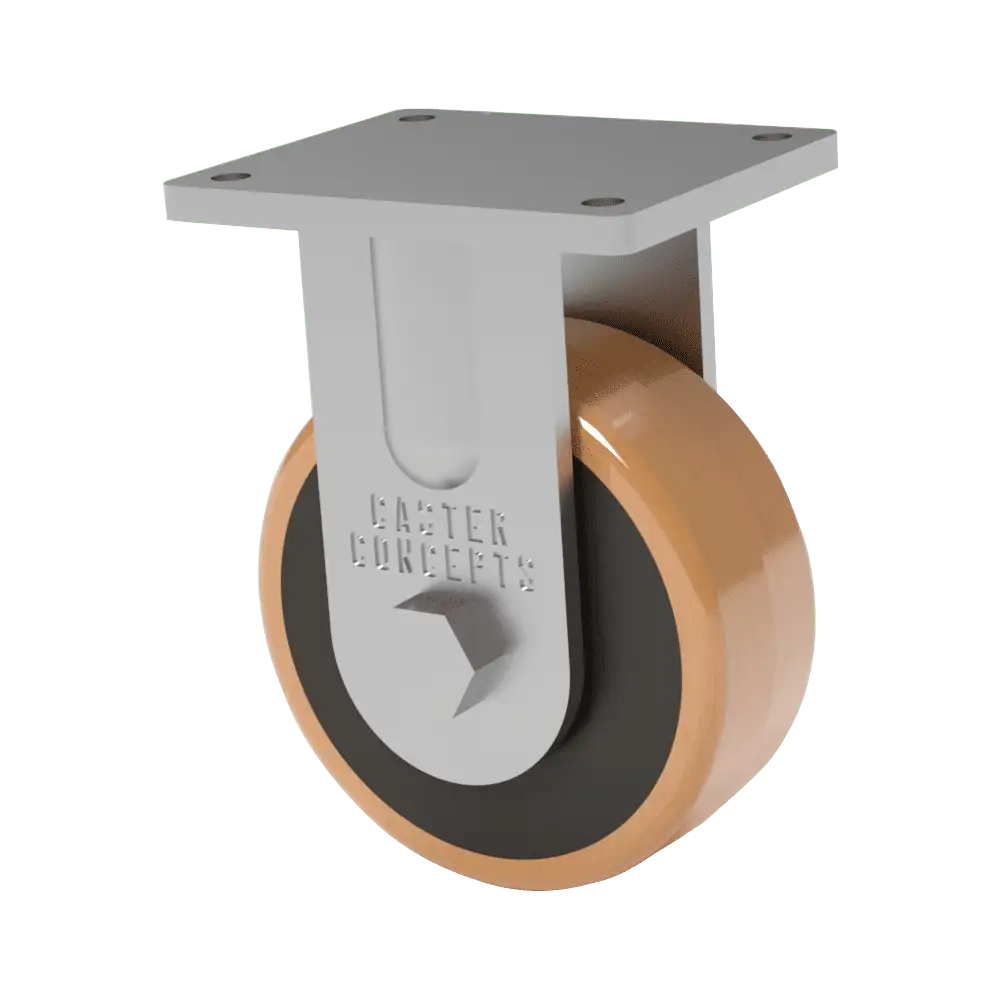

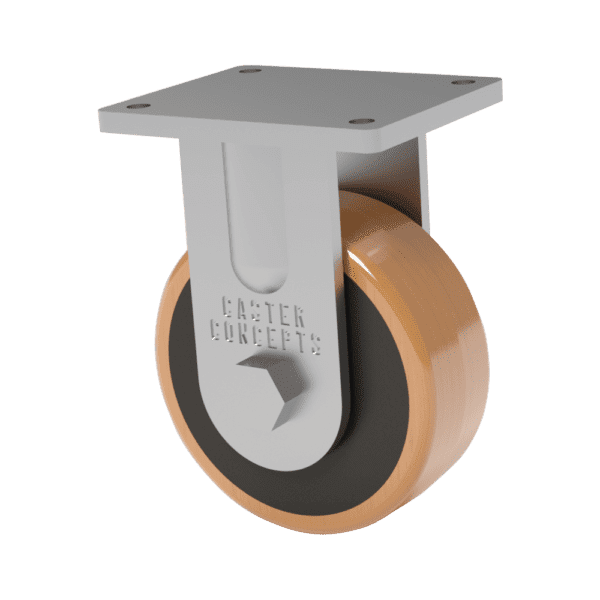

8×3 Laminated Phenolic Rigid Caster

SKU: 80-08301-35-2
  • Load rating of 3000 lbs.
  • Overall height of 10.5 inches
  • Laminated Phenolic - Wheel made from layers of phenolic resin, offering high load capacity, impact resistance, and resistance to chemicals and solvents.

$390.00$975.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , Tag:


Specifications

Product Type: Caster
Series: 80
Capacity: 3,000 lbs.
Caster Material: Steel
Wheel Material: Laminated Phenolic
Wheel Configuration: Single Wheel
Wheel Width: 3"
Wheel Diameter: 8"
Caster Style: Rigid Caster
Overall Height: 10.5"
*Temperature Range (Continuous): -50 to 300°F
*Temperature Range (Intermittent): -50 to 300°F
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Straight Roller Bearing
SKU: 80-08301-35-2
Caster Weight: 32 lbs.
*High temperature grease must be used over 200°F

Product Description

This 8-inch by 3-inch 80 series extra heavy duty caster, is meticulously engineered to withstand the most abusive applications. The laser-cut formed legs provide additional strength, making them ideal for applications with side loading or skidding. Components are heat treated to achieve a hardness of 40 + 2 Rc. With exceptional strength and reliable construction, these fixed 80 Series Extra Heavy Duty Casters are the perfect choice for rugged industrial applications.

Laminated Phenolic Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 3000 lbs.

Description

This 8-inch by 3-inch 80 series extra heavy duty caster, is meticulously engineered to withstand the most abusive applications. The laser-cut formed legs provide additional strength, making them ideal for applications with side loading or skidding. Components are heat treated to achieve a hardness of 40 + 2 Rc. With exceptional strength and reliable construction, these fixed 80 Series Extra Heavy Duty Casters are the perfect choice for rugged industrial applications.

Laminated Phenolic Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 3000 lbs.

Additional information

Weight 32 lbs
