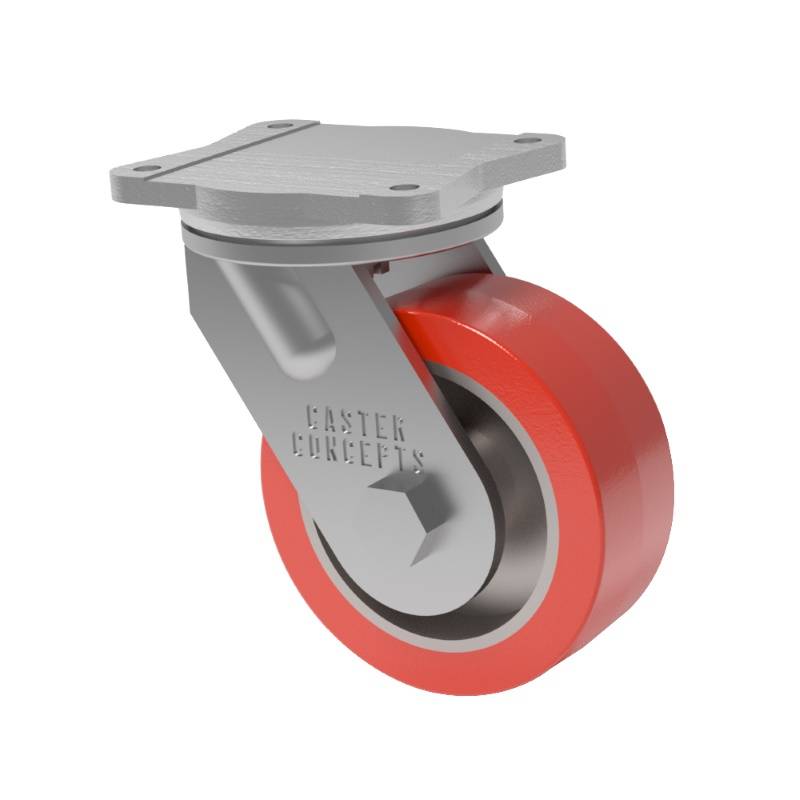

8×3 H.D. T/R Polyurethane Swivel Caster

SKU: 85-08301-66-1
  • Load rating of 2500 lbs.
  • Overall height of 10.5 inches
  • T/R 85A PU Wheel - 1" Thick tread, industrial strength with a softer touch, high tear and debris resistance, moderate solvent and oil resistance. (Shore 85A Hardness)

$517.02$724.94 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 85
Capacity: 2,500 lbs.
Caster Material: Steel
Wheel Material: H.D. T/R Polyurethane
Wheel Configuration: Single Wheel
Wheel Width: 3"
Wheel Diameter: 8"
Caster Style: Swivel Caster
Caster Type: Kingpin
Overall Height: 10.5"
Swivel Radius: 6.67"
Swivel Lead: 2.5"
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Straight Roller Bearing
SKU: 85-08301-66-1
Caster Weight: 45 lbs.

Product Description

This 8-inch by 3-inch 85 series caster sets the standard for durability and precision with its high-quality construction. The yoke and top plate are forged through a drop forged process using C-1045 steel, ensuring exceptional strength and reliability. The kingpin is an integral component of the top plate, providing seamless integration. The top plate is machined to incorporate the raceway, while the threaded kingpin and yoke base raceway are machined to a 5-inch diameter. Although the raceway is not heat treated, a precision tapered load bearing (with dimensions of 3.875 inch ID x 5.00 inch OD) is positioned between the top plate and yoke base, enhancing precision and load-bearing capacity. To complete the assembly, a 1.25-inch precision tapered thrust bearing is pressed over the kingpin, engaging the yoke. This meticulous design results in a swivel section with outstanding load carrying capacity for its class. The 85 Series excels in providing an exceptionally tight tolerance fit, ensuring smooth and precise movements. Moreover, the integrally forged kingpin and slotted adjusting nut significantly contribute to the strength and longevity of the swivel section, further enhancing the caster's lifespan.

Combined with our 1-inch thick tread, T/R 85A polyurethane wheel, this caster is a versatile solution that brings industrial-strength performance with a softer touch. This specialized formulation is engineered for easy and quiet rolling, making it an ideal choice for a wide range of applications. With its high tear and debris resistance, this wheel ensures exceptional durability and longevity. While offering moderate solvent and oil resistance, it is important to note its lack of water resistance and unsuitability for hot and humid environments due to the risk of microbial attack. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 2500 lbs.

Description

This 8-inch by 3-inch 85 series caster sets the standard for durability and precision with its high-quality construction. The yoke and top plate are forged through a drop forged process using C-1045 steel, ensuring exceptional strength and reliability. The kingpin is an integral component of the top plate, providing seamless integration. The top plate is machined to incorporate the raceway, while the threaded kingpin and yoke base raceway are machined to a 5-inch diameter. Although the raceway is not heat treated, a precision tapered load bearing (with dimensions of 3.875 inch ID x 5.00 inch OD) is positioned between the top plate and yoke base, enhancing precision and load-bearing capacity. To complete the assembly, a 1.25-inch precision tapered thrust bearing is pressed over the kingpin, engaging the yoke. This meticulous design results in a swivel section with outstanding load carrying capacity for its class. The 85 Series excels in providing an exceptionally tight tolerance fit, ensuring smooth and precise movements. Moreover, the integrally forged kingpin and slotted adjusting nut significantly contribute to the strength and longevity of the swivel section, further enhancing the caster’s lifespan.

Combined with our 1-inch thick tread, T/R 85A polyurethane wheel, this caster is a versatile solution that brings industrial-strength performance with a softer touch. This specialized formulation is engineered for easy and quiet rolling, making it an ideal choice for a wide range of applications. With its high tear and debris resistance, this wheel ensures exceptional durability and longevity. While offering moderate solvent and oil resistance, it is important to note its lack of water resistance and unsuitability for hot and humid environments due to the risk of microbial attack. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 2500 lbs.

Additional information

Weight 45 lbs
