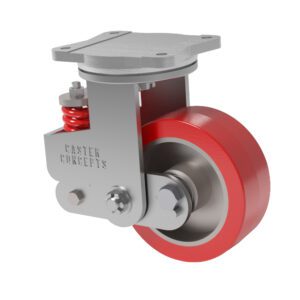

Picture may not be an exact representation of actual product*
8×3 H.D. T/R Polyurethane Spring Loaded Rigid Caster
SKU: 84-08309-66-2
Load rating of 2500 lbs.
Overall height of 11.5 inches
T/R 85A PU Wheel - 1" Thick tread, industrial strength with a softer touch, high tear and debris resistance, moderate solvent and oil resistance. (Shore 85A Hardness)
8×3 H.D. T/R Polyurethane Spring Loaded Rigid Caster
NOTICE: You must be logged in to download a CAD Model.
You can create an account or login using the links below. Once you're logged in we'll bring you back here.
Specifications
Product Type: Caster
Series: 84
Capacity: 2500 lbs.
Caster Material: Steel
Wheel Material: H.D. T/R Polyurethane
Wheel Configuration: Single Wheel
Wheel Type: Polyurethane
Wheel Width: 3.00"
Wheel Diameter: 8.00"
Caster Style: Rigid Caster
Caster Type: Spring Loaded
Overall Height: 11.50"
*Temperature Range (Continuous): -50 to 200°F
*Temperature Range (Intermittent): -50 to 175°F
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Precision Tapered Bearing
SKU: 84-08309-66-2
Caster Weight: 55 lbs.
*High temperature grease must be used over 200°F
Product Description
This 8-inch by 3-inch 84 series Vertical Mounted Spring-Loaded caster provides exceptional shock absorption and vertical movement capabilities, making them perfect for navigating uneven surfaces and protecting fragile or vibration-sensitive loads. With expertly determined spring deflection, they offer optimal performance without causing harm. Crafted with high-strength chrome vanadium springs, these rigid casters ensure durability and cushioned loads.
Combined with our 1-inch thick tread, T/R 85A polyurethane wheel, this caster is a versatile solution that brings industrial-strength performance with a softer touch. This specialized formulation is engineered for easy and quiet rolling, making it an ideal choice for a wide range of applications. With its high tear and debris resistance, this wheel ensures exceptional durability and longevity. While offering moderate solvent and oil resistance, it is important to note its lack of water resistance and unsuitability for hot and humid environments due to the risk of microbial attack. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 2500 lbs.
