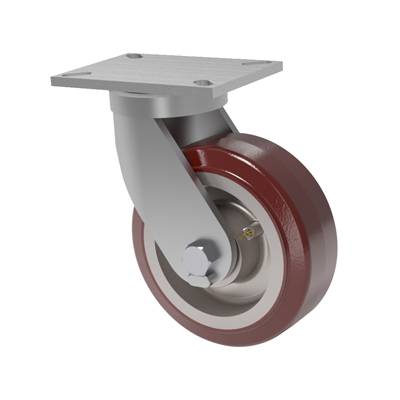

8×3 H.D. Standard Polyurethane Swivel Caster

SKU: 71-08301-65-1
  • Load rating of 3100 lbs.
  • Overall height of 10.5 inches
  • 95A Standard PU Wheel - 1" Thick tread, non-marking, high tear strength, resistance to flat spotting, good solvent and water resistance. (Shore 95A Hardness)

$343.34$572.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 71
Capacity: 3,100 lbs.
Caster Material: Steel
Wheel Material: H.D. Standard Polyurethane
Wheel Configuration: Single Wheel
Wheel Width: 3"
Wheel Diameter: 8"
Caster Style: Swivel Caster
Caster Type: Kingpinless
Overall Height: 10.5"
Swivel Radius: 6.67"
Swivel Lead: 2.5"
Top Plate Size: 5 x 7.25
Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125
Bolt Size: 0.5"
Bearing Type: Straight Roller Bearing
SKU: 71-08301-65-1
Caster Weight: 34 lbs.

Product Description

This 8-inch by 3-inch 71 series caster has the highest load capacity rating in our line-up of single ball race swivel sections. The bearings in the swivel section act as both load and thrust components and lock the swivel section together to distribute the load over a larger area.

Paired with our general-purpose, 1-inch thick tread, H.D. Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. This wheel is capable carrying loads up to 3700 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 3100 lbs.

Description

This 8-inch by 3-inch 71 series caster has the highest load capacity rating in our line-up of single ball race swivel sections. The bearings in the swivel section act as both load and thrust components and lock the swivel section together to distribute the load over a larger area.

Paired with our general-purpose, 1-inch thick tread, H.D. Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. This wheel is capable carrying loads up to 3700 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 3100 lbs.

Additional information

Weight 34 lbs
