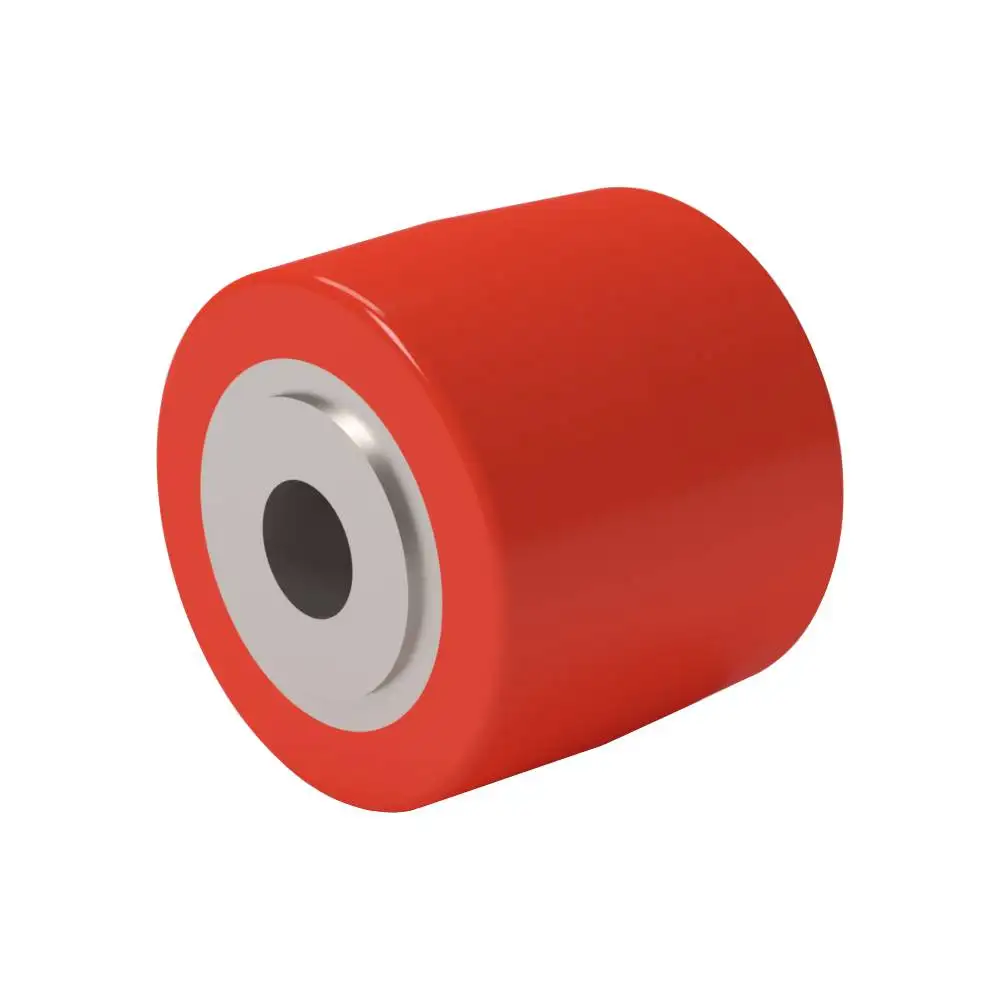

6×5 H.D. T/R Polyurethane Caster Wheel

SKU: 06509-66-20
  • Load rating of 2960 lbs.
  • T/R 85A PU Wheel - 1" Thick tread, industrial strength with a softer touch, high tear and debris resistance, moderate solvent and oil resistance. (Shore 85A Hardness)

$176.52$306.32 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*

Category:


Specifications

Product Type: Wheel
Capacity: 2960 lbs.
Wheel Material: H.D. T/R Polyurethane
Wheel Type: Polyurethane
Wheel Width: 5"
Wheel Diameter: 6"
*Temperature Range (Continuous): 0 to 180°F
*Temperature Range (Intermittent): -50 to 200°F
Bearing Type: Precision Tapered Bearing
Hub Length: 5.5
Bore: 1.25
SKU: 06509-66-20
Caster Weight: 20 lbs.
*High temperature grease must be used over 200°F

Product Description

This 6-inch by 5-inch H.D. T/R Polyurethane wheel utilizes our heavy-duty, tear-resistant T/R-85A polyurethane that offers maximum elasticity. All while maintaining a great carrying capacity of 2960 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. With precision tapered ball bearings, this wheel provides precise movement while being effective for heavy loads. They are also a great option when facing excessive thrust loading or handling high speeds.

Description

This 6-inch by 5-inch H.D. T/R Polyurethane wheel utilizes our heavy-duty, tear-resistant T/R-85A polyurethane that offers maximum elasticity. All while maintaining a great carrying capacity of 2960 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. With precision tapered ball bearings, this wheel provides precise movement while being effective for heavy loads. They are also a great option when facing excessive thrust loading or handling high speeds.

Additional information

Weight 20 lbs
