Specifications
Product Type: Caster
Series: 97
Capacity: 4,140 lbs.
Caster Material: Steel
Wheel Material: H.D. T/R-95 Polyurethane
Wheel Configuration: Single Wheel
Wheel Width: 4.00"
Wheel Diameter: 6.00"
Caster Style: Rigid Caster
Overall Height: 10.50"
*Temperature Range (Continuous): '-50 to 200°F
*Temperature Range (Intermittent): '-50 to 175°F
Top Plate Size: 8.5 x 8.5
Bolt Hole Pattern: 7 x 7
Bolt Size: 0.625"
Bearing Type: Precision Tapered Bearing
SKU: 97HD-06409-96-2
Caster Weight: lbs.
*High temperature grease must be used over 200°F
Product Description

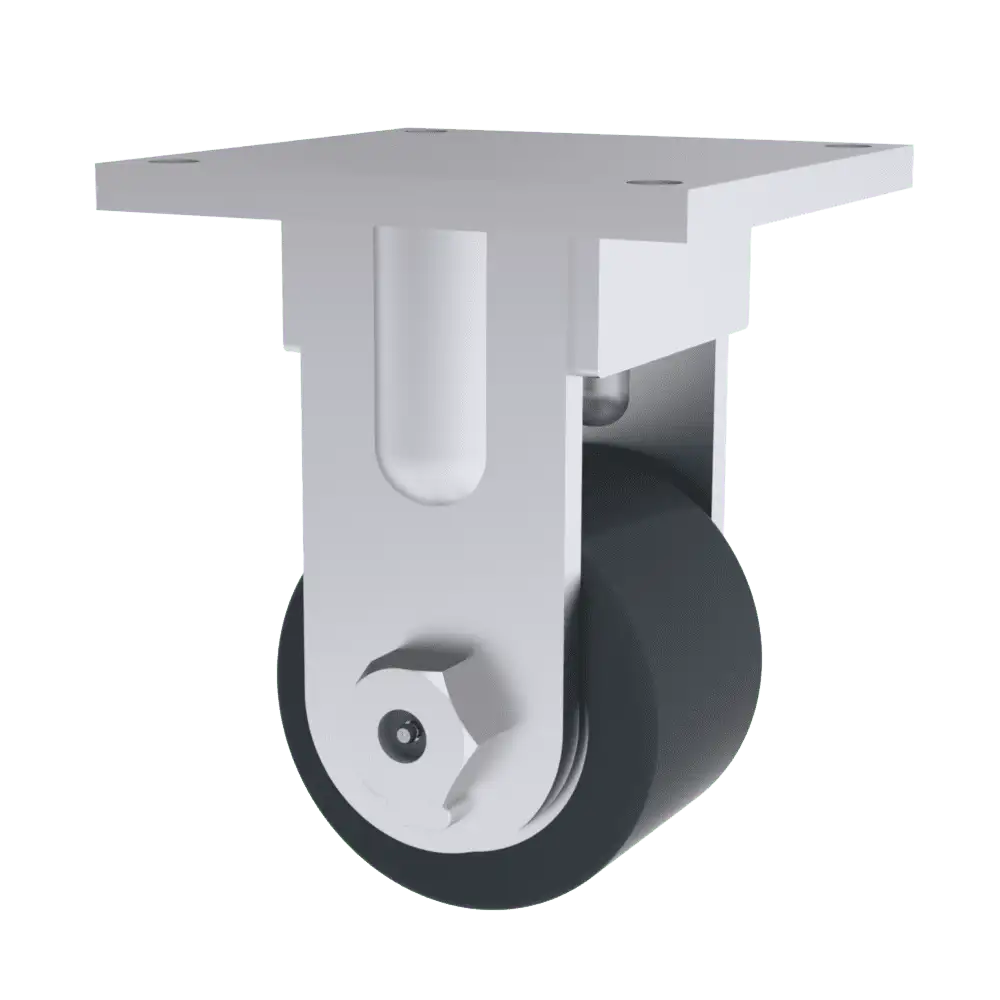

This 6-inch by 4-inch 97 Series caster, provides superior maneuverability, reducing the strain on powered carts and AGVs while offering better ease of movement. Featuring a 1/2-inch x 4-inch steel leg design, and 1-1/4-inch diameter axle, this rigid caster guarantees effortless operation.
The 1-inch thick tread, T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 4140 lbs.
This 6-inch by 4-inch 97 Series caster, provides superior maneuverability, reducing the strain on powered carts and AGVs while offering better ease of movement. Featuring a 1/2-inch x 4-inch steel leg design, and 1-1/4-inch diameter axle, this rigid caster guarantees effortless operation.
The 1-inch thick tread, T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 4140 lbs.
