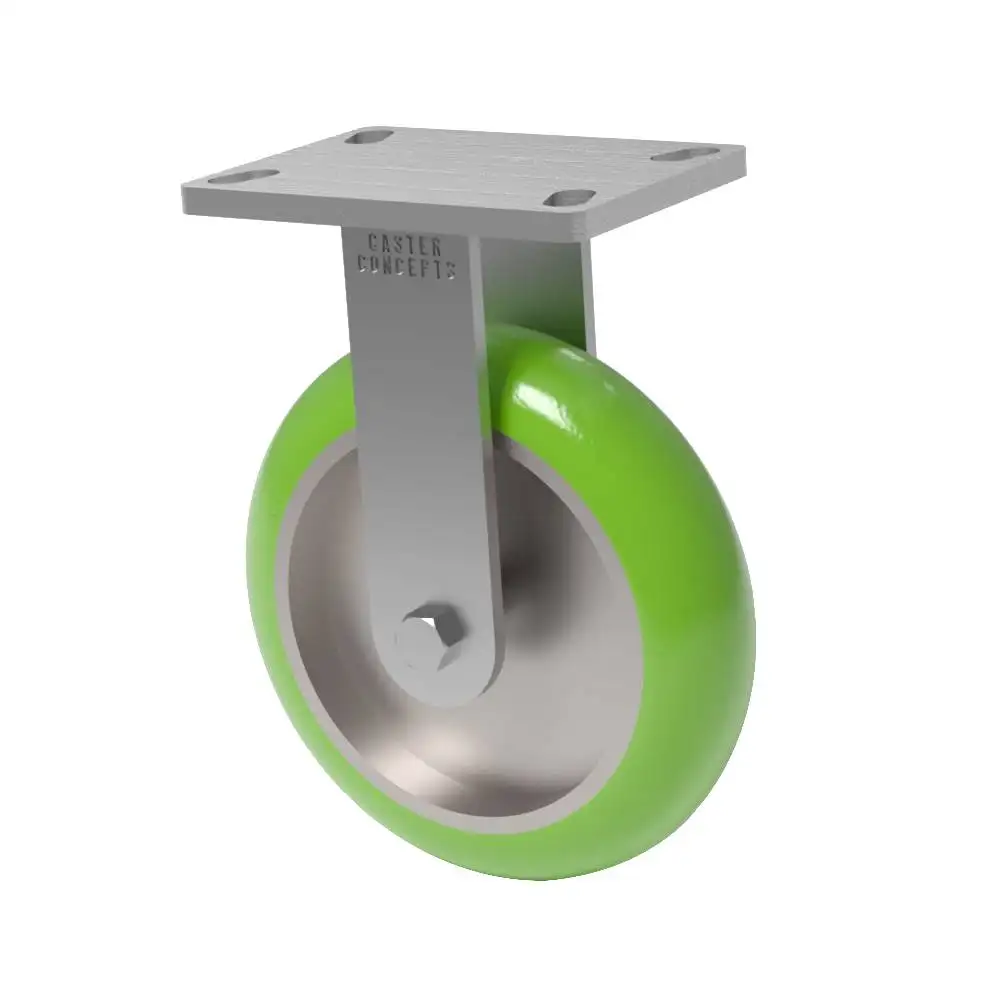

6×2 Round Tread ErgoTread Rigid Caster

SKU: 57-06202-43-2
  • Load rating of 760 lbs.
  • Overall height of 8.31 inches
  • 85A ErgoTread PU Wheel - Energy-returning, ergonomic formulation, reduces strain and risk of injuries, debris-resistant, noise-reducing. (Shore 85A Hardness)
Add to Cart
Categories: , , , , Tags:


Specifications

Product Type: Caster
Series: 57
Capacity: 760 lbs.
Caster Material: Steel
Wheel Material: ErgoTread
Wheel Configuration: Single Wheel
Wheel Type: Round Tread
Wheel Width: 2"
Wheel Diameter: 6"
Caster Style: Swivel Caster
Caster Type: Maintenance Free
Overall Height: 8.31"
Swivel Radius: 5.84"
Swivel Lead: 2.75"
Brand: ERGOXCEL
Top Plate Size: 6.25 x 4.5
Bolt Hole Pattern: 2.438 x 4.938 Slotted to 3.375 x 5.25
Bolt Size: 0.5"
Bearing Type: Precision Ball Bearing
SKU: 57-06202-43-2
Caster Weight: 12 lbs.

Product Description

This 6-inch by 2-inch 57 series caster, is engineered for exceptional performance and reduced ergonomic forces. The legs, made from 1/4" x 2" steel, are continuously welded both inside and outside the yoke base, ensuring robust construction. With a 1/2" diameter axle, this caster delivers smooth rotation and reliable operation.

The wheel utilizes our ErgoTread formulation that consists of a high-rebound, energy returning polyurethane. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 760 lbs.

Description

This 6-inch by 2-inch 57 series caster, is engineered for exceptional performance and reduced ergonomic forces. The legs, made from 1/4″ x 2″ steel, are continuously welded both inside and outside the yoke base, ensuring robust construction. With a 1/2″ diameter axle, this caster delivers smooth rotation and reliable operation.

The wheel utilizes our ErgoTread formulation that consists of a high-rebound, energy returning polyurethane. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 760 lbs.

Additional information

Weight 12 lbs
