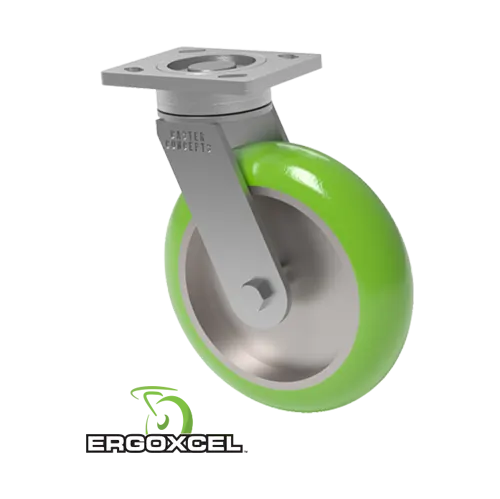

ERGOXCEL - Ergonomic Caster Wheel

Picture may not be an exact representation of actual product*

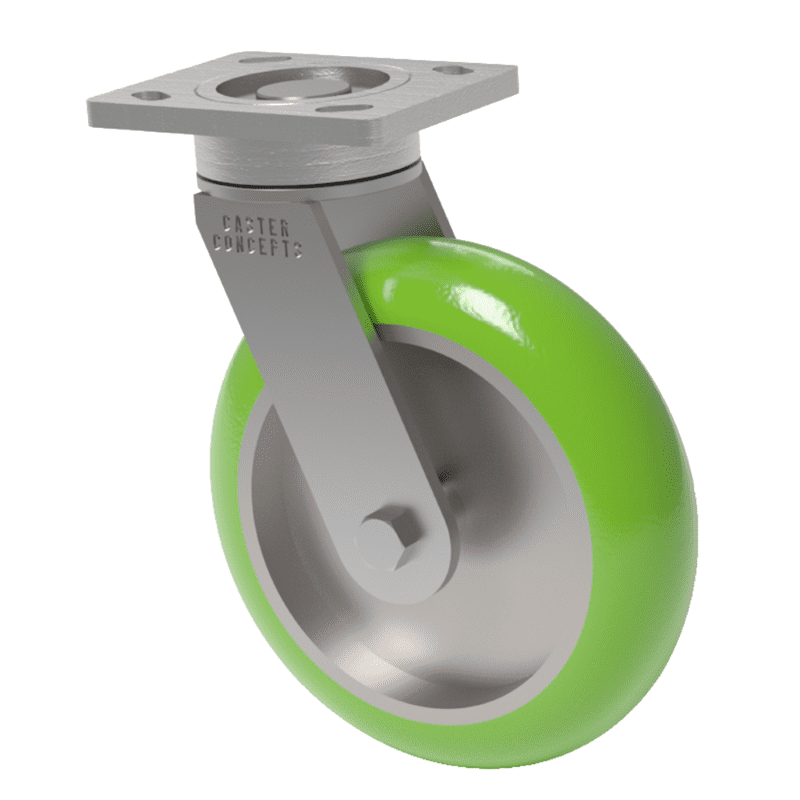

6×2 ERGOXCEL Maintenance Free Swivel Caster Overall height of 8.31 inches

SKU: 57-06202-43-1
  • Load rating of 760 lbs.
  • Overall height of 8.31 inches
  • 85A ErgoTread PU Wheel - Energy-returning, ergonomic formulation, reduces strain and risk of injuries, debris-resistant, noise-reducing. (Shore 85A Hardness)

$186.62 – $177.96 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , , Tags:


Specifications

Product Type: Caster
Series: 57
Capacity: 760 lbs.
Caster Material: Steel
Wheel Material: ErgoTread
Wheel Configuration: Single Wheel
Wheel Type: Round Tread
Wheel Width: 2"
Wheel Diameter: 6"
Caster Style: Swivel Caster
Caster Type: Maintenance Free
Overall Height: 8.31"
Swivel Radius: 5.84"
Swivel Lead: 2.75"
Brand: ERGOXCEL
Top Plate Size: 6.25 x 4.5
Bolt Hole Pattern: 2.438 x 4.938 Slotted to 3.375 x 5.25
Bolt Size: 0.5"
Bearing Type: Precision Ball Bearing
SKU: 57-06202-43-1
Caster Weight: 12 lbs.

Product Description

This 57 series caster, measuring 6 inches by 2 inches, provides a clear, support-free mix. An outstanding precision metal roller is used to make the turn portion. In order to ensure long-term durability, the bearing's raceways are sealed with neoprene, which also ensures pollution protection. It's not essential to lube. Combining a smooth turn activity with a longer lead achieves reduced ergonomic forces and fewer worker injuries.

The wheel employs our definition of ErgoTread, which includes an energy-bringing polyurethane back and a high bounce back. Thanks to its precision fixed metal rollers, the caster has a heavy-duty rating of 760 lbs., low activity, and no support needs.





Description

This 57 series caster, measuring 6 inches by 2 inches, provides a clear, support-free mix. An outstanding precision metal roller is used to make the turn portion. In order to ensure long-term durability, the bearing’s raceways are sealed with neoprene, which also ensures pollution protection. It’s not essential to lube. Combining a smooth turn activity with a longer lead achieves reduced ergonomic forces and fewer worker injuries.

The wheel employs our definition of ErgoTread, which includes an energy-bringing polyurethane back and a high bounce back. Thanks to its precision fixed metal rollers, the caster has a heavy-duty rating of 760 lbs., low activity, and no support needs.



Additional information

Weight 12 lbs
