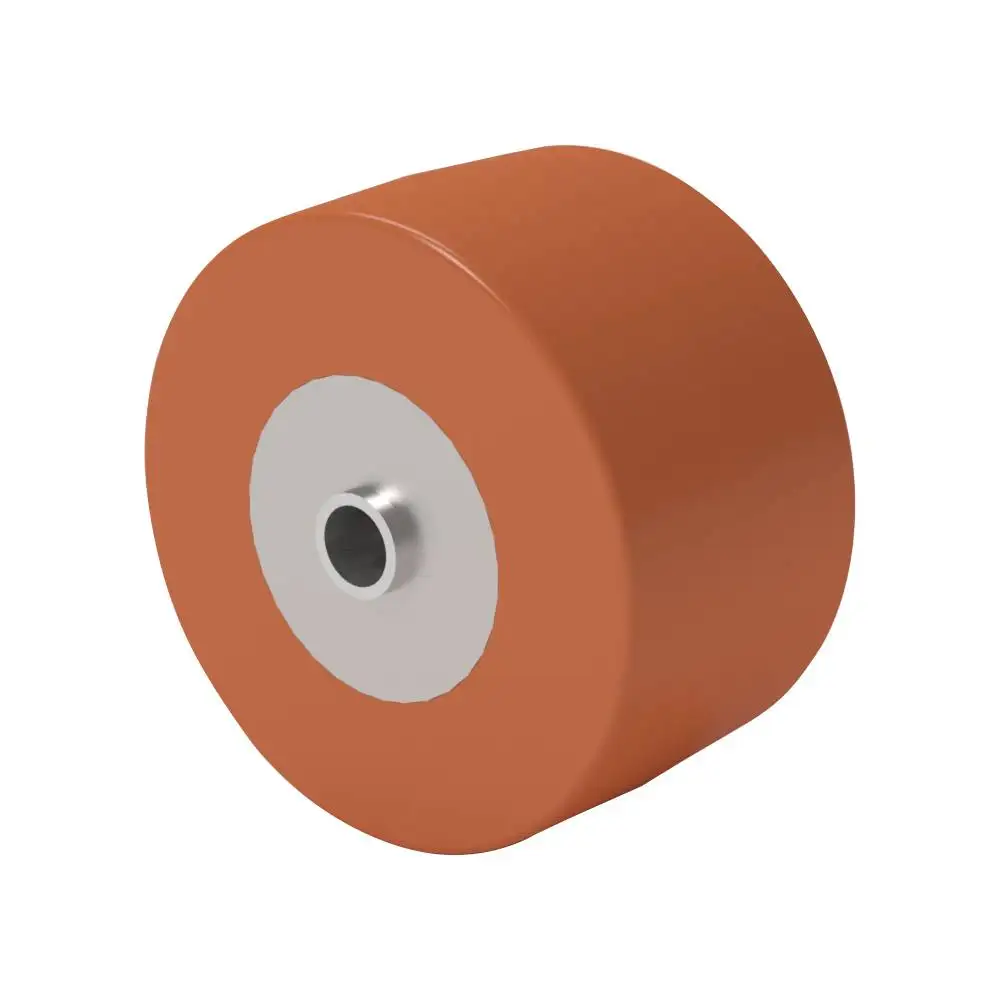

4×2 T/R-95 Polyurethane Caster Wheel
SKU: 04201-91-12
Load rating of 1000 lbs.
T/R 95A PU Wheel - High tear resistance, extended wear, ergonomic benefits, good solvent and oil resistance. (Shore 95A Hardness)
$55.23 – $207.07Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions. Price range does not include options or accessories* Engineered Casters Produced and Shipped in 4 Days
NOTICE: You must be logged in to download a CAD Model.
You can create an account or login using the links below. Once you're logged in we'll bring you back here.
Specifications
Product Type: Wheel
Capacity: 1000 lbs.
Wheel Material: T/R-95 Polyurethane
Wheel Type: Polyurethane
Wheel Width: 2"
Wheel Diameter: 4"
*Temperature Range (Continuous): 0 to 180°F
*Temperature Range (Intermittent): '-50 to 200°F
Bearing Type: Straight Roller Bearing
Hub Length: 2.188
Bore: 0.75
SKU: 04201-91-12
Caster Weight: 3 lbs.
*High temperature grease must be used over 200°F
Product Description
This 4-inch by 2-inch T/R95 Polyurethane Caster Wheel features our specialized T/R 95 polyurethane formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Equipped with a straight roller bearing, this caster wheel provides smooth and effortless rolling, reducing friction and maintenance needs while offering exceptional load-bearing capacity. The straight roller bearing enhances stability and radial load handling capabilities for loads up to 1000 lbs.
