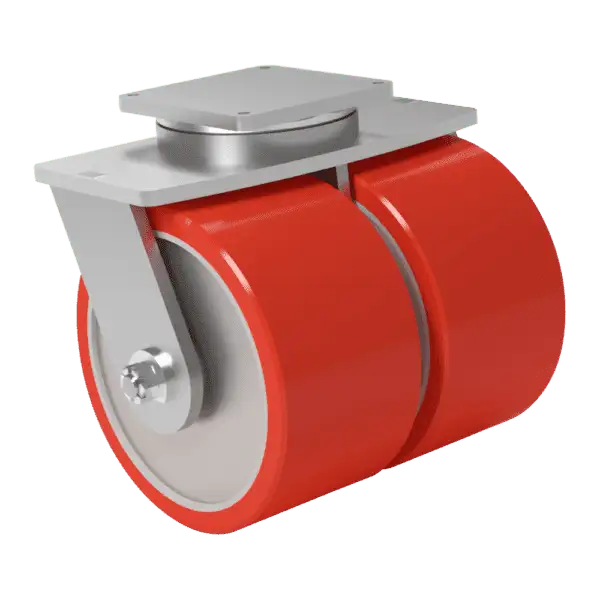

28×16 Dual Wheel H.D. Soft Polyurethane Swivel Caster

SKU: 2-99HD-28169-69-1
  • Load rating of 50000 lbs.
  • Overall height of 34 inches
  • T/R 85A PU Wheel - 1" Thick tread, industrial strength with a softer touch, high tear and debris resistance, moderate solvent and oil resistance. (Shore 85A Hardness)

$5,200.00$19,500.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 99
Capacity: 50,000 lbs.
Caster Material: Steel
Wheel Material: H.D. Soft Polyurethane
Wheel Configuration: Dual Wheel
Wheel Width: 16"
Wheel Diameter: 28"
Caster Style: Swivel Caster
Caster Type: Kingpin
Overall Height: 34"
Swivel Radius: 25.56"
Swivel Lead: 5.5"
Top Plate Size: 14 x 14
Bolt Hole Pattern: 12 x 12
Bolt Size: 0.75"
Bearing Type: Precision Tapered Bearing
SKU: 2-99HD-28169-69-1
Caster Weight: 1675 lbs.

Product Description

This 28-inch by 16-inch 99 Series Extra Heavy Duty caster, is the epitome of strength and reliability. Engineered to carry the heaviest loads with ease and deliver flawless performance, this caster sets the standard for quality and dependability in the industry. With its dual raceway load design, it boasts unrivaled carrying capacity and ensures smooth rotation, even under extreme loads. Crafted from drop-forged C-1045 steel, the yoke and top plates of the swivel section exude unmatched durability, while the integral forged kingpin seamlessly integrates into the top plate for enhanced structural integrity. Precision-machined dual raceways, heat-treated to 40 + 2 Rc, provide a robust foundation, complemented by hardened precision ball bearings and a 1.5-inch thrust bearing for exceptional performance. With a secured swivel section achieved through a tightened slotted nut and pinning, the 99 Series Caster offers unrivaled strength, longevity, and reliability for the most demanding heavy-duty applications in the market.



Dual Wheel Casters

Dual Wheel Caster configurations are engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes.

Paired with our 1-inch thick tread Soft Polyurethane 85A wheel, this caster is great for debris prevention. With exceptional rebound capabilities, these polyurethanes can effortlessly roll out dents caused by debris, ensuring smooth operation. Additionally, these polyurethanes are designed to be gentle on floors, minimizing any potential damage. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 50000 lbs.

Description

This 28-inch by 16-inch 99 Series Extra Heavy Duty caster, is the epitome of strength and reliability. Engineered to carry the heaviest loads with ease and deliver flawless performance, this caster sets the standard for quality and dependability in the industry. With its dual raceway load design, it boasts unrivaled carrying capacity and ensures smooth rotation, even under extreme loads. Crafted from drop-forged C-1045 steel, the yoke and top plates of the swivel section exude unmatched durability, while the integral forged kingpin seamlessly integrates into the top plate for enhanced structural integrity. Precision-machined dual raceways, heat-treated to 40 + 2 Rc, provide a robust foundation, complemented by hardened precision ball bearings and a 1.5-inch thrust bearing for exceptional performance. With a secured swivel section achieved through a tightened slotted nut and pinning, the 99 Series Caster offers unrivaled strength, longevity, and reliability for the most demanding heavy-duty applications in the market.

Dual Wheel Casters

Dual Wheel Caster configurations are engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes.

Paired with our 1-inch thick tread Soft Polyurethane 85A wheel, this caster is great for debris prevention. With exceptional rebound capabilities, these polyurethanes can effortlessly roll out dents caused by debris, ensuring smooth operation. Additionally, these polyurethanes are designed to be gentle on floors, minimizing any potential damage. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 50000 lbs.

Additional information

Weight 1675 lbs
