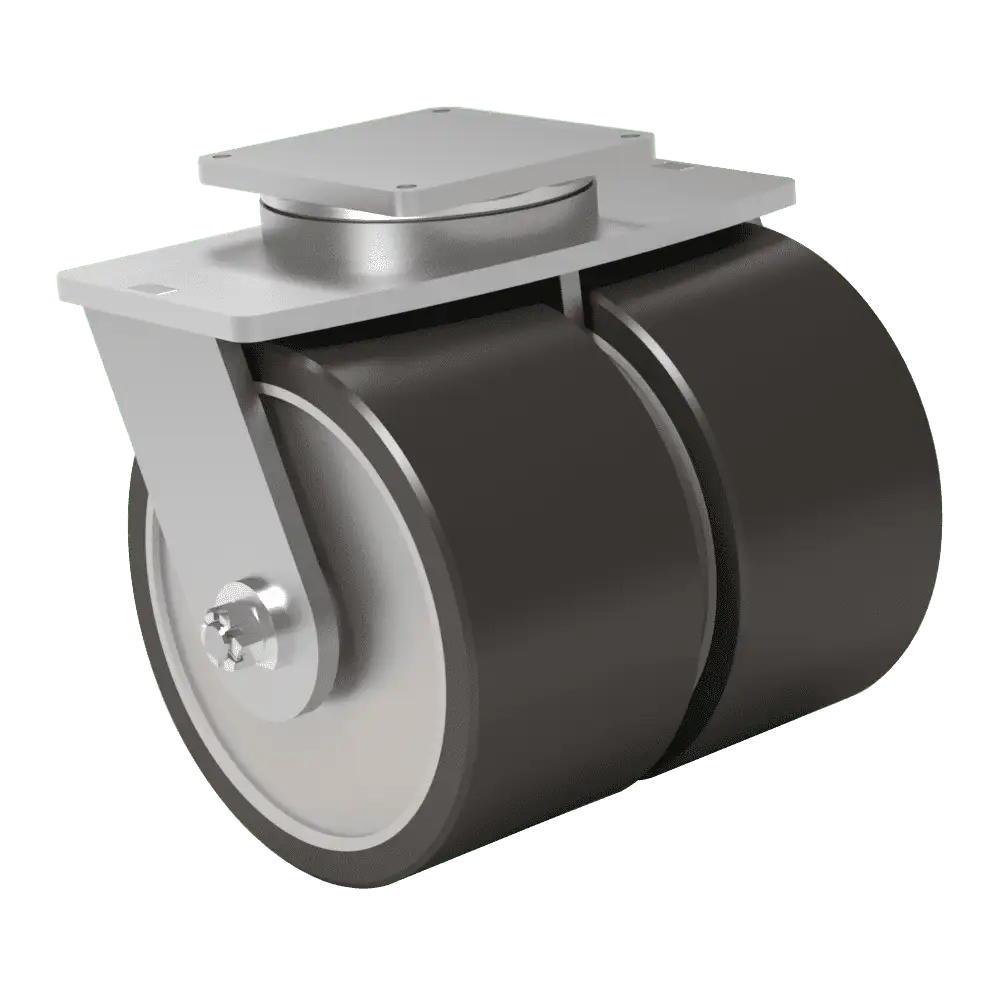

Picture may not be an exact representation of actual product*

22×12 Dual Wheel H.D. T/R-95 Polyurethane Swivel Caster

SKU: 2-99HD-22129-96-1
  • Load rating of 35000 lbs.
  • Overall height of 28 inches
  • T/R 95A PU Wheel - 1" Thick tread, high tear resistance, extended wear, ergonomic benefits, good solvent and oil resistance. (Shore 95A Hardness)

$5,200.00 – $19,500.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 99
Capacity: 35,000 lbs.
Caster Material: Steel
Wheel Material: H.D. T/R-95 Polyurethane
Wheel Configuration: Dual Wheel
Wheel Width: 12"
Wheel Diameter: 22"
Caster Style: Swivel Caster
Caster Type: Kingpin
Overall Height: 28"
Swivel Radius: 21.02"
Swivel Lead: 5.5"
Top Plate Size: 14 x 14
Bolt Hole Pattern: 12 x 12
Bolt Size: 0.75"
Bearing Type: Precision Tapered Bearing
SKU: 2-99HD-22129-96-1
Caster Weight: lbs.

Product Description

This 22-inch by 12-inch 99 Series Extra Heavy Duty caster, is the epitome of strength and reliability. Engineered to carry the heaviest loads with ease and deliver flawless performance, this caster sets the standard for quality and dependability in the industry. With its dual raceway load design, it boasts unrivaled carrying capacity and ensures smooth rotation, even under extreme loads. Crafted from drop-forged C-1045 steel, the yoke and top plates of the swivel section exude unmatched durability, while the integral forged kingpin seamlessly integrates into the top plate for enhanced structural integrity. Precision-machined dual raceways, heat-treated to 40 + 2 Rc, provide a robust foundation, complemented by hardened precision ball bearings and a 1.5-inch thrust bearing for exceptional performance. With a secured swivel section achieved through a tightened slotted nut and pinning, the 99 Series Caster offers unrivaled strength, longevity, and reliability for the most demanding heavy-duty applications in the market.



Dual Wheel Casters

Dual Wheel Caster configurations are engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes.

The 1-inch thick tread, T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 35000 lbs.
