20×5 H.D. Hard Polyurethane (70D) Caster Wheel

SKU: 20501-67-24
  • Load rating of 10500 lbs.
  • 70D Hard PU Wheel - 1" Thick tread of the hardest and toughest tread, ideal for heavy loads, non-marking, wear-resistant, excellent dynamic performance. (Shore 70D Hardness)

$903.92$1,302.32 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Category:


Specifications

Product Type: Wheel
Capacity: 10,500 lbs.
Wheel Material: H.D. Hard Polyurethane (70D)
Wheel Width: 5"
Wheel Diameter: 20"
*Temperature Range (Continuous): 0 to 180°F
*Temperature Range (Intermittent): -50 to 200°F
Bearing Type: Straight Roller Bearing
Hub Length: 5.25
Bore: 1.5
SKU: 20501-67-24
Caster Weight: 110 lbs.
*High temperature grease must be used over 200°F

Product Description

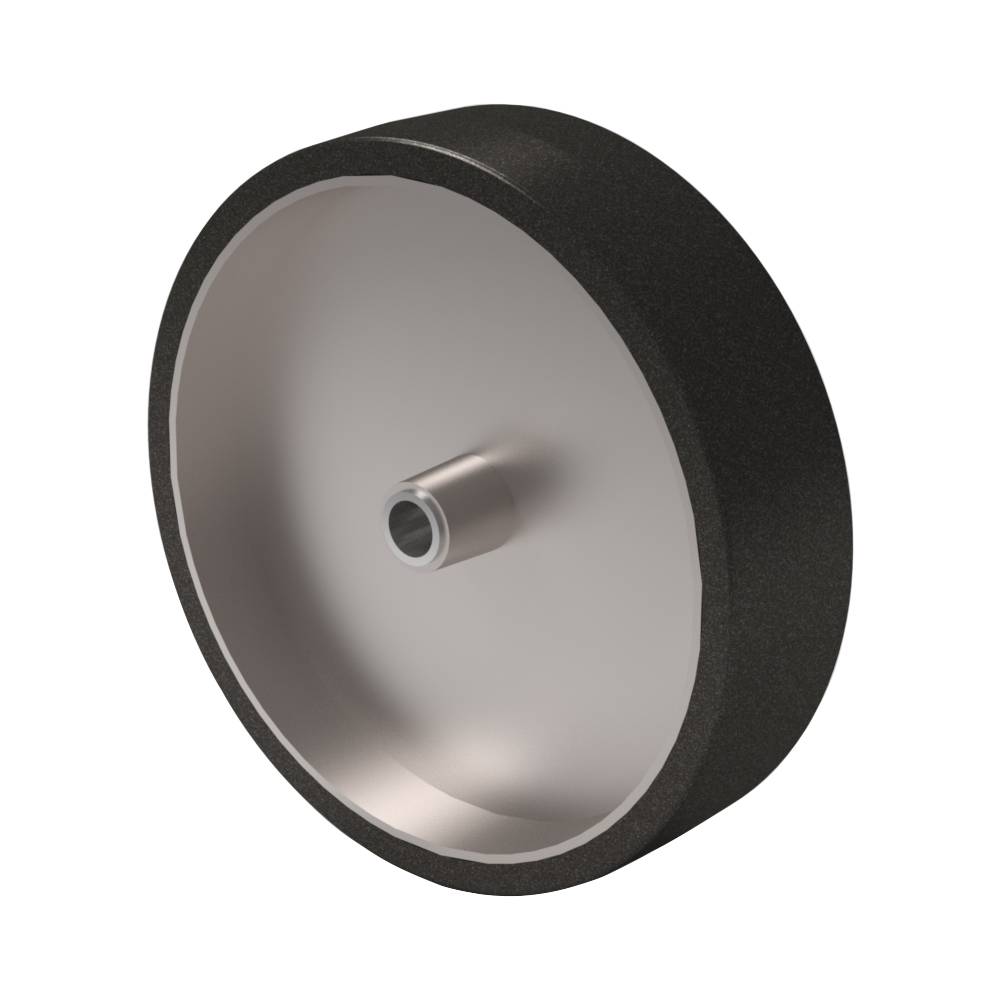

This 20-inch by 5-inch H.D. Hard Polyurethane (70D) caster wheel is engineered with precision and durability in mind. 70D rating as our hardest polyurethane formulation, ensures optimal hardness, providing excellent load-bearing capacity and resistance to abrasion. The impressive specs continue with this wheel being able to carry loads up to 10500 lbs. This specific wheel has a 1-inch thick tread which is denoted by the H.D. in the wheel material and utilizes straight roller bearings which are most effective for heavy loads, and are a great option when facing excessive thrust loading.

Description

This 20-inch by 5-inch H.D. Hard Polyurethane (70D) caster wheel is engineered with precision and durability in mind. 70D rating as our hardest polyurethane formulation, ensures optimal hardness, providing excellent load-bearing capacity and resistance to abrasion. The impressive specs continue with this wheel being able to carry loads up to 10500 lbs. This specific wheel has a 1-inch thick tread which is denoted by the H.D. in the wheel material and utilizes straight roller bearings which are most effective for heavy loads, and are a great option when facing excessive thrust loading.

Additional information

Weight 110 lbs
