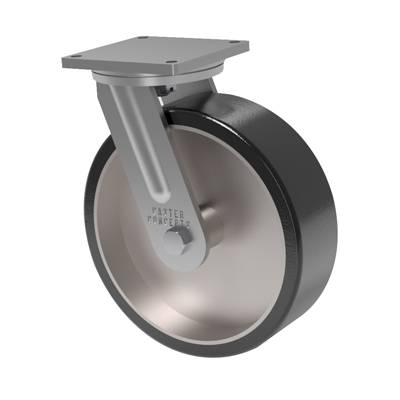

16×5 H.D. Hard Polyurethane (70D) Swivel Caster

SKU: 95-16509-67-1
  • Load rating of 8000 lbs.
  • Overall height of 19 inches
  • 70D Hard PU Wheel - 1" Thick tread of the hardest and toughest tread, ideal for heavy loads, non-marking, wear-resistant, excellent dynamic performance. (Shore 70D Hardness)

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 95
Capacity: 8,000 lbs.
Caster Material: Steel
Wheel Material: H.D. Hard Polyurethane (70D)
Wheel Configuration: Single Wheel
Wheel Width: 5"
Wheel Diameter: 16"
Caster Style: Swivel Caster
Caster Type: Kingpin
Overall Height: 19"
Swivel Radius: 11.28"
Swivel Lead: 3"
Top Plate Size: 8.5 x 8.5
Bolt Hole Pattern: 7 x 7
Bolt Size: 0.625"
Bearing Type: Precision Tapered Bearing
SKU: 95-16509-67-1
Caster Weight: 115 lbs.

Product Description

This 16-inch by 5-inch 95 Series caster is the perfect choice for applications demanding high load capacities and continuous use under load. With an integrally forged kingpin and slotted adjusting nut, this caster enhances strength and ensures long-lasting performance in the swivel section. Crafted from hot forged C-1045 steel, the 95 Series features a robust construction. The 7-inch diameter load raceway is precision-machined and accommodates 5/8 inch diameter ball bearings along with a 1-1/4 inch tapered thrust bearing. These components work together seamlessly, providing exceptional load-bearing capacity and reliable operation. The 95 Series Caster guarantees durability and longevity, making it an excellent solution for demanding industrial applications.

Combined with tread that is 1-inch thick of our hardest polyurethane wheel formulation, the 70D durometer rating of the hard polyurethane material ensures optimal hardness, providing excellent load-bearing capacity and resistance to abrasion. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 8000 lbs.

Description

This 16-inch by 5-inch 95 Series caster is the perfect choice for applications demanding high load capacities and continuous use under load. With an integrally forged kingpin and slotted adjusting nut, this caster enhances strength and ensures long-lasting performance in the swivel section. Crafted from hot forged C-1045 steel, the 95 Series features a robust construction. The 7-inch diameter load raceway is precision-machined and accommodates 5/8 inch diameter ball bearings along with a 1-1/4 inch tapered thrust bearing. These components work together seamlessly, providing exceptional load-bearing capacity and reliable operation. The 95 Series Caster guarantees durability and longevity, making it an excellent solution for demanding industrial applications.

Combined with tread that is 1-inch thick of our hardest polyurethane wheel formulation, the 70D durometer rating of the hard polyurethane material ensures optimal hardness, providing excellent load-bearing capacity and resistance to abrasion. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 8000 lbs.

Additional information

Weight 115 lbs
