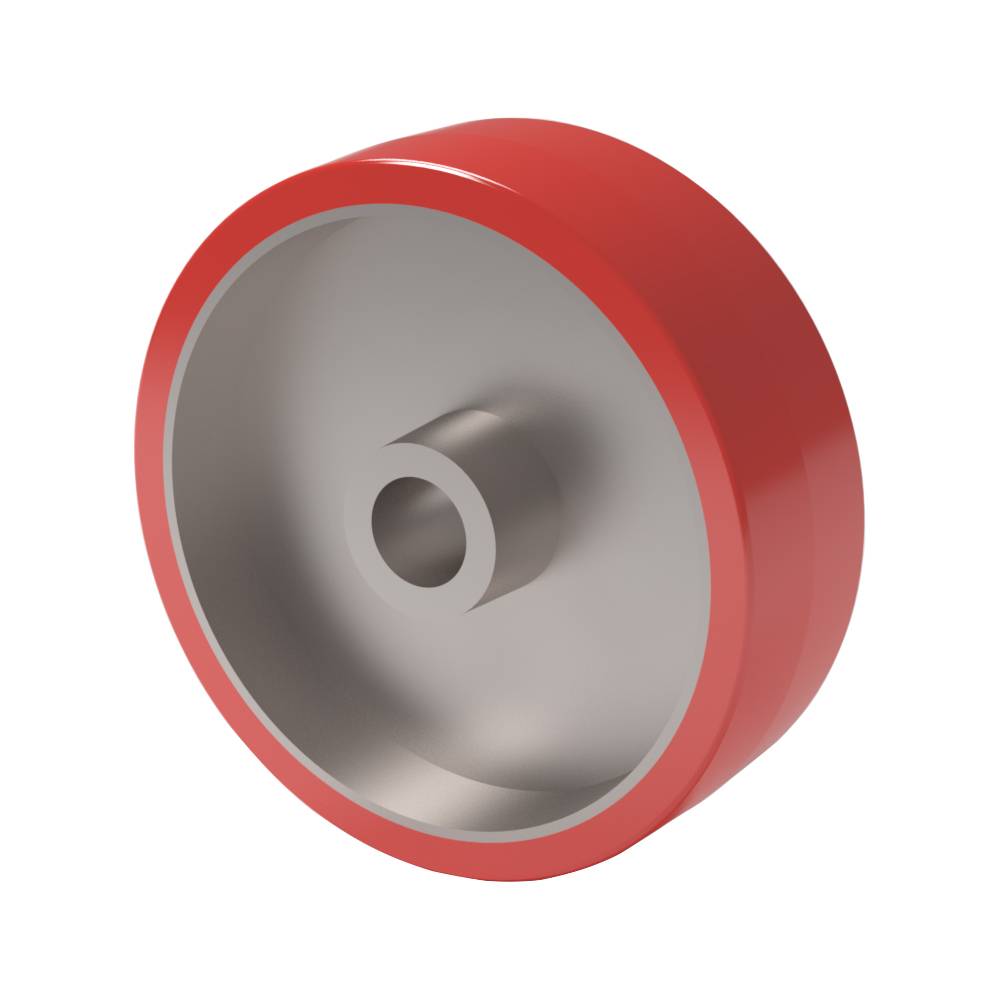

16×4 H.D. T/R Polyurethane Caster Wheel
SKU: 16401-66-20
Load rating of 4825 lbs.
T/R 85A PU Wheel - 1" Thick tread, industrial strength with a softer touch, high tear and debris resistance, moderate solvent and oil resistance. (Shore 85A Hardness)
NOTICE: You must be logged in to download a CAD Model.
You can create an account or login using the links below. Once you're logged in we'll bring you back here.
Specifications
Product Type: Wheel
Capacity: 4825 lbs.
Wheel Material: H.D. T/R Polyurethane
Wheel Type: Polyurethane
Wheel Width: 4"
Wheel Diameter: 16"
*Temperature Range (Continuous): 0 to 180°F
*Temperature Range (Intermittent): '-50 to 200°F
Bearing Type: Straight Roller Bearing
Hub Length: 4.25
Bore: 1.25
SKU: 16401-66-20
Caster Weight: 40 lbs.
*High temperature grease must be used over 200°F
Product Description
This 16-inch by 4-inch H.D. T/R Polyurethane wheel utilizes our heavy-duty, tear-resistant T/R-85A polyurethane that offers maximum elasticity. All while maintaining a great carrying capacity of 4825 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. These wheels are packed with straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading.
This 16-inch by 4-inch H.D. T/R Polyurethane wheel utilizes our heavy-duty, tear-resistant T/R-85A polyurethane that offers maximum elasticity. All while maintaining a great carrying capacity of 4825 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. These wheels are packed with straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading.
