99 Series Caster

Picture may not be an exact representation of actual product*

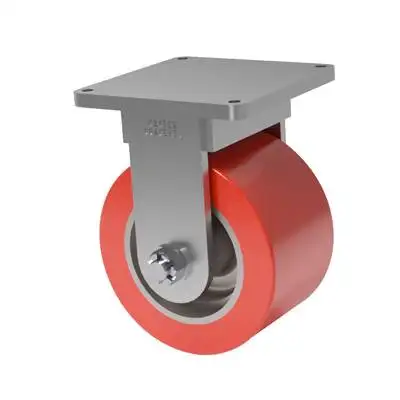

15×9 H.D. Soft Polyurethane Rigid Caster

SKU: 99-15901-69-2
  • Load rating of 8700 lbs.
  • Overall height of 19.5 inches
  • T/R 85A PU Wheel - 1" Thick tread, industrial strength with a softer touch, high tear and debris resistance, moderate solvent and oil resistance. (Shore 85A Hardness)

$5,200.00 – $19,500.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 99
Capacity: 8,700 lbs.
Caster Material: Steel
Wheel Material: H.D. Soft Polyurethane
Wheel Configuration: Single Wheel
Wheel Width: 9"
Wheel Diameter: 15"
Caster Style: Rigid Caster
Overall Height: 19.5"
*Temperature Range (Continuous): -50 to 200°F
*Temperature Range (Intermittent): -50 to 175°F
Top Plate Size: 14 x 14
Bolt Hole Pattern: 12 x 12
Bolt Size: 0.75"
Bearing Type: Straight Roller Bearing
SKU: 99-15901-69-2
Caster Weight: lbs.
*High temperature grease must be used over 200°F

Product Description

This 15-inch by 9-inch 99 Series Extra Heavy Duty caster, is the epitome of strength and reliability. Engineered to carry the heaviest loads with ease and deliver flawless performance, this rigid caster sets the standard for quality and dependability in the industry.

Paired with our 1-inch thick tread Soft Polyurethane 85A wheel, this caster is great for debris prevention. With exceptional rebound capabilities, these polyurethanes can effortlessly roll out dents caused by debris, ensuring smooth operation. Additionally, these polyurethanes are designed to be gentle on floors, minimizing any potential damage. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 8700 lbs.

Description

This 15-inch by 9-inch 99 Series Extra Heavy Duty caster, is the epitome of strength and reliability. Engineered to carry the heaviest loads with ease and deliver flawless performance, this rigid caster sets the standard for quality and dependability in the industry.

Paired with our 1-inch thick tread Soft Polyurethane 85A wheel, this caster is great for debris prevention. With exceptional rebound capabilities, these polyurethanes can effortlessly roll out dents caused by debris, ensuring smooth operation. Additionally, these polyurethanes are designed to be gentle on floors, minimizing any potential damage. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 8700 lbs.
