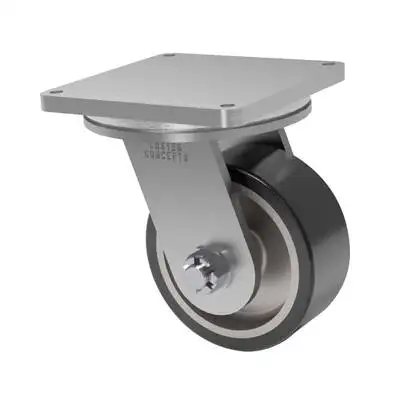

12×5 H.D. Hard Polyurethane (70D) Swivel Caster

SKU: 99-12501-67-1
  • Load rating of 7500 lbs.
  • Overall height of 16.5 inches
  • 70D Hard PU Wheel - 1" Thick tread of the hardest and toughest tread, ideal for heavy loads, non-marking, wear-resistant, excellent dynamic performance. (Shore 70D Hardness)

$2,268.93$2,865.56 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 99
Capacity: 7,500 lbs.
Caster Material: Steel
Wheel Material: H.D. Hard Polyurethane (70D)
Wheel Configuration: Single Wheel
Wheel Width: 5"
Wheel Diameter: 12"
Caster Style: Swivel Caster
Caster Type: Kingpin
Overall Height: 16.5"
Swivel Radius: 9.34"
Swivel Lead: 3"
Top Plate Size: 14 x 14
Bolt Hole Pattern: 12 x 12
Bolt Size: 0.75"
Bearing Type: Straight Roller Bearing
SKU: 99-12501-67-1
Caster Weight: 196 lbs.

Product Description

This 12-inch by 5-inch 99 Series Extra Heavy Duty caster, is the epitome of strength and reliability. Engineered to carry the heaviest loads with ease and deliver flawless performance, this caster sets the standard for quality and dependability in the industry. With its dual raceway load design, it boasts unrivaled carrying capacity and ensures smooth rotation, even under extreme loads. Crafted from drop-forged C-1045 steel, the yoke and top plates of the swivel section exude unmatched durability, while the integral forged kingpin seamlessly integrates into the top plate for enhanced structural integrity. Precision-machined dual raceways, heat-treated to 40 + 2 Rc, provide a robust foundation, complemented by hardened precision ball bearings and a 1.5-inch thrust bearing for exceptional performance. With a secured swivel section achieved through a tightened slotted nut and pinning, the 99 Series Caster offers unrivaled strength, longevity, and reliability for the most demanding heavy-duty applications in the market.
Combined with tread that is 1-inch thick of our hardest polyurethane wheel formulation, the 70D durometer rating of the hard polyurethane material ensures optimal hardness, providing excellent load-bearing capacity and resistance to abrasion. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 7500 lbs.

Description

This 12-inch by 5-inch 99 Series Extra Heavy Duty caster, is the epitome of strength and reliability. Engineered to carry the heaviest loads with ease and deliver flawless performance, this caster sets the standard for quality and dependability in the industry. With its dual raceway load design, it boasts unrivaled carrying capacity and ensures smooth rotation, even under extreme loads. Crafted from drop-forged C-1045 steel, the yoke and top plates of the swivel section exude unmatched durability, while the integral forged kingpin seamlessly integrates into the top plate for enhanced structural integrity. Precision-machined dual raceways, heat-treated to 40 + 2 Rc, provide a robust foundation, complemented by hardened precision ball bearings and a 1.5-inch thrust bearing for exceptional performance. With a secured swivel section achieved through a tightened slotted nut and pinning, the 99 Series Caster offers unrivaled strength, longevity, and reliability for the most demanding heavy-duty applications in the market.
Combined with tread that is 1-inch thick of our hardest polyurethane wheel formulation, the 70D durometer rating of the hard polyurethane material ensures optimal hardness, providing excellent load-bearing capacity and resistance to abrasion. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 7500 lbs.

Additional information

Weight 196 lbs
