Picture may not be an exact representation of actual product*

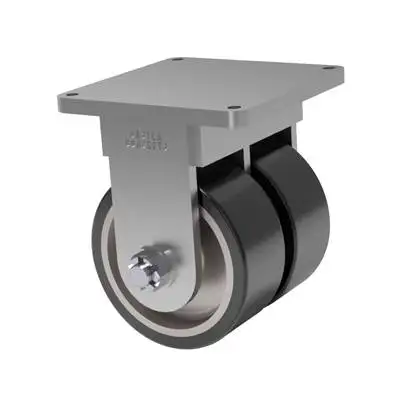

12×5 Dual Wheel H.D. Hard Polyurethane (70D) Rigid Caster

SKU: 2-99-12501-67-2
  • Load rating of 15000 lbs.
  • Overall height of 16.5 inches
  • 70D Hard PU Wheel - 1" Thick tread of the hardest and toughest tread, ideal for heavy loads, non-marking, wear-resistant, excellent dynamic performance. (Shore 70D Hardness)

$5,200.00 – $19,500.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 99
Capacity: 15,000 lbs.
Caster Material: Steel
Wheel Material: H.D. Hard Polyurethane (70D)
Wheel Configuration: Dual Wheel
Wheel Width: 5"
Wheel Diameter: 12"
Caster Style: Rigid Caster
Overall Height: 16.5"
*Temperature Range (Continuous): -50 to 200°F
*Temperature Range (Intermittent): -50 to 175°F
Top Plate Size: 14 x 14
Bolt Hole Pattern: 12 x 12
Bolt Size: 0.75"
Bearing Type: Straight Roller Bearing
SKU: 2-99-12501-67-2
Caster Weight: 244.46 lbs.
*High temperature grease must be used over 200°F

Product Description

This 12-inch by 5-inch 99 Series Extra Heavy Duty caster, is the epitome of strength and reliability. Engineered to carry the heaviest loads with ease and deliver flawless performance, this rigid caster sets the standard for quality and dependability in the industry.



Dual Wheel Casters

Dual Wheel Caster configurations are engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes.

Combined with tread that is 1-inch thick of our hardest polyurethane wheel formulation, the 70D durometer rating of the hard polyurethane material ensures optimal hardness, providing excellent load-bearing capacity and resistance to abrasion. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 15000 lbs.

Description

This 12-inch by 5-inch 99 Series Extra Heavy Duty caster, is the epitome of strength and reliability. Engineered to carry the heaviest loads with ease and deliver flawless performance, this rigid caster sets the standard for quality and dependability in the industry.

Dual Wheel Casters

Dual Wheel Caster configurations are engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes.

Combined with tread that is 1-inch thick of our hardest polyurethane wheel formulation, the 70D durometer rating of the hard polyurethane material ensures optimal hardness, providing excellent load-bearing capacity and resistance to abrasion. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 15000 lbs.

Additional information

Weight 244.46 lbs
