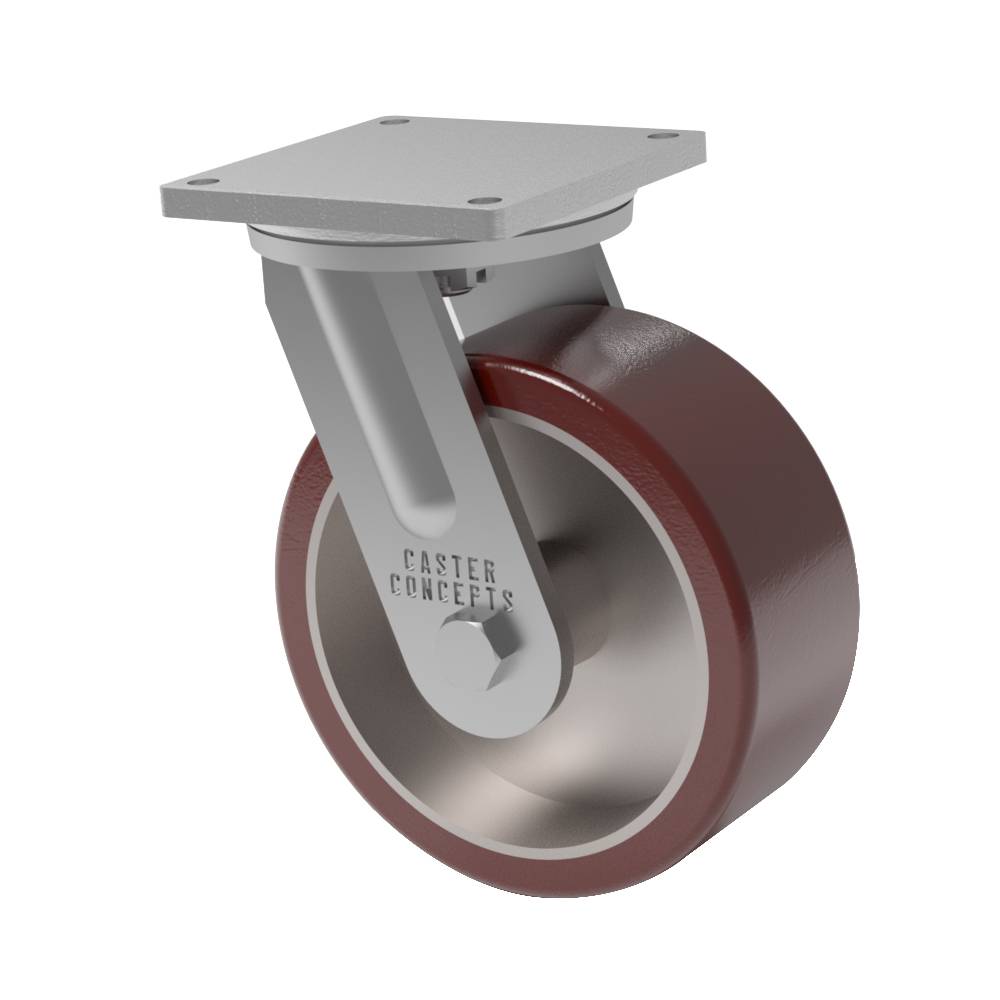

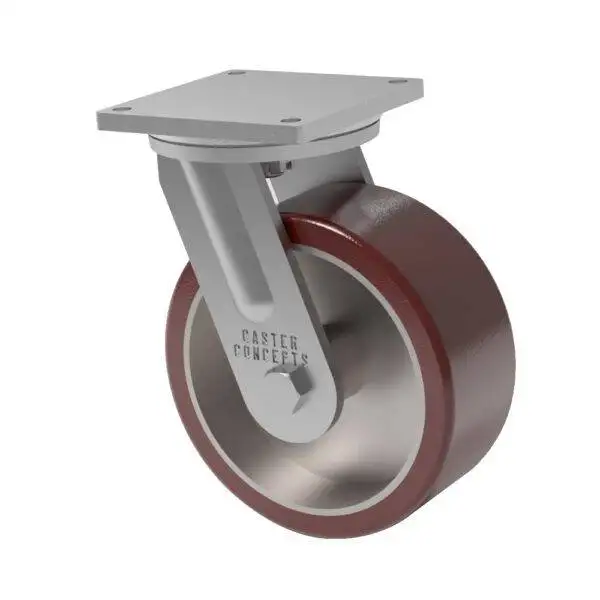

12×4 H.D. Standard Polyurethane Swivel Caster

SKU: 90-12401-65-1
  • Load rating of 5500 lbs.
  • Overall height of 15.5 inches
  • 95A Standard PU Wheel - 1" Thick tread, non-marking, high tear strength, resistance to flat spotting, good solvent and water resistance. (Shore 95A Hardness)

$648.30$999.95 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 90
Capacity: 5,500 lbs.
Caster Material: Steel
Wheel Material: H.D. Standard Polyurethane
Wheel Configuration: Single Wheel
Wheel Width: 4"
Wheel Diameter: 12"
Caster Style: Swivel Caster
Caster Type: Kingpin
Overall Height: 15.5"
Swivel Radius: 8.73"
Swivel Lead: 2.5"
Top Plate Size: 8.5 x 8.5
Bolt Hole Pattern: 7 x 7
Bolt Size: 0.625"
Bearing Type: Straight Roller Bearing
SKU: 90-12401-65-1
Caster Weight: 75 lbs.

Product Description

This 12-inch by 4-inch 90 series caster, is a durable and high-performance solution designed to excel in demanding applications. Crafted through a drop forged process using C-1045 steel, the yoke and top plate of this caster exhibit exceptional strength and resilience. The integral forged kingpin seamlessly integrates with the top plate, while the precision-machined raceway and threaded kingpin ensure a secure assembly. Through rigorous heat treatment, all components are fortified for enhanced durability. The caster incorporates a precision tapered thrust bearing pressed over the kingpin, engaging the yoke for smooth operation, while hardened ball bearings complete the load-bearing raceway, providing reliable support for heavy loads. The precision-machined and hardened bearing raceways eliminate brinelling when subjected to shock loads, and a 1-1/4" tapered thrust bearing ensures a precision fit. With its impressive load capacity and excellent value, the 90 Series Caster is a trusted choice for applications that demand durability, precision, and cost-effectiveness, delivering exceptional performance and long-lasting reliability.
Paired with our general-purpose, 1-inch thick tread, H.D. Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. This wheel is capable carrying loads up to 3700 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 5500 lbs.

Description

This 12-inch by 4-inch 90 series caster, is a durable and high-performance solution designed to excel in demanding applications. Crafted through a drop forged process using C-1045 steel, the yoke and top plate of this caster exhibit exceptional strength and resilience. The integral forged kingpin seamlessly integrates with the top plate, while the precision-machined raceway and threaded kingpin ensure a secure assembly. Through rigorous heat treatment, all components are fortified for enhanced durability. The caster incorporates a precision tapered thrust bearing pressed over the kingpin, engaging the yoke for smooth operation, while hardened ball bearings complete the load-bearing raceway, providing reliable support for heavy loads. The precision-machined and hardened bearing raceways eliminate brinelling when subjected to shock loads, and a 1-1/4″ tapered thrust bearing ensures a precision fit. With its impressive load capacity and excellent value, the 90 Series Caster is a trusted choice for applications that demand durability, precision, and cost-effectiveness, delivering exceptional performance and long-lasting reliability.
Paired with our general-purpose, 1-inch thick tread, H.D. Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. This wheel is capable carrying loads up to 3700 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 5500 lbs.

Additional information

Weight 75 lbs
