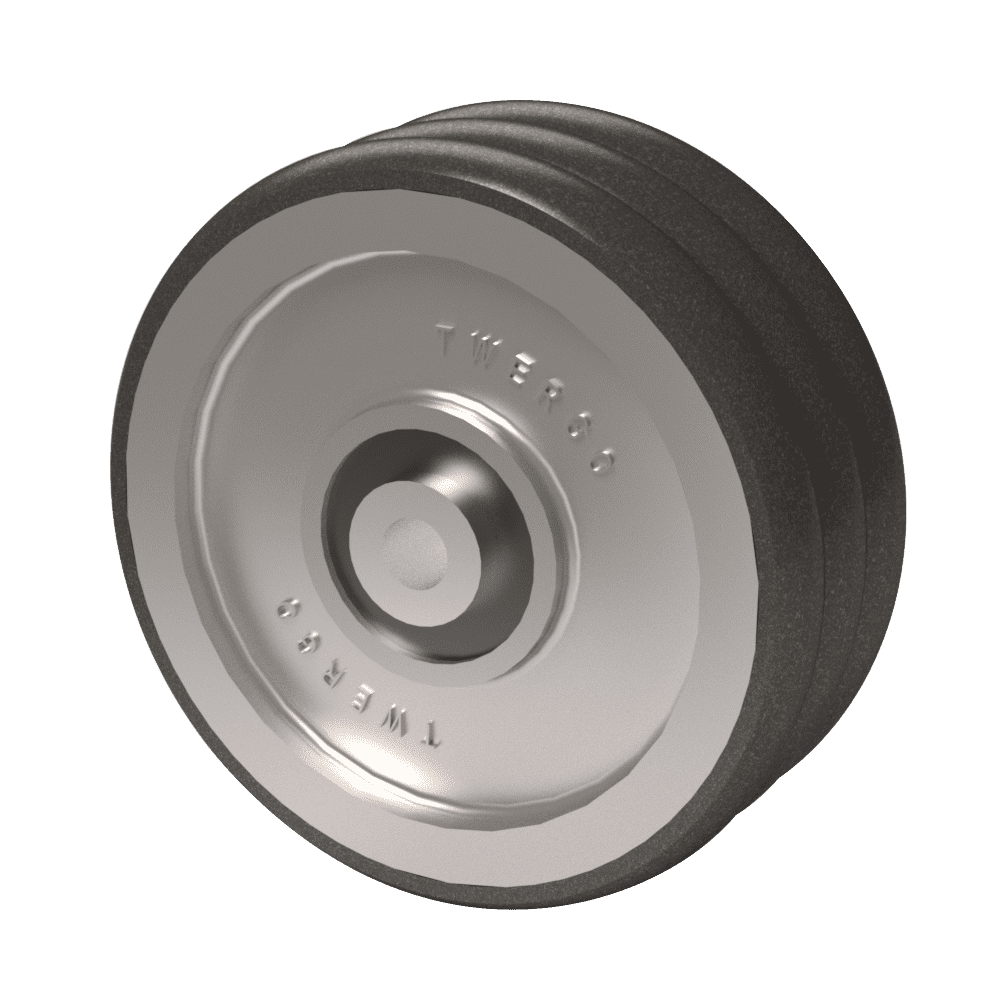

12×3 TWERGO T/R-95 Polyurethane Caster Wheel
NOTICE: You must be logged in to download a CAD Model.
You can create an account or login using the links below. Once you're logged in we'll bring you back here.
Specifications
Product Type: Wheel
Capacity: 3,400 lbs.
Wheel Material: T/R-95 Polyurethane
Wheel Type: TWERGO
Wheel Width: 3"
Wheel Diameter: 12"
*Temperature Range (Continuous): 0 to 180°F
*Temperature Range (Intermittent): -50 to 200°F
Brand: TWERGO
Bearing Type: Precision Ball Bearing
Hub Length: 3.5
Bore: 0.75
SKU: 12302-94-12
Caster Weight: 11.6 lbs.
*High temperature grease must be used over 200°F
Product Description
This 12-inch by 3-inch TWERGO® wheel features precision sealed ball bearings for maximum rolling performance, performance that is maximized through our patented, multiple wheel-in-one design. This wheel utilizes our T/R-95 polyurethane that achieves a higher tear resistance and greater strength for extended wear in difficult applications. This formulation achieves good solvent and oil resistance and has a capacity of 3400 lbs.
Description
This 12-inch by 3-inch TWERGO® wheel features precision sealed ball bearings for maximum rolling performance, performance that is maximized through our patented, multiple wheel-in-one design. This wheel utilizes our T/R-95 polyurethane that achieves a higher tear resistance and greater strength for extended wear in difficult applications. This formulation achieves good solvent and oil resistance and has a capacity of 3400 lbs.
