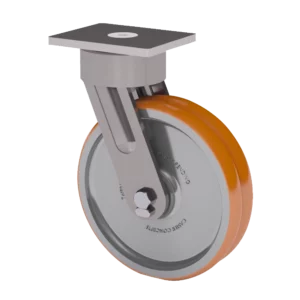

12×3 T/R-95 Polyurethane Rigid Caster

SKU: 87-12302-91-2
  • Load rating of 3400 lbs.
  • Overall height of 15.75 inches
  • T/R 95A PU Wheel - High tear resistance, extended wear, ergonomic benefits, good solvent and oil resistance. (Shore 95A Hardness)

Categories: , , , , Tags:


Specifications

Product Type: Caster
Series: 87
Capacity: 3,400 lbs.
Caster Material: Steel
Wheel Material: T/R-95 Polyurethane
Wheel Configuration: Single Wheel
Wheel Width: 3"
Wheel Diameter: 12"
Caster Style: Rigid Caster
Overall Height: 15.75"
*Temperature Range (Continuous): -50 to 200°F
*Temperature Range (Intermittent): -50 to 175°F
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Precision Ball Bearing
SKU: 87-12302-91-2
Caster Weight: 54.09 lbs.
*High temperature grease must be used over 200°F

Product Description

This 12-inch by 3-inch 87 series caster, is engineered for exceptional performance and reduced ergonomic forces. The legs, made from 3/8" x 3" steel, are continuously welded both inside and outside the yoke base, ensuring robust construction. With a 1" diameter axle, this caster delivers smooth rotation and reliable operation.

The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 3400 lbs.

Description

This 12-inch by 3-inch 87 series caster, is engineered for exceptional performance and reduced ergonomic forces. The legs, made from 3/8″ x 3″ steel, are continuously welded both inside and outside the yoke base, ensuring robust construction. With a 1″ diameter axle, this caster delivers smooth rotation and reliable operation.

The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 3400 lbs.

Additional information

Weight 54.09 lbs
