Specifications
Product Type: Caster
Series: 87
Capacity: 3400 lbs.
Caster Material: Steel
Wheel Material: T/R-95 Polyurethane
Wheel Configuration: Single Wheel
Wheel Type: Polyurethane
Wheel Width: 3"
Wheel Diameter: 12"
Caster Style: Swivel Caster
Caster Type: Maintenance Free
Overall Height: 15.75"
Swivel Radius: 9.12"
Swivel Lead: 3"
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Precision Ball Bearing
SKU: 87-12302-91-1
Caster Weight: 54.09 lbs.

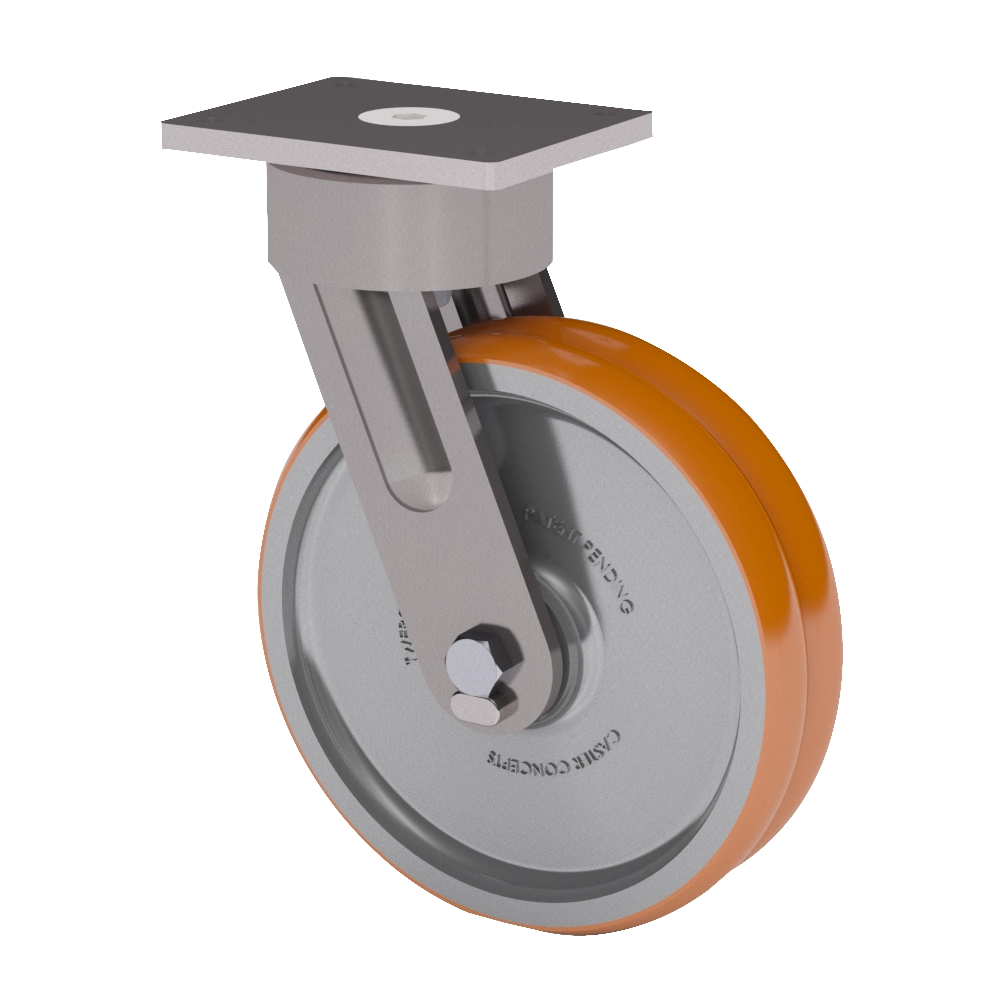

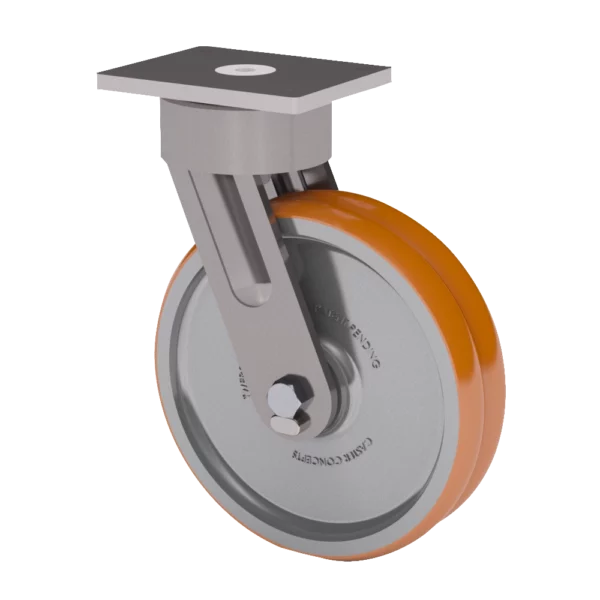

Product Description
This 12-inch by 3-inch 87 series caster utilizes a dual (precision sealed ball) bearing design, enabling smooth and easy rotation. The dual precision sealed ball bearings with hardened raceways help reduce push force when moving the cart from a stopped position while the wheels are not all parallel.
The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 3400 lbs.
