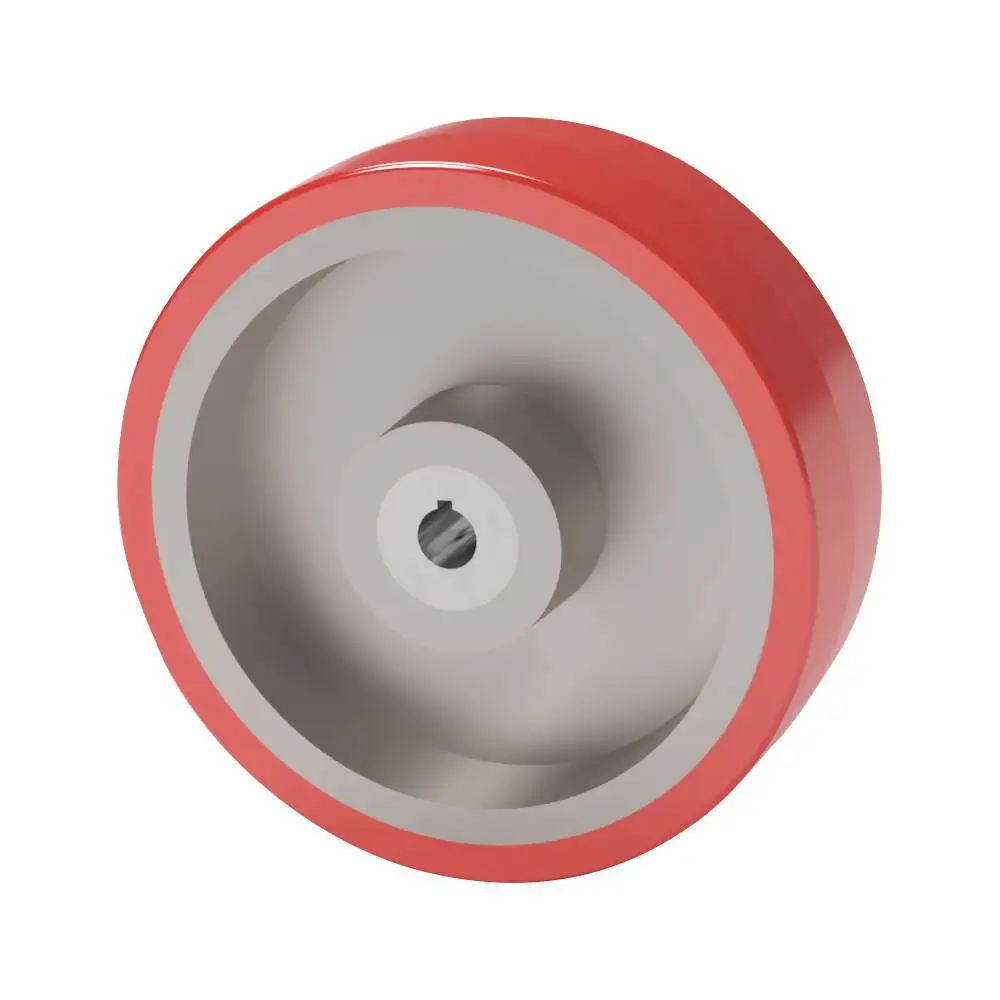

Picture may not be an exact representation of actual product*

10×5 Keyway H.D. T/R Polyurethane Caster Wheel

SKU: 10500-66-24-KWEE
  • Load rating of 2500 lbs.
  • T/R 85A PU Wheel - 1" Thick tread, industrial strength with a softer touch, high tear and debris resistance, moderate solvent and oil resistance. (Shore 85A Hardness)

$382.77 – $764.64 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Category:


Specifications

Product Type: Wheel
Capacity: 2,500 lbs.
Wheel Material: H.D. T/R Polyurethane
Wheel Type: Keyway
Wheel Width: 5"
Wheel Diameter: 10"
*Temperature Range (Continuous): 0 to 180°F
*Temperature Range (Intermittent): -50 to 200°F
Bearing Type: Bearingless
Hub Length: 5.25
Bore: 1.5
Keyway Size: 1/4 x 1/8"
SKU: 10500-66-24-KWEE
Caster Weight: lbs.
*High temperature grease must be used over 200°F

Product Description

This 10-inch by 5-inch H.D. T/R Polyurethane keyway wheel utilizes our tear-resistant T/R-85A polyurethane that ensures exceptional grip and long-lasting performance. These keyed wheels are designed for reliable traction and efficient power transmission for various drive applications. With it's 1-inch thick tread, as is denoted by the H.D. in the wheel material, these keyway drive wheels are capable of handling up to 2500 lbs.

Description

This 10-inch by 5-inch H.D. T/R Polyurethane keyway wheel utilizes our tear-resistant T/R-85A polyurethane that ensures exceptional grip and long-lasting performance. These keyed wheels are designed for reliable traction and efficient power transmission for various drive applications. With it’s 1-inch thick tread, as is denoted by the H.D. in the wheel material, these keyway drive wheels are capable of handling up to 2500 lbs.
