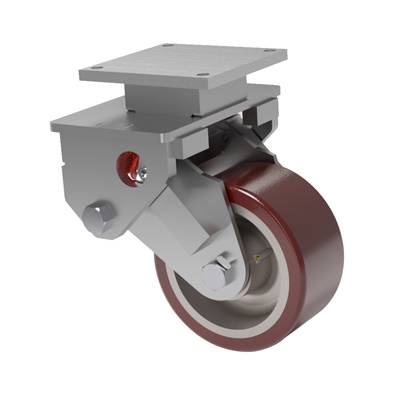

Picture may not be an exact representation of actual product*
10×5 H.D. Standard Polyurethane Spring Loaded Rigid Caster
NOTICE: You must be logged in to download a CAD Model.
You can create an account or login using the links below. Once you're logged in we'll bring you back here.
Specifications
Product Type: Caster
Series: 93
Capacity: 4000 lbs.
Caster Material: Steel
Wheel Material: H.D. Standard Polyurethane
Wheel Configuration: Single Wheel
Wheel Type: Polyurethane
Wheel Width: 5.00"
Wheel Diameter: 10.00"
Caster Style: Rigid Caster
Caster Type: Spring Loaded
Overall Height: 16.25"
*Temperature Range (Continuous): -50 to 200°F
*Temperature Range (Intermittent): -50 to 175°F
Top Plate Size: 8.5 x 8.5
Bolt Hole Pattern: 7 x 7
Bolt Size: 0.625"
Bearing Type: Precision Tapered Bearing
SKU: 93-10509-65-2
Caster Weight: 110 lbs.
*High temperature grease must be used over 200°F
Product Description
This 10-inch by 5-inch 93 series Spring-Loaded caster is designed to absorb shocks and reduce noise, these casters excel on uneven surfaces and protect delicate loads. Our expert engineers determine the ideal spring deflection, ensuring reliable performance without causing damage. Built with high-strength chrome vanadium springs, these rigid casters offer durability and cushioned loads, while the long swivel lead minimizes vibration during towing.
Paired with our general-purpose, 1-inch thick tread, H.D. Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. This wheel is capable carrying loads up to 3700 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 4000 lbs.
Description
This 10-inch by 5-inch 93 series Spring-Loaded caster is designed to absorb shocks and reduce noise, these casters excel on uneven surfaces and protect delicate loads. Our expert engineers determine the ideal spring deflection, ensuring reliable performance without causing damage. Built with high-strength chrome vanadium springs, these rigid casters offer durability and cushioned loads, while the long swivel lead minimizes vibration during towing.
Paired with our general-purpose, 1-inch thick tread, H.D. Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. This wheel is capable carrying loads up to 3700 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 4000 lbs.
