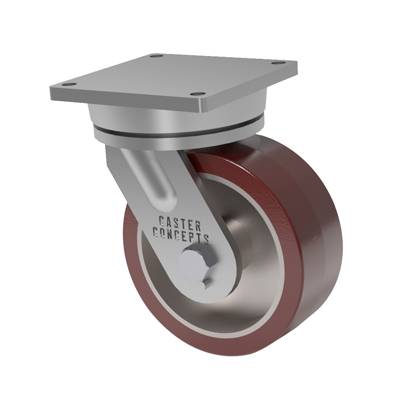

10×4 H.D. Standard Polyurethane Swivel Caster

SKU: 91-10401-65-1
  • Load rating of 5000 lbs.
  • Overall height of 13 inches
  • 95A Standard PU Wheel - 1" Thick tread, non-marking, high tear strength, resistance to flat spotting, good solvent and water resistance. (Shore 95A Hardness)

$560.68$868.59 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 91
Capacity: 5000 lbs.
Caster Material: Steel
Wheel Material: H.D. Standard Polyurethane
Wheel Configuration: Single Wheel
Wheel Type: Polyurethane
Wheel Width: 4"
Wheel Diameter: 10"
Caster Style: Swivel Caster
Caster Type: Kingpinless
Overall Height: 13"
Swivel Radius: 7.76"
Swivel Lead: 2.5"
Top Plate Size: 8.5 x 8.5
Bolt Hole Pattern: 7 x 7
Bolt Size: 0.625"
Bearing Type: Straight Roller Bearing
SKU: 91-10401-65-1
Caster Weight: 68 lbs.

Product Description

This 10-inch by 4-inch 91 Series Extra Heavy Duty Kingpinless caster, is a highly acclaimed industrial solution that excels in rugged applications while minimizing maintenance costs. This caster is valued for its simplicity and ability to withstand industrial environments with prevalent shock loading. The top plate and yoke base are aligned using high-quality 3/4 inch hardened ball bearings, providing stability and reliability. The ingenious swivel section construction places the ball bearings in a sheer load position, ensuring exceptional strength and smooth operation even under heavy loads. With effortless swiveling capabilities, the 91 Series offers extended lifecycles and years of cost-effective operation. Constructed from hot forged C-1045 steel, this caster features a single ball race design with 7/8 inch diameter load/thrust ball bearings in a precision-machined 7-inch diameter raceway. This caster delivers durability, strength, and efficiency, making it the ideal choice for demanding industrial applications.
Paired with our general-purpose, 1-inch thick tread, H.D. Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. This wheel is capable carrying loads up to 3700 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 5000 lbs.

Description

This 10-inch by 4-inch 91 Series Extra Heavy Duty Kingpinless caster, is a highly acclaimed industrial solution that excels in rugged applications while minimizing maintenance costs. This caster is valued for its simplicity and ability to withstand industrial environments with prevalent shock loading. The top plate and yoke base are aligned using high-quality 3/4 inch hardened ball bearings, providing stability and reliability. The ingenious swivel section construction places the ball bearings in a sheer load position, ensuring exceptional strength and smooth operation even under heavy loads. With effortless swiveling capabilities, the 91 Series offers extended lifecycles and years of cost-effective operation. Constructed from hot forged C-1045 steel, this caster features a single ball race design with 7/8 inch diameter load/thrust ball bearings in a precision-machined 7-inch diameter raceway. This caster delivers durability, strength, and efficiency, making it the ideal choice for demanding industrial applications.
Paired with our general-purpose, 1-inch thick tread, H.D. Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. This wheel is capable carrying loads up to 3700 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 5000 lbs.

Additional information

Weight 68 lbs
