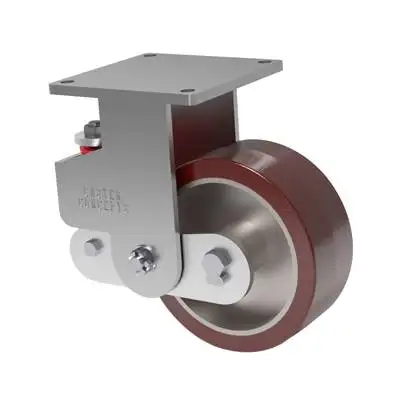

10×4 H.D. Standard Polyurethane Rigid Caster

SKU: 94-10409-65-2
  • Load rating of 3800 lbs.
  • Overall height of 13.5 inches
  • 95A Standard PU Wheel - 1" Thick tread, non-marking, high tear strength, resistance to flat spotting, good solvent and water resistance. (Shore 95A Hardness)

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 94
Capacity: 3,800 lbs.
Caster Material: Steel
Wheel Material: H.D. Standard Polyurethane
Wheel Configuration: Single Wheel
Wheel Width: 4"
Wheel Diameter: 10"
Caster Style: Rigid Caster
Caster Type: Spring Loaded
Overall Height: 13.5"
*Temperature Range (Continuous): -50 to 200°F
*Temperature Range (Intermittent): -50 to 175°F
Top Plate Size: 8.5 x 8.5
Bolt Hole Pattern: 7 x 7
Bolt Size: 0.625"
Bearing Type: Precision Tapered Bearing
SKU: 94-10409-65-2
Caster Weight: 79 lbs.
*High temperature grease must be used over 200°F

Product Description

This 10-inch by 4-inch 94 series Vertical Mounted Spring-Loaded caster provides exceptional shock absorption and vertical movement capabilities, making them perfect for navigating uneven surfaces and protecting fragile or vibration-sensitive loads. With expertly determined spring deflection, they offer optimal performance without causing harm. Crafted with high-strength chrome vanadium springs, these fixed casters ensure durability and cushioned loads, while the long swivel lead reduces vibration during towing.

Paired with our general-purpose, 1-inch thick tread, H.D. Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. This wheel is capable carrying loads up to 3700 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 3800 lbs.

Description

This 10-inch by 4-inch 94 series Vertical Mounted Spring-Loaded caster provides exceptional shock absorption and vertical movement capabilities, making them perfect for navigating uneven surfaces and protecting fragile or vibration-sensitive loads. With expertly determined spring deflection, they offer optimal performance without causing harm. Crafted with high-strength chrome vanadium springs, these fixed casters ensure durability and cushioned loads, while the long swivel lead reduces vibration during towing.

Paired with our general-purpose, 1-inch thick tread, H.D. Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. This wheel is capable carrying loads up to 3700 lbs. and has a 1-inch thick tread which is denoted by the H.D. in the wheel material. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 3800 lbs.

Additional information

Weight 79 lbs
