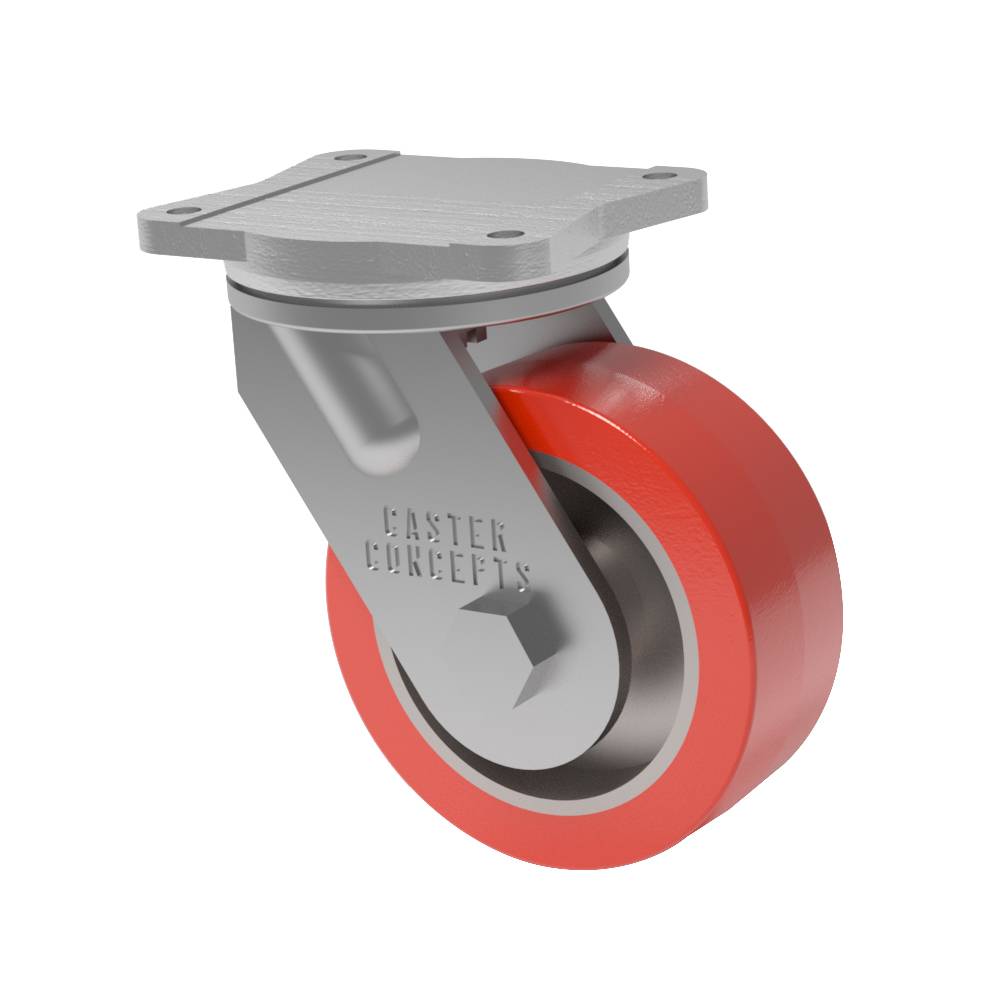

10×3 H.D. T/R Polyurethane Swivel Caster

SKU: 80-10309-66-1
  • Load rating of 2800 lbs.
  • Overall height of 12.5 inches
  • T/R 85A PU Wheel - 1" Thick tread, industrial strength with a softer touch, high tear and debris resistance, moderate solvent and oil resistance. (Shore 85A Hardness)

$435.77$705.82 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 80
Capacity: 2,800 lbs.
Caster Material: Steel
Wheel Material: H.D. T/R Polyurethane
Wheel Configuration: Single Wheel
Wheel Width: 3"
Wheel Diameter: 10"
Caster Style: Swivel Caster
Caster Type: Kingpin
Overall Height: 12.5"
Swivel Radius: 7.65"
Swivel Lead: 2.5"
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Precision Tapered Bearing
SKU: 80-10309-66-1
Caster Weight: 55 lbs.

Product Description

This 10-inch by 3-inch 80 series extra heavy duty caster, is meticulously engineered to withstand the most abusive applications. These casters are designed with heat-treated raceways to prevent brinelling and ensure long-lasting performance. The laser-cut formed legs provide additional strength, making them ideal for applications with side loading or skidding. Crafted with durability in mind, the yoke and top plate are manufactured through a drop forged process using C-1045 steel. The top plate features a machined raceway, while the threaded kingpin and 5-inch diameter machined yoke base raceway enhance stability. Components are heat treated to achieve a hardness of 40 + 2 Rc. The caster is equipped with a 1.25-inch precision tapered thrust bearing pressed over the kingpin, along with hardened ball bearings to complete the load-bearing raceway. With exceptional strength and reliable construction, the 80 Series Extra Heavy Duty Casters are the perfect choice for rugged industrial applications.
Combined with our 1-inch thick tread, T/R 85A polyurethane wheel, this caster is a versatile solution that brings industrial-strength performance with a softer touch. This specialized formulation is engineered for easy and quiet rolling, making it an ideal choice for a wide range of applications. With its high tear and debris resistance, this wheel ensures exceptional durability and longevity. While offering moderate solvent and oil resistance, it is important to note its lack of water resistance and unsuitability for hot and humid environments due to the risk of microbial attack. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 2800 lbs.

Description

This 10-inch by 3-inch 80 series extra heavy duty caster, is meticulously engineered to withstand the most abusive applications. These casters are designed with heat-treated raceways to prevent brinelling and ensure long-lasting performance. The laser-cut formed legs provide additional strength, making them ideal for applications with side loading or skidding. Crafted with durability in mind, the yoke and top plate are manufactured through a drop forged process using C-1045 steel. The top plate features a machined raceway, while the threaded kingpin and 5-inch diameter machined yoke base raceway enhance stability. Components are heat treated to achieve a hardness of 40 + 2 Rc. The caster is equipped with a 1.25-inch precision tapered thrust bearing pressed over the kingpin, along with hardened ball bearings to complete the load-bearing raceway. With exceptional strength and reliable construction, the 80 Series Extra Heavy Duty Casters are the perfect choice for rugged industrial applications.
Combined with our 1-inch thick tread, T/R 85A polyurethane wheel, this caster is a versatile solution that brings industrial-strength performance with a softer touch. This specialized formulation is engineered for easy and quiet rolling, making it an ideal choice for a wide range of applications. With its high tear and debris resistance, this wheel ensures exceptional durability and longevity. While offering moderate solvent and oil resistance, it is important to note its lack of water resistance and unsuitability for hot and humid environments due to the risk of microbial attack. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 2800 lbs.

Additional information

Weight 55 lbs
