Kingpin
Showing 1–12 of 521 results
-
10×2.5 Dual Wheel Mold On Rubber Swivel Caster
Series: 72Capacity: 1550 lbs.
SKU: 72-10251-70-110x2.5 Dual Wheel Mold On Rubber Swivel Caster
Product Type: CasterSeries: 72Capacity: 1550 lbs.Wheel Material: Mold On RubberWheel Configuration: Dual WheelWheel Width: 2.5"Wheel Diameter: 10"Caster Style: Swivel CasterCaster Type: KingpinOverall Height: 12.5"Swivel Radius: 8.16"Swivel Lead: 2.5"Top Plate Size: 5 x 7.25Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125Bolt Size: 0.5"Bearing Type: Straight Roller BearingSKU: 72-10251-70-1Caster Weight: 42 lbs. -
10×2.5 Dual Wheel Mold On Rubber Swivel Caster
Series: 72Capacity: 1550 lbs.
SKU: 72-10259-70-110x2.5 Dual Wheel Mold On Rubber Swivel Caster
Product Type: CasterSeries: 72Capacity: 1550 lbs.Wheel Material: Mold On RubberWheel Configuration: Dual WheelWheel Width: 2.5"Wheel Diameter: 10"Caster Style: Swivel CasterCaster Type: KingpinOverall Height: 12.5"Swivel Radius: 8.16"Swivel Lead: 2.5"Top Plate Size: 5 x 7.25Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125Bolt Size: 0.5"Bearing Type: Precision Tapered BearingSKU: 72-10259-70-1Caster Weight: 42 lbs. -
10×2.5 Dual Wheel Phenolic Resin Swivel Caster
Series: 72Capacity: 3500 lbs.
SKU: 72-10251-30-110x2.5 Dual Wheel Phenolic Resin Swivel Caster
Product Type: CasterSeries: 72Capacity: 3500 lbs.Wheel Material: Phenolic ResinWheel Configuration: Dual WheelWheel Width: 2.5"Wheel Diameter: 10"Caster Style: Swivel CasterCaster Type: KingpinOverall Height: 12.5"Swivel Radius: 8.16"Swivel Lead: 2.5"Top Plate Size: 5 x 7.25Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125Bolt Size: 0.5"Bearing Type: Straight Roller BearingSKU: 72-10251-30-1Caster Weight: 35 lbs. -
10×2.5 Dual Wheel Phenolic Resin Swivel Caster
$394.73 – $668.78 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 72Capacity: 3500 lbs.
SKU: 72-10259-30-110x2.5 Dual Wheel Phenolic Resin Swivel Caster
Product Type: CasterSeries: 72Capacity: 3500 lbs.Wheel Material: Phenolic ResinWheel Configuration: Dual WheelWheel Width: 2.5"Wheel Diameter: 10"Caster Style: Swivel CasterCaster Type: KingpinOverall Height: 12.5"Swivel Radius: 8.16"Swivel Lead: 2.5"Top Plate Size: 5 x 7.25Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125Bolt Size: 0.5"Bearing Type: Precision Tapered BearingSKU: 72-10259-30-1Caster Weight: 35 lbs. -
10×2.5 Dual Wheel Standard Polyurethane Swivel Caster
$462.77 – $748.70 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 72Capacity: 3500 lbs.
SKU: 72-10251-60-110x2.5 Dual Wheel Standard Polyurethane Swivel Caster
Product Type: CasterSeries: 72Capacity: 3500 lbs.Wheel Material: Standard PolyurethaneWheel Configuration: Dual WheelWheel Type: PolyurethaneWheel Width: 2.5"Wheel Diameter: 10"Caster Style: Swivel CasterCaster Type: KingpinOverall Height: 12.5"Swivel Radius: 8.16"Swivel Lead: 2.5"Top Plate Size: 5 x 7.25Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125Bolt Size: 0.5"Bearing Type: Straight Roller BearingSKU: 72-10251-60-1Caster Weight: 52 lbs. -
10×2.5 Dual Wheel Standard Polyurethane Swivel Caster
Series: 72Capacity: 3500 lbs.
SKU: 72-10259-60-110x2.5 Dual Wheel Standard Polyurethane Swivel Caster
Product Type: CasterSeries: 72Capacity: 3500 lbs.Wheel Material: Standard PolyurethaneWheel Configuration: Dual WheelWheel Type: PolyurethaneWheel Width: 2.5"Wheel Diameter: 10"Caster Style: Swivel CasterCaster Type: KingpinOverall Height: 12.5"Swivel Radius: 8.16"Swivel Lead: 2.5"Top Plate Size: 5 x 7.25Bolt Hole Pattern: 3.375 x 5.25 Slotted to 4.125 x 6.125Bolt Size: 0.5"Bearing Type: Precision Tapered BearingSKU: 72-10259-60-1Caster Weight: 52 lbs. -
10×3 Dual Wheel Cast Iron Swivel Caster
$643.87 – $911.44 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 86Capacity: 6000 lbs.
SKU: 86-10301-10-110x3 Dual Wheel Cast Iron Swivel Caster
Product Type: CasterSeries: 86Capacity: 6000 lbs.Wheel Material: Cast IronWheel Configuration: Dual WheelWheel Width: 3"Wheel Diameter: 10"Caster Style: Swivel CasterCaster Type: KingpinOverall Height: 13"Swivel Radius: 8.29"Swivel Lead: 2.5"Top Plate Size: 6 x 7.5Bolt Hole Pattern: 4.5 x 6Bolt Size: 0.5"Bearing Type: Straight Roller BearingSKU: 86-10301-10-1Caster Weight: 71 lbs. -

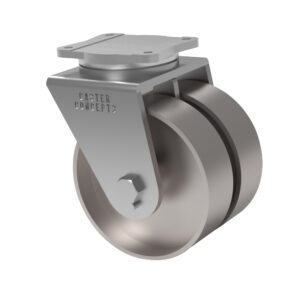

10×3 Dual Wheel Cast Iron Swivel Caster
$605.64 – $873.21 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 86Capacity: 6000 lbs.
SKU: 86-10309-10-110x3 Dual Wheel Cast Iron Swivel Caster
Product Type: CasterSeries: 86Capacity: 6000 lbs.Wheel Material: Cast IronWheel Configuration: Dual WheelWheel Width: 3"Wheel Diameter: 10"Caster Style: Swivel CasterCaster Type: KingpinOverall Height: 13"Swivel Radius: 8.29"Swivel Lead: 2.5"Top Plate Size: 6 x 7.5Bolt Hole Pattern: 4.5 x 6Bolt Size: 0.5"Bearing Type: Precision Tapered BearingSKU: 86-10309-10-1Caster Weight: 71 lbs. -
10×3 Dual Wheel H.D. Forged Steel Swivel Caster
$712.47 – $980.04 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 86Capacity: 10000 lbs.
SKU: 86-10301-21-110x3 Dual Wheel H.D. Forged Steel Swivel Caster
Product Type: CasterSeries: 86Capacity: 10000 lbs.Wheel Material: H.D. Forged SteelWheel Configuration: Dual WheelWheel Width: 3"Wheel Diameter: 10"Caster Style: Swivel CasterCaster Type: KingpinOverall Height: 13"Swivel Radius: 8.29"Swivel Lead: 2.5"Top Plate Size: 6 x 7.5Bolt Hole Pattern: 4.5 x 6Bolt Size: 0.5"Bearing Type: Straight Roller BearingSKU: 86-10301-21-1Caster Weight: 81 lbs. -

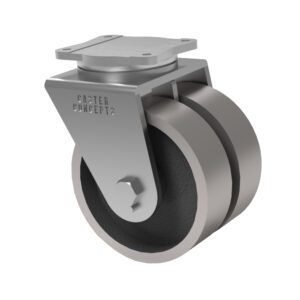

10×3 Dual Wheel H.D. Forged Steel Swivel Caster
$749.38 – $1,016.95 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 86Capacity: 10000 lbs.
SKU: 86-10309-21-110x3 Dual Wheel H.D. Forged Steel Swivel Caster
Product Type: CasterSeries: 86Capacity: 10000 lbs.Wheel Material: H.D. Forged SteelWheel Configuration: Dual WheelWheel Width: 3"Wheel Diameter: 10"Caster Style: Swivel CasterCaster Type: KingpinOverall Height: 13"Swivel Radius: 8.29"Swivel Lead: 2.5"Top Plate Size: 6 x 7.5Bolt Hole Pattern: 4.5 x 6Bolt Size: 0.5"Bearing Type: Precision Tapered BearingSKU: 86-10309-21-1Caster Weight: 81 lbs. -
10×3 Dual Wheel H.D. Forged Steel Swivel Caster
$760.96 – $1,324.69 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 96Capacity: 12000 lbs.
SKU: 96-10301-21-110x3 Dual Wheel H.D. Forged Steel Swivel Caster
Product Type: CasterSeries: 96Capacity: 12000 lbs.Wheel Material: H.D. Forged SteelWheel Configuration: Dual WheelWheel Width: 3"Wheel Diameter: 10"Caster Style: Swivel CasterCaster Type: KingpinOverall Height: 13"Swivel Radius: 8.29"Swivel Lead: 2.5"Top Plate Size: 8.5 x 8.5Bolt Hole Pattern: 7 x 7Bolt Size: 0.625"Bearing Type: Straight Roller BearingSKU: 96-10301-21-1Caster Weight: 123 lbs. -
10×3 Dual Wheel H.D. Forged Steel Swivel Caster
$1,220.68 – $1,836.16 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*Series: 96Capacity: 13000 lbs.
SKU: 96-10309-21-110x3 Dual Wheel H.D. Forged Steel Swivel Caster
Product Type: CasterSeries: 96Capacity: 13000 lbs.Wheel Material: H.D. Forged SteelWheel Configuration: Dual WheelWheel Width: 3"Wheel Diameter: 10"Caster Style: Swivel CasterCaster Type: KingpinOverall Height: 13"Swivel Radius: 8.29"Swivel Lead: 2.5"Top Plate Size: 8.5 x 8.5Bolt Hole Pattern: 7 x 7Bolt Size: 0.625"Bearing Type: Precision Tapered BearingSKU: 96-10309-21-1Caster Weight: 123 lbs.
