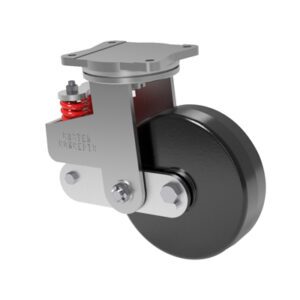

8×3 Phenolic Resin Spring Loaded Rigid Caster

SKU: 84-08301-30-2
  • Load rating of 2500 lbs.
  • Overall height of 11.5 inches
  • Phenolic Resin Wheel - Known for its high heat resistance, dimensional stability, and low rolling resistance.

Categories: , , Tags:


Specifications

Product Type: Caster
Series: 84
Capacity: 2,500 lbs.
Caster Material: Steel
Wheel Material: Phenolic Resin
Wheel Configuration: Single Wheel
Wheel Width: 3.00"
Wheel Diameter: 8.00"
Caster Style: Rigid Caster
Caster Type: Spring Loaded
Overall Height: 11.50"
*Temperature Range (Continuous): '-50 to 300°F
*Temperature Range (Intermittent): '-50 to 300°F
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Straight Roller Bearing
SKU: 84-08301-30-2
Caster Weight: 42 lbs.
*High temperature grease must be used over 200°F

Product Description

This 8-inch by 3-inch 84 series Vertical Mounted Spring-Loaded caster provides exceptional shock absorption and vertical movement capabilities, making them perfect for navigating uneven surfaces and protecting fragile or vibration-sensitive loads. With expertly determined spring deflection, they offer optimal performance without causing harm. Crafted with high-strength chrome vanadium springs, these rigid casters ensure durability and cushioned loads.
Paired with a Phenolic Resin wheel, that is crafted from high-quality phenolic resin material, this wheel delivers exceptional strength, durability, and heat resistance. With superior load-bearing capacity and impact resistance, it ensures stability and reliability during movement. Also, with its precision tapered bearing you get the added benefit of your wheel being able to handle both axial and radial loads making them ideal for manufacturing, warehousing, and automotive industries. Its chemical resistance and low rolling resistance guarantee longevity, smooth maneuverability, and dependable performance. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 2500 lbs.

Description

This 8-inch by 3-inch 84 series Vertical Mounted Spring-Loaded caster provides exceptional shock absorption and vertical movement capabilities, making them perfect for navigating uneven surfaces and protecting fragile or vibration-sensitive loads. With expertly determined spring deflection, they offer optimal performance without causing harm. Crafted with high-strength chrome vanadium springs, these rigid casters ensure durability and cushioned loads.
Paired with a Phenolic Resin wheel, that is crafted from high-quality phenolic resin material, this wheel delivers exceptional strength, durability, and heat resistance. With superior load-bearing capacity and impact resistance, it ensures stability and reliability during movement. Also, with its precision tapered bearing you get the added benefit of your wheel being able to handle both axial and radial loads making them ideal for manufacturing, warehousing, and automotive industries. Its chemical resistance and low rolling resistance guarantee longevity, smooth maneuverability, and dependable performance. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 2500 lbs.

Additional information

Weight 42 lbs
