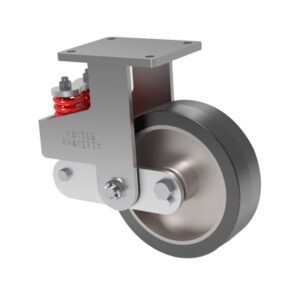

8×3 Mold On Rubber Spring Loaded Swivel Caster

SKU: 84-08301-70-1
  • Load rating of 850 lbs.
  • Overall height of 11.5 inches
  • Mold On Rubber - Rubber tread molded onto a wheel core, providing cushioning, shock absorption, and traction. Offers a smooth and quiet ride.

Categories: , , Tags:


Specifications

Product Type: Caster
Series: 84
Capacity: 850 lbs.
Caster Material: Steel
Wheel Material: Mold On Rubber
Wheel Configuration: Single Wheel
Wheel Width: 3"
Wheel Diameter: 8"
Caster Style: Swivel Caster
Caster Type: Spring Loaded
Overall Height: 11.5"
Swivel Radius: 7.16"
Swivel Lead: 3"
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Straight Roller Bearing
SKU: 84-08301-70-1
Caster Weight: 47 lbs.

Product Description

This 8-inch by 3-inch 84 series Vertical Mounted Spring-Loaded caster provides exceptional shock absorption and vertical movement capabilities, making them perfect for navigating uneven surfaces and protecting fragile or vibration-sensitive loads. With expertly determined spring deflection, they offer optimal performance without causing harm. Crafted with high-strength chrome vanadium springs, they ensure durability and cushioned loads, while the long swivel lead reduces vibration during towing.

In addition, the Mold-On Rubber wheel combines the strength and resilience of rubber with a robust wheel core for exceptional performance. With superior traction, shock absorption, and non-marking properties, these caster wheels provide smooth and controlled movement while protecting floors. Engineered to withstand heavy loads, they offer durability and longevity, thanks to the securely bonded mold-on rubber tread and solid wheel core. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 850 lbs.

Description

This 8-inch by 3-inch 84 series Vertical Mounted Spring-Loaded caster provides exceptional shock absorption and vertical movement capabilities, making them perfect for navigating uneven surfaces and protecting fragile or vibration-sensitive loads. With expertly determined spring deflection, they offer optimal performance without causing harm. Crafted with high-strength chrome vanadium springs, they ensure durability and cushioned loads, while the long swivel lead reduces vibration during towing.

In addition, the Mold-On Rubber wheel combines the strength and resilience of rubber with a robust wheel core for exceptional performance. With superior traction, shock absorption, and non-marking properties, these caster wheels provide smooth and controlled movement while protecting floors. Engineered to withstand heavy loads, they offer durability and longevity, thanks to the securely bonded mold-on rubber tread and solid wheel core. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 850 lbs.

Additional information

Weight 47 lbs
