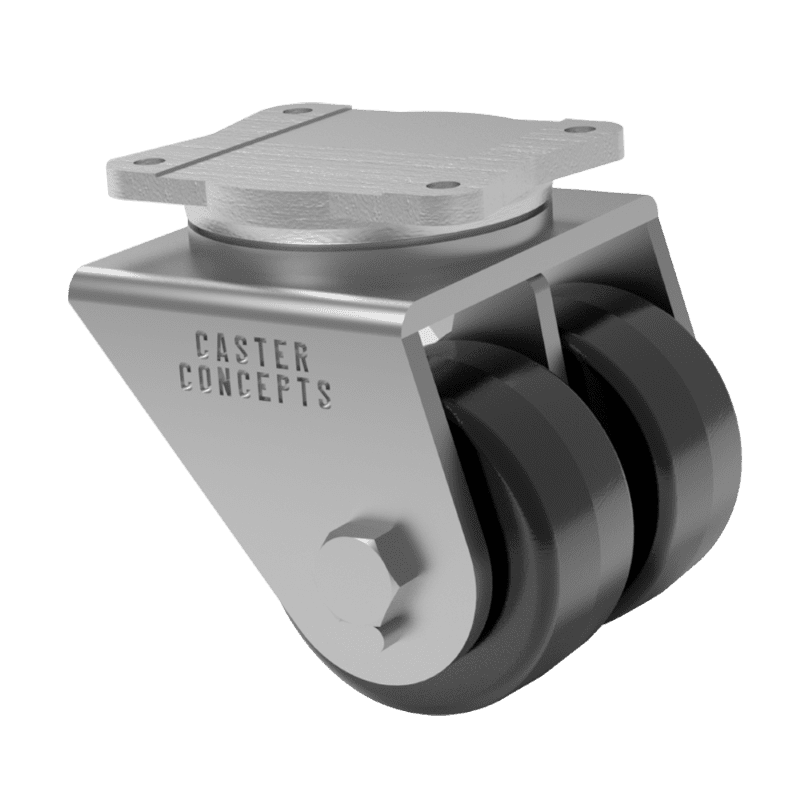

8×3 Dual Wheel Phenolic Resin Swivel Caster

SKU: 82-08301-30-1
  • Load rating of 5000 lbs.
  • Overall height of 11 inches
  • Phenolic Resin Wheel - Known for its high heat resistance, dimensional stability, and low rolling resistance.

$662.39$640.46 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , Tags:


Specifications

Product Type: Caster
Series: 82
Capacity: 5,000 lbs.
Caster Material: Steel
Wheel Material: Phenolic Resin
Wheel Configuration: Dual Wheel
Wheel Width: 3"
Wheel Diameter: 8"
Caster Style: Swivel Caster
Caster Type: Kingpin
Overall Height: 11"
Swivel Radius: 7.4"
Swivel Lead: 2.5"
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Straight Roller Bearing
SKU: 82-08301-30-1
Caster Weight: 40 lbs.

Product Description

This 8-inch by 3-inch 82 series Dual Wheel caster is engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes. For uneven surfaces, our dual wheel casters with oscillating axles adapt seamlessly, ensuring stability and performance.

Paired with a Phenolic Resin wheel, that is crafted from high-quality phenolic resin material, this wheel delivers exceptional strength, durability, and heat resistance. With superior load-bearing capacity and impact resistance, it ensures stability and reliability during movement. Also, with its precision tapered bearing you get the added benefit of your wheel being able to handle both axial and radial loads making them ideal for manufacturing, warehousing, and automotive industries. Its chemical resistance and low rolling resistance guarantee longevity, smooth maneuverability, and dependable performance. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 5000 lbs.

Description

This 8-inch by 3-inch 82 series Dual Wheel caster is engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes. For uneven surfaces, our dual wheel casters with oscillating axles adapt seamlessly, ensuring stability and performance.

Paired with a Phenolic Resin wheel, that is crafted from high-quality phenolic resin material, this wheel delivers exceptional strength, durability, and heat resistance. With superior load-bearing capacity and impact resistance, it ensures stability and reliability during movement. Also, with its precision tapered bearing you get the added benefit of your wheel being able to handle both axial and radial loads making them ideal for manufacturing, warehousing, and automotive industries. Its chemical resistance and low rolling resistance guarantee longevity, smooth maneuverability, and dependable performance. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 5000 lbs.

Additional information

Weight 40 lbs
