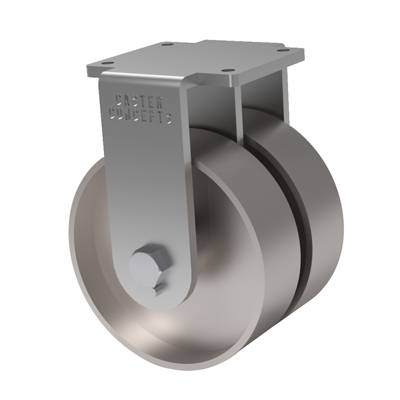

8×3 Dual Wheel Cast Iron Rigid Caster

SKU: 82-08309-10-2
  • Load rating of 5000 lbs.
  • Overall height of 11 inches
  • Cast Iron Wheel - Durable and strong wheel material with high load-bearing capacity, suitable for heavy-duty applications. Resistant to wear and abrasion.

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 82
Capacity: 5,000 lbs.
Caster Material: Steel
Wheel Material: Cast Iron
Wheel Configuration: Dual Wheel
Wheel Width: 3.00"
Wheel Diameter: 8.00"
Caster Style: Rigid Caster
Overall Height: 11.00"
*Temperature Range (Continuous): '-40 to 320°F
*Temperature Range (Intermittent): '-40 to 320°F
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Precision Tapered Bearing
SKU: 82-08309-10-2
Caster Weight: 62 lbs.
*High temperature grease must be used over 200°F

Product Description

This 8-inch by 3-inch 82 series Dual Wheel caster is engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these fixed casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes. For uneven surfaces, our dual wheel casters with oscillating axles adapt seamlessly, ensuring stability and performance.
The wheels are constructed of premium Class 30 gray iron for maximum load capacity and impact strength. They feature heavy cross section castings for heavy duty use, abrasion resistance and a long service life. Each wheel is precision machined with rounded edges to finished tolerance. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 5000 lbs.

Description

This 8-inch by 3-inch 82 series Dual Wheel caster is engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these fixed casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes. For uneven surfaces, our dual wheel casters with oscillating axles adapt seamlessly, ensuring stability and performance.
The wheels are constructed of premium Class 30 gray iron for maximum load capacity and impact strength. They feature heavy cross section castings for heavy duty use, abrasion resistance and a long service life. Each wheel is precision machined with rounded edges to finished tolerance. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 5000 lbs.

Additional information

Weight 62 lbs
