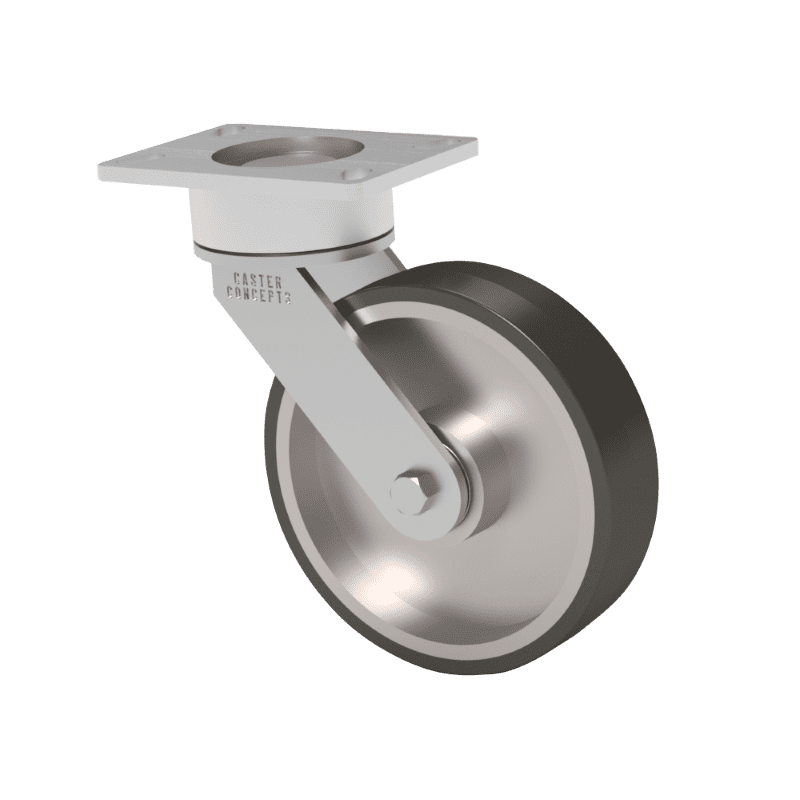

8×2 T/R-95 Polyurethane Maintenance Free Swivel Caster
NOTICE: You must be logged in to download a CAD Model.
You can create an account or login using the links below. Once you're logged in we'll bring you back here.
Specifications
Product Type: Caster
Series: 57EXT
Capacity: 1200 lbs.
Caster Material: Steel
Wheel Material: T/R-95 Polyurethane
Wheel Configuration: Single Wheel
Wheel Type: Polyurethane
Wheel Width: 2"
Wheel Diameter: 8"
Caster Style: Swivel Caster
Caster Type: Maintenance Free
Overall Height: 10.13"
Swivel Radius: 7.57"
Swivel Lead: 3.5"
Top Plate Size: 4.5 x 6.25
Bolt Hole Pattern: 2.438 x 4.938 Slotted to 3.375 x 5.25
Bolt Size: 0.5"
Bearing Type: Precision Ball Bearing
SKU: 57EXT-08202-91-1
Caster Weight: 16.94 lbs.
Product Description
This 8-inch by 2-inch 57 Series caster with extended swivel lead was designed to improve material handling operations through increased ergonomics. This caster combines exceptional strength, durability, and maneuverability for challenging environments. The extended swivel lead provides enhanced maneuverability and precise control, significantly improving ergonomic conditions for operators. By reducing the force and effort required to move carts or equipment, it minimizes operator fatigue and the risk of injuries.
The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 1200 lbs.
Description
This 8-inch by 2-inch 57 Series caster with extended swivel lead was designed to improve material handling operations through increased ergonomics. This caster combines exceptional strength, durability, and maneuverability for challenging environments. The extended swivel lead provides enhanced maneuverability and precise control, significantly improving ergonomic conditions for operators. By reducing the force and effort required to move carts or equipment, it minimizes operator fatigue and the risk of injuries.
The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 1200 lbs.
