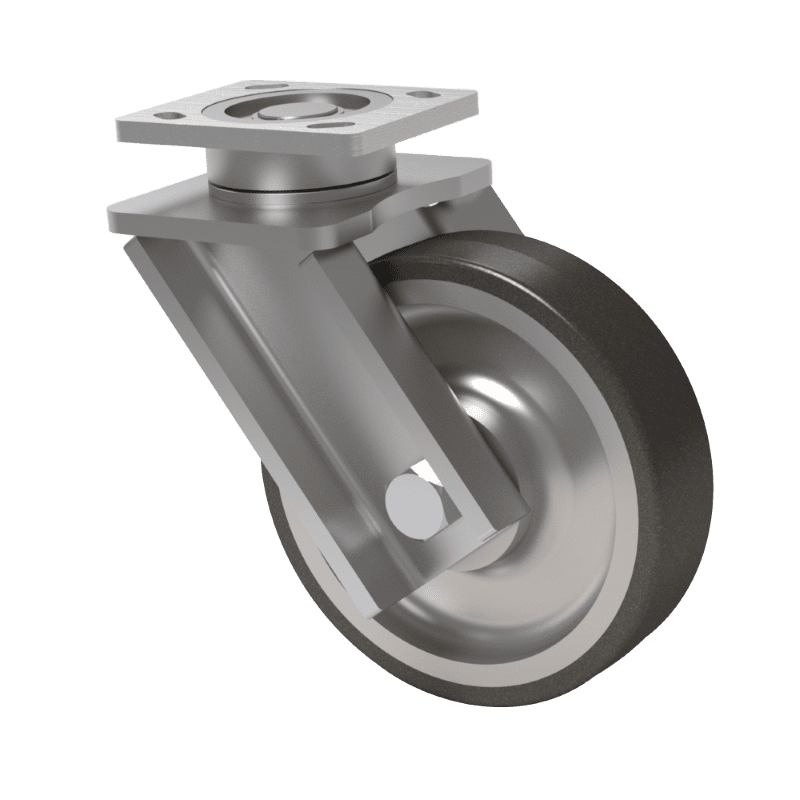

Picture may not be an exact representation of actual product*
8×2 Hercules T/R-95 Polyurethane Swivel Caster
NOTICE: You must be logged in to download a CAD Model.
You can create an account or login using the links below. Once you're logged in we'll bring you back here.
Specifications
Product Type: Caster
Series: 55XRL
Capacity: 1,000 lbs.
Caster Material: Steel
Wheel Material: T/R-95 Polyurethane
Wheel Configuration: Single Wheel
Wheel Width: 2"
Wheel Diameter: 8"
Caster Style: Swivel Caster
Caster Type: Kingpinless
Overall Height: 10.13"
Swivel Radius: 6.08"
Swivel Lead: 2"
Brand: Hercules
Top Plate Size: 4 x 5
Bolt Hole Pattern: 2.625 x 3.625 Slotted to 3 x 3
Bolt Size: 0.375"
Bearing Type: Precision Ball Bearing
SKU: 55XRL-08202-91-1
Caster Weight: 25.92 lbs.
Product Description
This 8-inch by 2-inch 55 series Hercules caster was created for the most demanding material handling applications. Designed to withstand severe side or impact loading and conquer surface challenges such as potholes or debris, these reinforced casters provide exceptional protection and performance. With reinforced legs and a maintenance-free swivel section equipped with sealed precision ball bearings, Hercules Casters ensure prolonged use and minimize replacement costs. Featuring a smooth rotating action and extended lead, they reduce ergonomic forces and provide optimal functionality.
The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 1000 lbs.
Description
This 8-inch by 2-inch 55 series Hercules caster was created for the most demanding material handling applications. Designed to withstand severe side or impact loading and conquer surface challenges such as potholes or debris, these reinforced casters provide exceptional protection and performance. With reinforced legs and a maintenance-free swivel section equipped with sealed precision ball bearings, Hercules Casters ensure prolonged use and minimize replacement costs. Featuring a smooth rotating action and extended lead, they reduce ergonomic forces and provide optimal functionality.
The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 1000 lbs.
