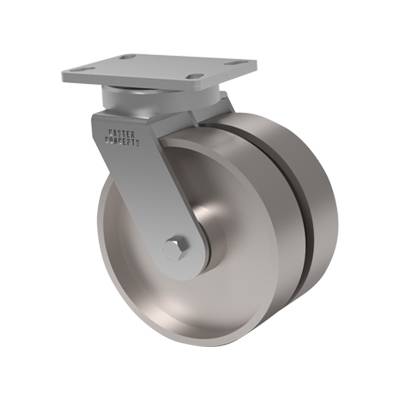

8×2 Dual Wheel Cast Iron Swivel Caster

SKU: 2-61-08201-10-1
  • Load rating of 3000 lbs.
  • Overall height of 10.13 inches
  • Cast Iron Wheel - Durable and strong wheel material with high load-bearing capacity, suitable for heavy-duty applications. Resistant to wear and abrasion.

$195.00$325.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 61
Capacity: 3,000 lbs.
Caster Material: Steel
Wheel Material: Cast Iron
Wheel Configuration: Dual Wheel
Wheel Width: 2"
Wheel Diameter: 8"
Caster Style: Swivel Caster
Caster Type: Kingpinless
Overall Height: 10.13"
Swivel Radius: 6.67"
Swivel Lead: 2.25"
Top Plate Size: 4.5 x 6.25
Bolt Hole Pattern: 2.438 x 4.938 Slotted to 3.375 x 5.25
Bolt Size: 0.5"
Bearing Type: Straight Roller Bearing
SKU: 2-61-08201-10-1
Caster Weight: 26 lbs.

Product Description

This 8-inch by 2-inch 61 series kingpinless caster, is a highly utilized and reliable industrial solution that offers exceptional value for rugged applications. This caster is renowned for its simplicity and ability to withstand demanding industrial environments with prevalent shock loading. The swivel section features heat-treated inner and outer rings, precisely aligned using high-quality 1/2 inch hardened ball bearings. This robust construction provides outstanding strength and ensures smooth operation even when swiveling under heavy loads. The kingpinless style caster is particularly sought after when manual ergonomic operation is required. Its design and functionality make it a preferred choice for industrial applications.



Dual Wheel Casters

Dual Wheel Caster configurations are engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes.

The wheels are constructed of premium Class 30 gray iron for maximum load capacity and impact strength. They feature heavy cross section castings for heavy duty use, abrasion resistance and a long service life. Each wheel is precision machined with rounded edges to finished tolerance. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 3000 lbs.

Description

This 8-inch by 2-inch 61 series kingpinless caster, is a highly utilized and reliable industrial solution that offers exceptional value for rugged applications. This caster is renowned for its simplicity and ability to withstand demanding industrial environments with prevalent shock loading. The swivel section features heat-treated inner and outer rings, precisely aligned using high-quality 1/2 inch hardened ball bearings. This robust construction provides outstanding strength and ensures smooth operation even when swiveling under heavy loads. The kingpinless style caster is particularly sought after when manual ergonomic operation is required. Its design and functionality make it a preferred choice for industrial applications.

Dual Wheel Casters

Dual Wheel Caster configurations are engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes.

The wheels are constructed of premium Class 30 gray iron for maximum load capacity and impact strength. They feature heavy cross section castings for heavy duty use, abrasion resistance and a long service life. Each wheel is precision machined with rounded edges to finished tolerance. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 3000 lbs.

Additional information

Weight 26 lbs
