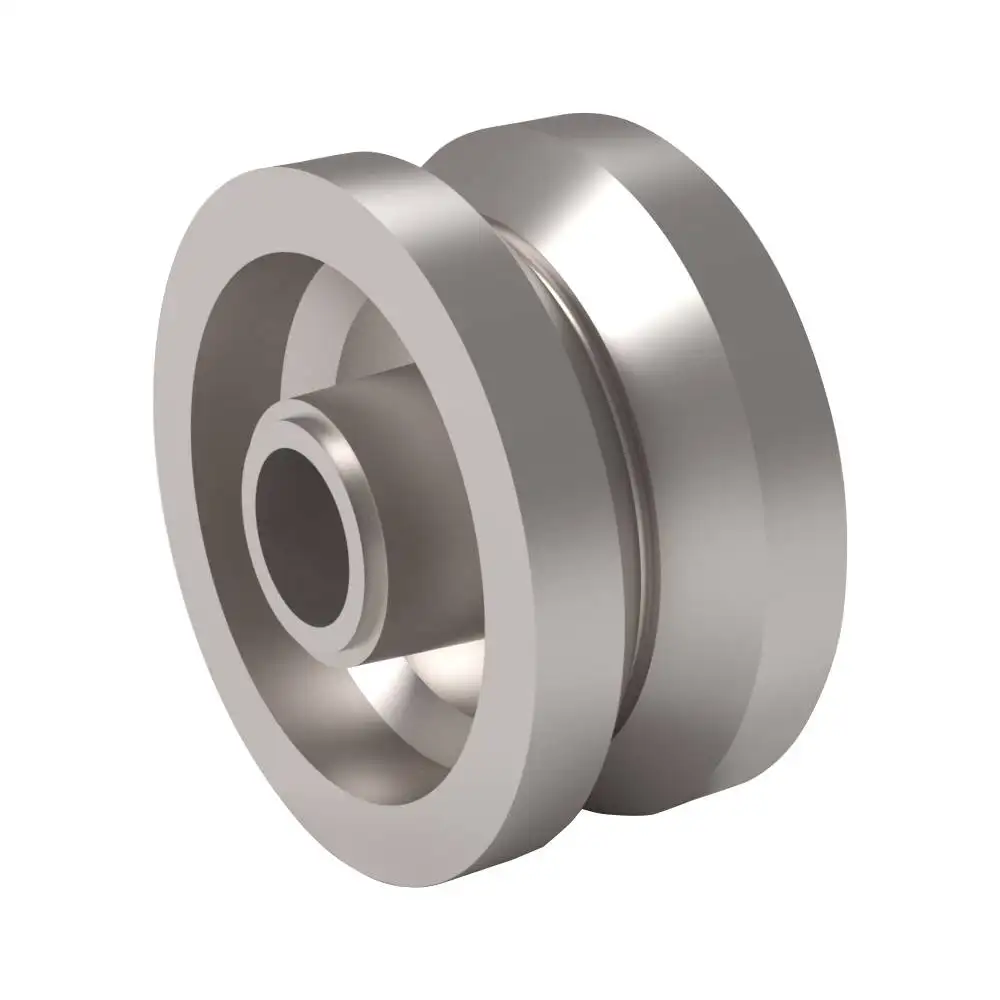

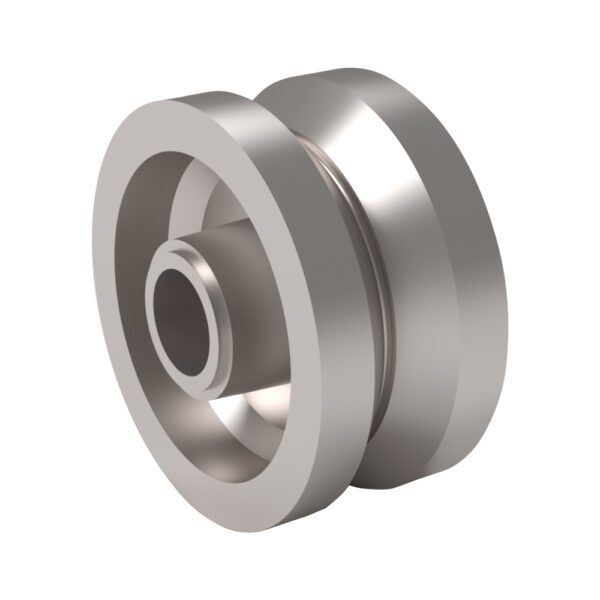

6×3 V-Groove H.D. Forged Steel Caster Wheel

SKU: 06309-26-24
  • Load rating of 15000 lbs.
  • Cast Iron Wheel - Durable and strong wheel material with high load-bearing capacity, suitable for heavy-duty applications. Resistant to wear and abrasion.

$270.44$337.73 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Category:


Specifications

Product Type: Wheel
Capacity: 15,000 lbs.
Wheel Material: H.D. Forged Steel
Wheel Type: V-Groove
Wheel Width: 3"
Wheel Diameter: 6"
*Temperature Range (Continuous): -30 to 250°F
Bearing Type: Precision Tapered Bearing
Hub Length: 3.5
Bore: 1.5
Width X Depth: 1 3/8 x 11/16
SKU: 06309-26-24
Caster Weight: 20 lbs.
*High temperature grease must be used over 200°F

Product Description

These 6-inch by 3-inch V-Groove, H.D. Forged Steel wheels are used for exceptionally heavy loads where precise alignment, indexing, or equipment is necessary. A relief groove at the base of the "V" distributes the load evenly on both sides of the angle track. The wheel faces and "V" grooves are machined concentrically to the bore for proper tracking. These little giants with a load capacity of 15000 lbs. are commonly used in industrial environments such as production lines and manufacturing. They aslo can be used in sliding/rolling gates and heavy-duty assembly line plants where high-temperature soldering and welding is done.

Description

These 6-inch by 3-inch V-Groove, H.D. Forged Steel wheels are used for exceptionally heavy loads where precise alignment, indexing, or equipment is necessary. A relief groove at the base of the “V” distributes the load evenly on both sides of the angle track. The wheel faces and “V” grooves are machined concentrically to the bore for proper tracking. These little giants with a load capacity of 15000 lbs. are commonly used in industrial environments such as production lines and manufacturing. They aslo can be used in sliding/rolling gates and heavy-duty assembly line plants where high-temperature soldering and welding is done.

Additional information

Weight 20 lbs
