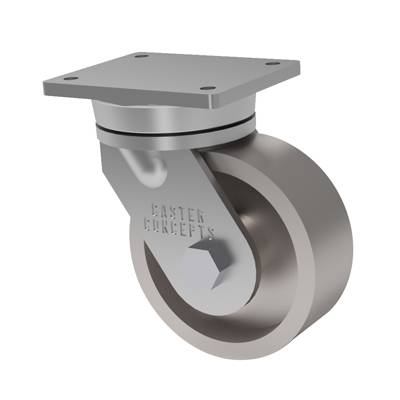

6×3 Cast Iron Swivel Caster

SKU: 81-06301-10-1
  • Load rating of 2500 lbs.
  • Overall height of 8.5 inches
  • Cast Iron Wheel - Durable and strong wheel material with high load-bearing capacity, suitable for heavy-duty applications. Resistant to wear and abrasion.

$491.69$651.30 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 81
Capacity: 2,500 lbs.
Caster Material: Steel
Wheel Material: Cast Iron
Wheel Configuration: Single Wheel
Wheel Width: 3"
Wheel Diameter: 6"
Caster Style: Swivel Caster
Caster Type: Kingpinless
Overall Height: 8.5"
Swivel Radius: 5.7"
Swivel Lead: 2.5"
Top Plate Size: 6 x 7.5
Bolt Hole Pattern: 4.5 x 6
Bolt Size: 0.5"
Bearing Type: Straight Roller Bearing
SKU: 81-06301-10-1
Caster Weight: 36 lbs.

Product Description

This 6-inch by 3-inch 81 series kingpinless caster, is renowned for it's unique single ball race design that ensures a high-strength swivel section. These casters are valued for their simplicity and ability to withstand challenging industrial applications with prevalent shock loading. The top plate and yoke base are securely aligned using 3/4 inch high-quality hardened ball bearings, enabling smooth and reliable swiveling. The longevity of these casters is enhanced by their effortless swiveling, result in years of low-cost operation. Manufactured through a drop forged process with C-1045 steel, the yoke and top plate exhibit exceptional strength. The swivel section features a precision-machined 4-inch single ball bearing and a load/thrust raceway in a kingpinless style, where the 3/4 inch diameter load/thrust ball bearings are positioned in shear load, effectively locking the swivel section. Additionally, a mechanical shield safeguards the swivel section from contamination, ensuring reliable performance in demanding environments. 81 Series Kingpinless Casters offer a winning combination of strength, simplicity, and longevity, making them an ideal choice for industrial applications.

The wheels are constructed of premium Class 30 gray iron for maximum load capacity and impact strength. They feature heavy cross section castings for heavy duty use, abrasion resistance and a long service life. Each wheel is precision machined with rounded edges to finished tolerance. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 2500 lbs.

Description

This 6-inch by 3-inch 81 series kingpinless caster, is renowned for it’s unique single ball race design that ensures a high-strength swivel section. These casters are valued for their simplicity and ability to withstand challenging industrial applications with prevalent shock loading. The top plate and yoke base are securely aligned using 3/4 inch high-quality hardened ball bearings, enabling smooth and reliable swiveling. The longevity of these casters is enhanced by their effortless swiveling, result in years of low-cost operation. Manufactured through a drop forged process with C-1045 steel, the yoke and top plate exhibit exceptional strength. The swivel section features a precision-machined 4-inch single ball bearing and a load/thrust raceway in a kingpinless style, where the 3/4 inch diameter load/thrust ball bearings are positioned in shear load, effectively locking the swivel section. Additionally, a mechanical shield safeguards the swivel section from contamination, ensuring reliable performance in demanding environments. 81 Series Kingpinless Casters offer a winning combination of strength, simplicity, and longevity, making them an ideal choice for industrial applications.

The wheels are constructed of premium Class 30 gray iron for maximum load capacity and impact strength. They feature heavy cross section castings for heavy duty use, abrasion resistance and a long service life. Each wheel is precision machined with rounded edges to finished tolerance. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 2500 lbs.

Additional information

Weight 36 lbs
