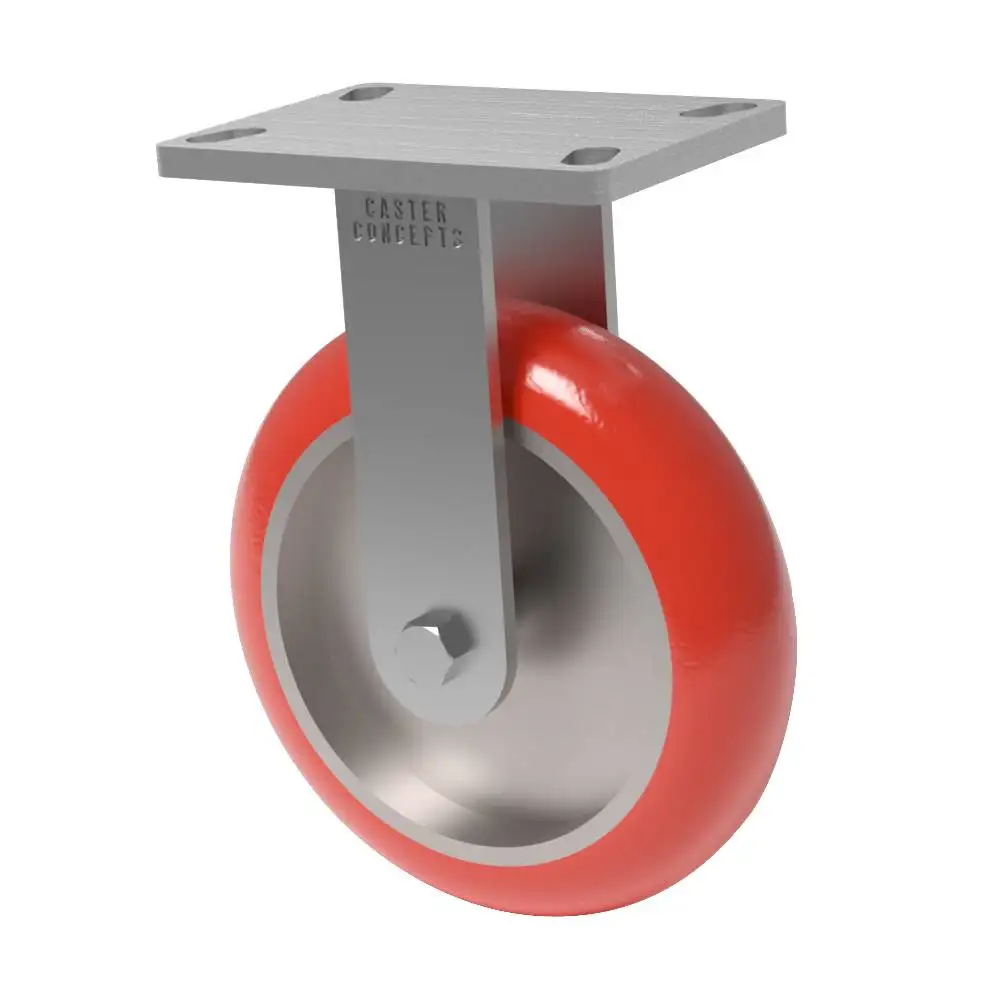

Picture may not be an exact representation of actual product*
6×2 Round Tread T/R Polyurethane Rigid Caster
NOTICE: You must be logged in to download a CAD Model.
You can create an account or login using the links below. Once you're logged in we'll bring you back here.
Specifications
Product Type: Caster
Series: 57
Capacity: 800 lbs.
Caster Material: Steel
Wheel Material: T/R Polyurethane
Wheel Configuration: Single Wheel
Wheel Type: Round Tread
Wheel Width: 2.00"
Wheel Diameter: 6.00"
Caster Style: Rigid Caster
Overall Height: 8.31"
*Temperature Range (Continuous): -50 to 200°F
*Temperature Range (Intermittent): -50 to 175°F
Top Plate Size: 4.5 x 6.25
Bolt Hole Pattern: 2.438 x 4.938 Slotted to 3.375 x 5.25
Bolt Size: 0.5"
Bearing Type: Precision Ball Bearing
SKU: 57-06202-51-2
Caster Weight: 12 lbs.
*High temperature grease must be used over 200°F
Product Description
This 6-inch by 2-inch 57 series caster, is engineered for exceptional performance and reduced ergonomic forces. The legs, made from 1/4" x 2" steel, are continuously welded both inside and outside the yoke base, ensuring robust construction. With a 1/2" diameter axle, this caster delivers smooth rotation and reliable operation.
Combined with a T/R 85A polyurethane wheel, this caster is a versatile solution that brings industrial-strength performance with a softer touch. This specialized formulation is engineered for easy and quiet rolling, making it an ideal choice for a wide range of applications. With its high tear and debris resistance, this wheel ensures exceptional durability and longevity. While offering moderate solvent and oil resistance, it is important to note its lack of water resistance and unsuitability for hot and humid environments due to the risk of microbial attack. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 800 lbs.
Description
This 6-inch by 2-inch 57 series caster, is engineered for exceptional performance and reduced ergonomic forces. The legs, made from 1/4″ x 2″ steel, are continuously welded both inside and outside the yoke base, ensuring robust construction. With a 1/2″ diameter axle, this caster delivers smooth rotation and reliable operation.
Combined with a T/R 85A polyurethane wheel, this caster is a versatile solution that brings industrial-strength performance with a softer touch. This specialized formulation is engineered for easy and quiet rolling, making it an ideal choice for a wide range of applications. With its high tear and debris resistance, this wheel ensures exceptional durability and longevity. While offering moderate solvent and oil resistance, it is important to note its lack of water resistance and unsuitability for hot and humid environments due to the risk of microbial attack. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 800 lbs.
