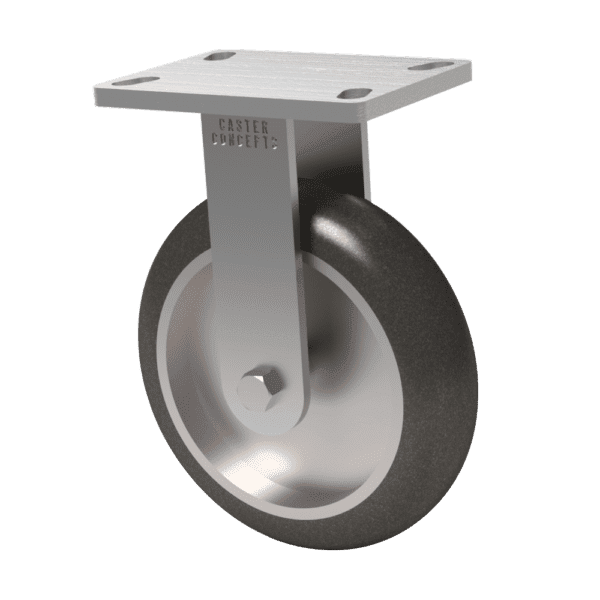

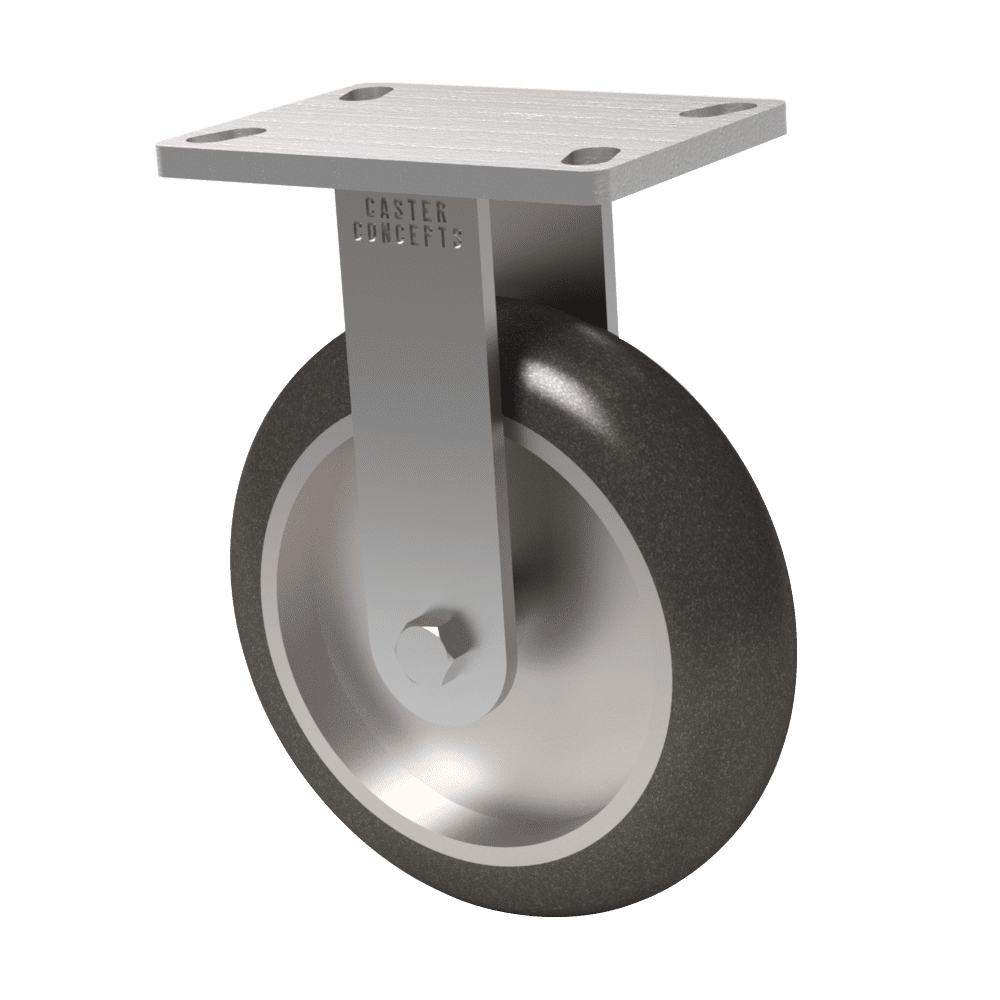

6×2 Round Tread T/R-95 Polyurethane Rigid Caster

SKU: 57-06202-56-2
  • Load rating of 1100 lbs.
  • Overall height of 8.31 inches
  • T/R 95A PU Wheel - High tear resistance, extended wear, ergonomic benefits, good solvent and oil resistance. (Shore 95A Hardness)

$91.00$227.50 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*

Categories: , , , , Tag:


Specifications

Product Type: Caster
Series: 57
Capacity: 1100 lbs.
Caster Material: Steel
Wheel Material: T/R-95 Polyurethane
Wheel Configuration: Single Wheel
Wheel Type: Round Tread
Wheel Width: 2.00"
Wheel Diameter: 6.00"
Caster Style: Rigid Caster
Overall Height: 8.31"
*Temperature Range (Continuous): -50 to 200°F
*Temperature Range (Intermittent): -50 to 175°F
Top Plate Size: 4.5 x 6.25
Bolt Hole Pattern: 2.438 x 4.938 Slotted to 3.375 x 5.25
Bolt Size: 0.5"
Bearing Type: Precision Ball Bearing
SKU: 57-06202-56-2
Caster Weight: 12 lbs.
*High temperature grease must be used over 200°F

Product Description

This 6-inch by 2-inch 57 series caster, is engineered for exceptional performance and reduced ergonomic forces. The legs, made from 1/4" x 2" steel, are continuously welded both inside and outside the yoke base, ensuring robust construction. With a 1/2" diameter axle, this caster delivers smooth rotation and reliable operation.
The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 1100 lbs.

Description

This 6-inch by 2-inch 57 series caster, is engineered for exceptional performance and reduced ergonomic forces. The legs, made from 1/4″ x 2″ steel, are continuously welded both inside and outside the yoke base, ensuring robust construction. With a 1/2″ diameter axle, this caster delivers smooth rotation and reliable operation.
The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 1100 lbs.

Additional information

Weight 12 lbs
