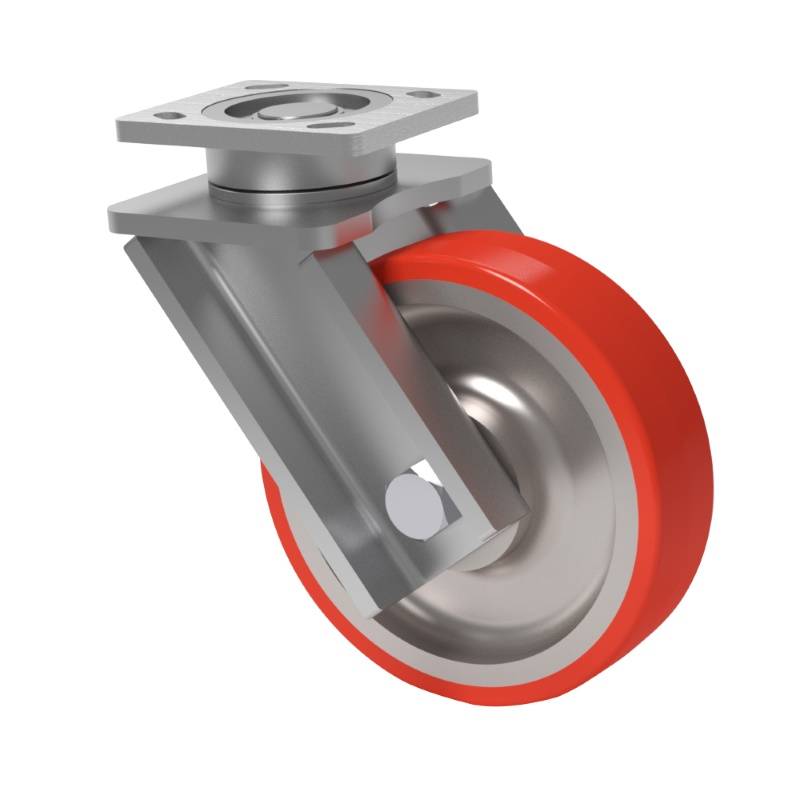

Picture may not be an exact representation of actual product*
6×2 Hercules T/R Polyurethane Swivel Caster
NOTICE: You must be logged in to download a CAD Model.
You can create an account or login using the links below. Once you're logged in we'll bring you back here.
Specifications
Product Type: Caster
Series: 57XRL
Capacity: 960 lbs.
Caster Material: Steel
Wheel Material: T/R Polyurethane
Wheel Configuration: Single Wheel
Wheel Width: 2"
Wheel Diameter: 6"
Caster Style: Swivel Caster
Caster Type: Maintenance Free
Overall Height: 8.5"
Swivel Radius: 5.84"
Swivel Lead: 2.75"
Brand: Hercules
Top Plate Size: 4.5 x 6.25
Bolt Hole Pattern: 2.438 x 4.938 Slotted to 3.375 x 5.25
Bolt Size: 0.5"
Bearing Type: Precision Ball Bearing
SKU: 57XRL-06202-61-1
Caster Weight: 22.15 lbs.
Product Description
This 6-inch by 2-inch 57 series Hercules caster was created for the most demanding material handling applications. Designed to withstand severe side or impact loading and conquer surface challenges such as potholes or debris, these reinforced casters provide exceptional protection and performance. With reinforced legs and a maintenance-free swivel section equipped with sealed precision ball bearings, Hercules Casters ensure prolonged use and minimize replacement costs. Featuring a smooth rotating action and extended lead, they reduce ergonomic forces and provide optimal functionality.
Combined with a T/R 85A polyurethane wheel, this caster is a versatile solution that brings industrial-strength performance with a softer touch. This specialized formulation is engineered for easy and quiet rolling, making it an ideal choice for a wide range of applications. With its high tear and debris resistance, this wheel ensures exceptional durability and longevity. While offering moderate solvent and oil resistance, it is important to note its lack of water resistance and unsuitability for hot and humid environments due to the risk of microbial attack. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 960 lbs.
Description
This 6-inch by 2-inch 57 series Hercules caster was created for the most demanding material handling applications. Designed to withstand severe side or impact loading and conquer surface challenges such as potholes or debris, these reinforced casters provide exceptional protection and performance. With reinforced legs and a maintenance-free swivel section equipped with sealed precision ball bearings, Hercules Casters ensure prolonged use and minimize replacement costs. Featuring a smooth rotating action and extended lead, they reduce ergonomic forces and provide optimal functionality.
Combined with a T/R 85A polyurethane wheel, this caster is a versatile solution that brings industrial-strength performance with a softer touch. This specialized formulation is engineered for easy and quiet rolling, making it an ideal choice for a wide range of applications. With its high tear and debris resistance, this wheel ensures exceptional durability and longevity. While offering moderate solvent and oil resistance, it is important to note its lack of water resistance and unsuitability for hot and humid environments due to the risk of microbial attack. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 960 lbs.
