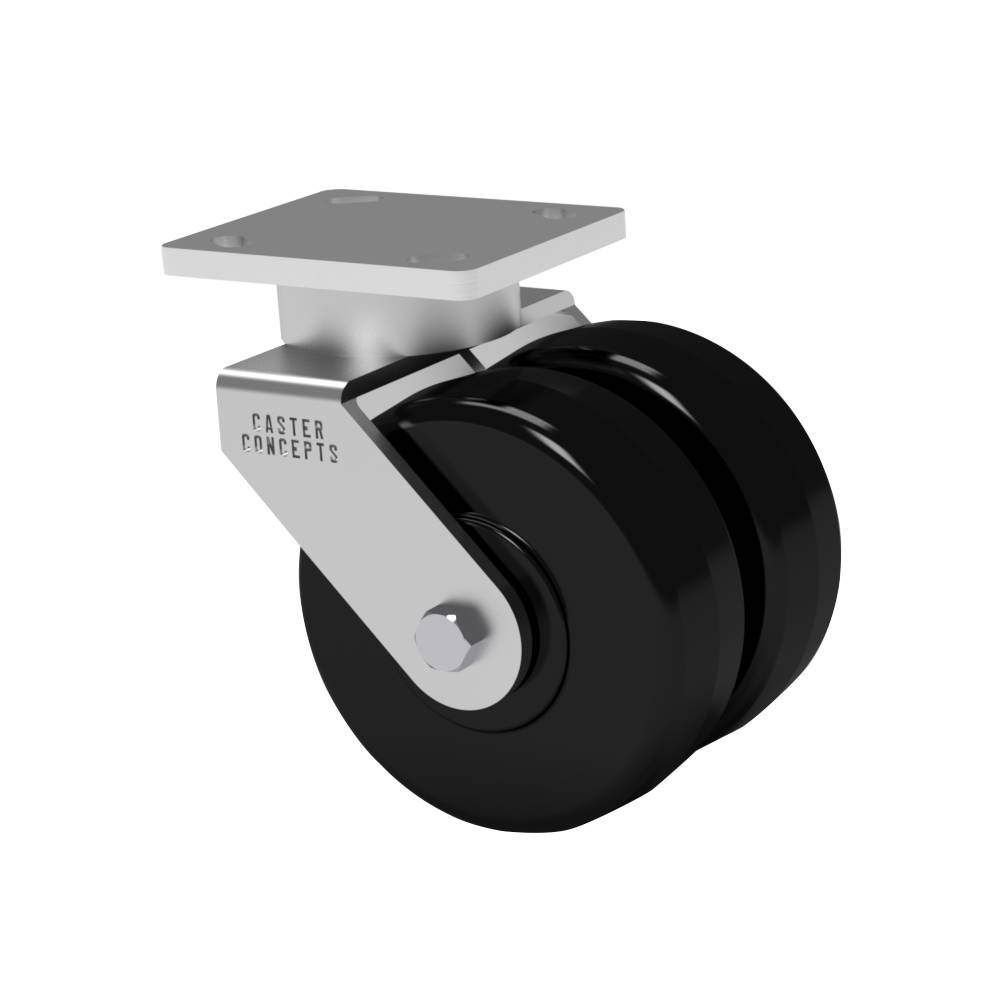

6×2 Dual Wheel Phenolic Resin Swivel Caster

SKU: 2-51-06201-30-1
  • Load rating of 1500 lbs.
  • Overall height of 7.5 inches
  • Phenolic Resin Wheel - Known for its high heat resistance, dimensional stability, and low rolling resistance.

$118.30$227.50 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , Tags:


Specifications

Product Type: Caster
Series: 51
Capacity: 1,500 lbs.
Caster Material: Steel
Wheel Material: Phenolic Resin
Wheel Configuration: Dual Wheel
Wheel Width: 2"
Wheel Diameter: 6"
Caster Style: Swivel Caster
Caster Type: Kingpinless
Overall Height: 7.5"
Swivel Radius: 5.97"
Swivel Lead: 2.5"
Top Plate Size: 4 x 5
Bolt Hole Pattern: 2.625 x 3.625 Slotted to 3 x 3
Bolt Size: 0.375"
Bearing Type: Straight Roller Bearing
SKU: 2-51-06201-30-1
Caster Weight: 13 lbs.

Product Description

This 6-inch by 2-inch 51 series kingpinless caster, is a reliable and cost-effective solution for demanding industrial applications. Renowned for its durability and minimal maintenance requirements, this caster is a valuable investment that reduces downtime and maintenance costs. Designed to withstand abusive environments with prevalent shock loading, it offers a tough and resilient performance. The swivel section of the caster features heat-treated inner and outer rings, securely aligned by high-quality hardened 3/8 inch ball bearings. This construction ensures exceptional strength and smooth operation even under heavy loads. The kingpinless style caster is particularly favored for applications where manual ergonomic operation is crucial, thanks to its effortless swiveling capability. The hardened alloy swivel sections and robust formed and welded legs provide outstanding strength and durability, making the Series 51 caster ideal for challenging industrial environments.



Dual Wheel Casters

Dual Wheel Caster configurations are engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes.

Paired with a Phenolic Resin wheel, that is crafted from high-quality phenolic resin material, this wheel delivers exceptional strength, durability, and heat resistance. With superior load-bearing capacity and impact resistance, it ensures stability and reliability during movement. Also, with its precision tapered bearing you get the added benefit of your wheel being able to handle both axial and radial loads making them ideal for manufacturing, warehousing, and automotive industries. Its chemical resistance and low rolling resistance guarantee longevity, smooth maneuverability, and dependable performance. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 1500 lbs.

Description

This 6-inch by 2-inch 51 series kingpinless caster, is a reliable and cost-effective solution for demanding industrial applications. Renowned for its durability and minimal maintenance requirements, this caster is a valuable investment that reduces downtime and maintenance costs. Designed to withstand abusive environments with prevalent shock loading, it offers a tough and resilient performance. The swivel section of the caster features heat-treated inner and outer rings, securely aligned by high-quality hardened 3/8 inch ball bearings. This construction ensures exceptional strength and smooth operation even under heavy loads. The kingpinless style caster is particularly favored for applications where manual ergonomic operation is crucial, thanks to its effortless swiveling capability. The hardened alloy swivel sections and robust formed and welded legs provide outstanding strength and durability, making the Series 51 caster ideal for challenging industrial environments.

Dual Wheel Casters

Dual Wheel Caster configurations are engineered for exceptional load capacity, stability, and versatility in demanding industrial applications. With a dual wheel configuration and low overall height, these casters offer the highest capacity while maintaining space efficiency. Our casters ensure even weight distribution, reducing pressure on flooring and ground surfaces to prevent damage. The innovative design allows for the use of smaller diameter dual wheels, providing optimal load distribution and effortless directional changes.

Paired with a Phenolic Resin wheel, that is crafted from high-quality phenolic resin material, this wheel delivers exceptional strength, durability, and heat resistance. With superior load-bearing capacity and impact resistance, it ensures stability and reliability during movement. Also, with its precision tapered bearing you get the added benefit of your wheel being able to handle both axial and radial loads making them ideal for manufacturing, warehousing, and automotive industries. Its chemical resistance and low rolling resistance guarantee longevity, smooth maneuverability, and dependable performance. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 1500 lbs.

Additional information

Weight 13 lbs
