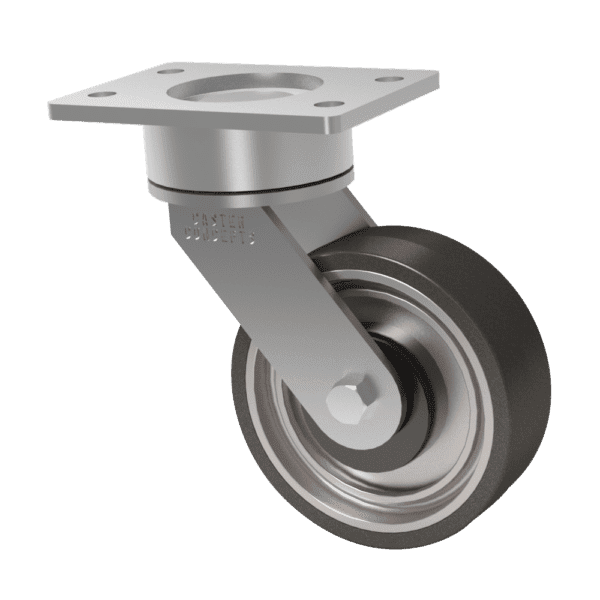

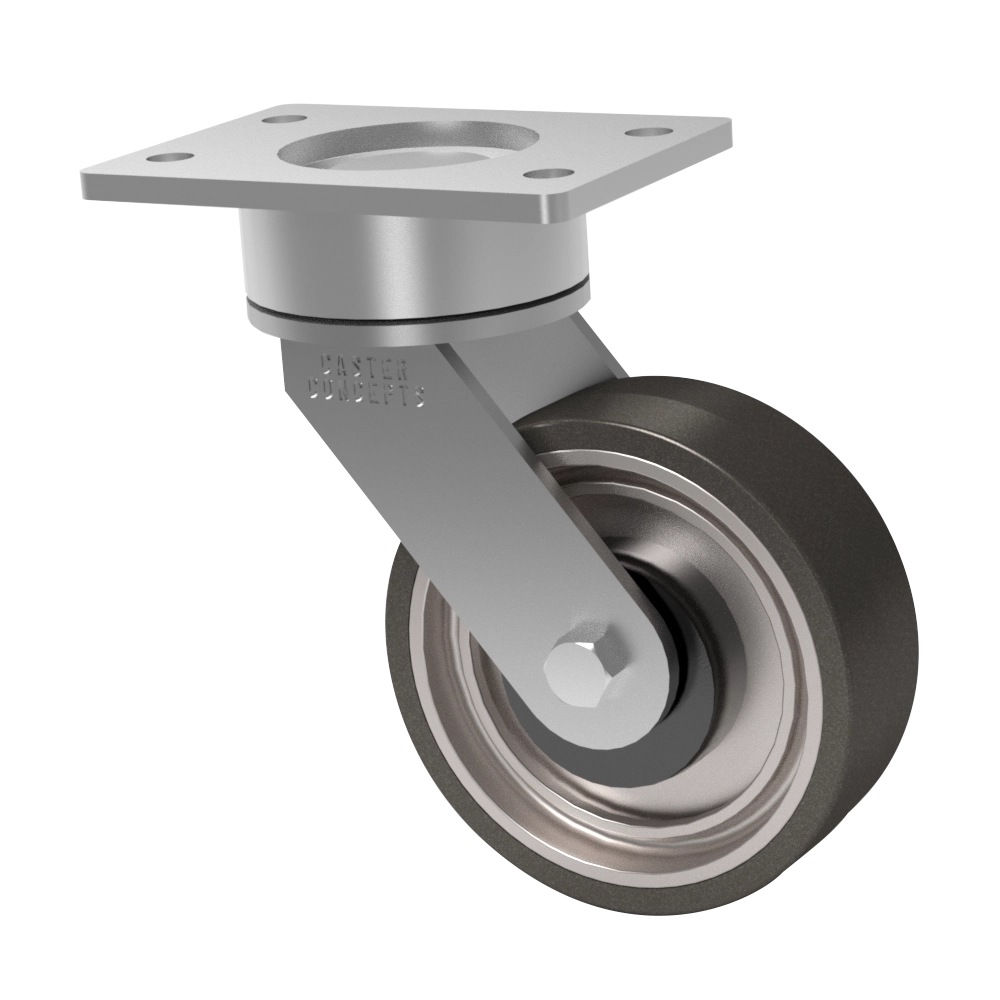

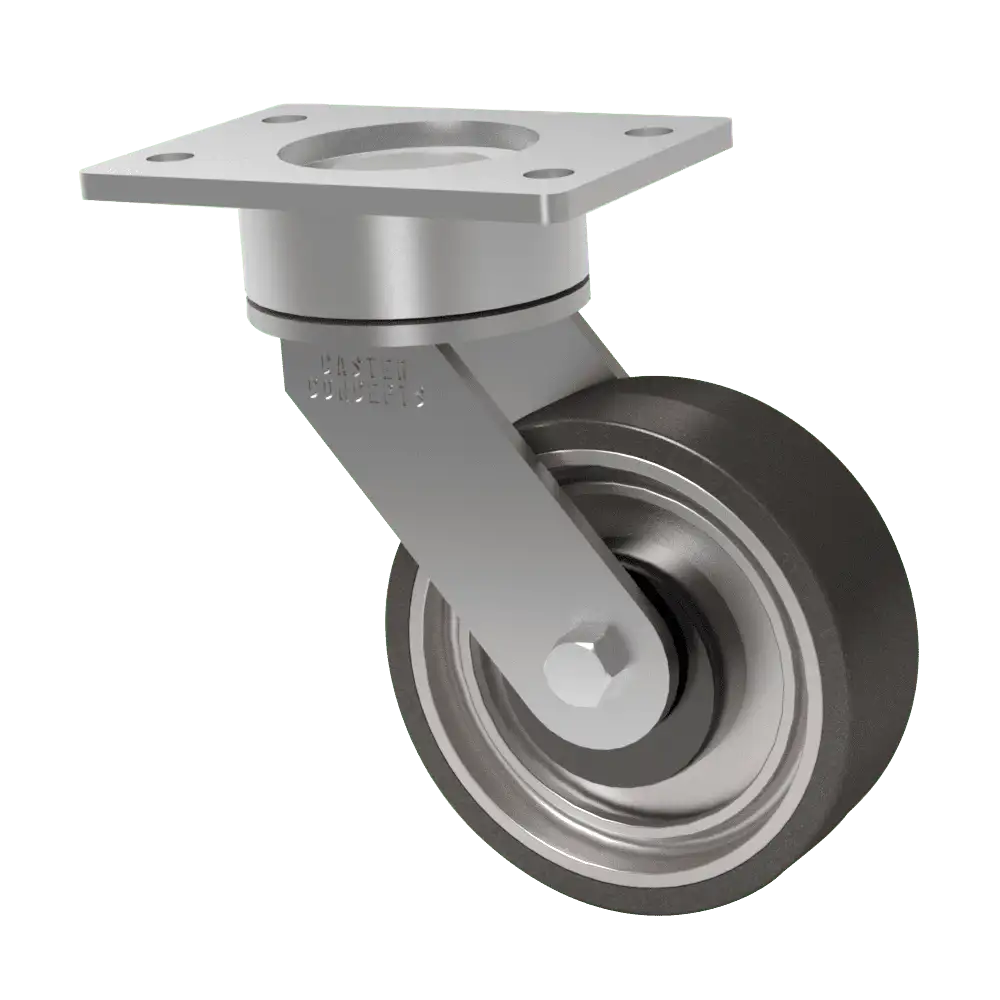

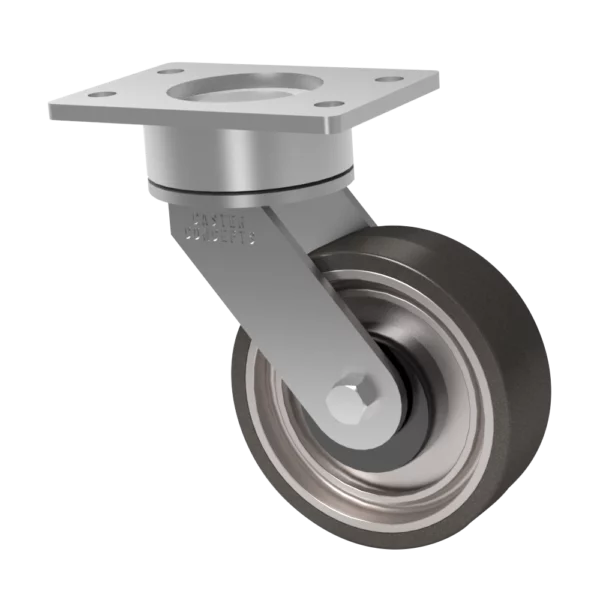

6×2 CasterShoX T/R-95 Polyurethane Swivel Caster

SKU: 57-06202-91-1XD7
  • Load rating of 400 lbs.
  • Overall height of 8.5 inches
  • T/R 95A PU Wheel - High tear resistance, extended wear, ergonomic benefits, good solvent and oil resistance. (Shore 95A Hardness)

$91.00$325.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , , Tags:


Specifications

Product Type: Caster
Series: 57
Capacity: 400 lbs.
Caster Material: Steel
Wheel Material: T/R-95 Polyurethane
Wheel Configuration: Single Wheel
Wheel Type: CasterShoX
Wheel Width: 2"
Wheel Diameter: 6"
Caster Style: Swivel Caster
Caster Type: Maintenance Free
Overall Height: 8.5"
Swivel Radius: 5.84"
Swivel Lead: 2.75"
Brand: CasterShoX
Top Plate Size: 4.5 x 6.25
Bolt Hole Pattern: 2.438 x 4.938 Slotted to 3.375 x 5.25
Bolt Size: 0.5"
Bearing Type: Precision Ball Bearing
SKU: 57-06202-91-1XD7
Caster Weight: 11.57 lbs.

Product Description

This 6-inch by 2-inch 57 series caster provides the ultimate maintenance free combination. The swivel section is made from a high quality precision ball bearing. The raceways of the bearing are hardened for long life and the bearing is then sealed with neoprene seals to assure protection from contamination. No greasing is necessary. The smooth swivel action combined with an extended lead, help to lower ergonomic forces and minimize employee injuries.



CasterShoX Wheels

CasterShoX are the superior choice for reducing shock loads and noise in manufacturing environments. This patented design combines spring technology and polymer dampening to deliver unmatched performance. With an impressive 80% reduction in shock loads and a 15-decibel decrease in noise, CasterShoX creates a quieter and safer workplace. Retrofitting carts is effortless, as these casters fit seamlessly into the existing space. They excel in transporting fragile components and provide added value in ergonomic situations. Furthermore, CasterShoX helps businesses comply with OSHA regulations by increasing allowable exposure time for workers. Upgrade to CasterShoX and experience unparalleled shock load reduction, noise dampening, and ergonomic benefits for a more efficient and compliant workplace. The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 400 lbs.

Description

This 6-inch by 2-inch 57 series caster provides the ultimate maintenance free combination. The swivel section is made from a high quality precision ball bearing. The raceways of the bearing are hardened for long life and the bearing is then sealed with neoprene seals to assure protection from contamination. No greasing is necessary. The smooth swivel action combined with an extended lead, help to lower ergonomic forces and minimize employee injuries.

CasterShoX Wheels

CasterShoX are the superior choice for reducing shock loads and noise in manufacturing environments. This patented design combines spring technology and polymer dampening to deliver unmatched performance. With an impressive 80% reduction in shock loads and a 15-decibel decrease in noise, CasterShoX creates a quieter and safer workplace. Retrofitting carts is effortless, as these casters fit seamlessly into the existing space. They excel in transporting fragile components and provide added value in ergonomic situations. Furthermore, CasterShoX helps businesses comply with OSHA regulations by increasing allowable exposure time for workers. Upgrade to CasterShoX and experience unparalleled shock load reduction, noise dampening, and ergonomic benefits for a more efficient and compliant workplace. The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 400 lbs.

Additional information

Weight 11.57 lbs
