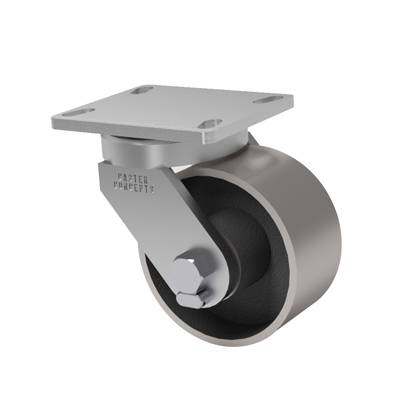

6×2.5 Forged Steel Swivel Caster

SKU: 61-06251-20-1HT3
  • Load rating of 3500 lbs.
  • Continuous use applications up to 350° F
  • Overall height of 7.5 inches
  • Cast Iron Wheel - Durable and strong wheel material with high load-bearing capacity, suitable for heavy-duty applications. Resistant to wear and abrasion.

$280.87 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , , Tags:


Specifications

SKU: 61-06251-20-1HT3
Caster Weight: 22 lbs.

Product Description

This 6-inch by 2.5-inch 61 series kingpinless caster, is a highly utilized and reliable industrial solution that offers exceptional value for rugged applications. This caster is renowned for its simplicity and ability to withstand demanding industrial environments with prevalent shock loading. The swivel section features heat-treated inner and outer rings, precisely aligned using high-quality 1/2 inch hardened ball bearings. This robust construction provides outstanding strength and ensures smooth operation even when swiveling under heavy loads. The kingpinless style caster is particularly sought after when manual ergonomic operation is required. Its design and functionality make it a preferred choice for industrial applications.

Combined with Forged Steel wheels, these casters become a powerhouse solution for heavy-duty industrial applications. These wheels are hot forged from high carbon steel billets, enhancing their grain structure, ductility, and tensile strength (64,000 psi). With precision machining, they meet tight tolerances, ensuring flat surfaces with rounded edges. Offering the greatest load capacity, impact strength, and rollability among caster wheels. With the proper wheels and bearings, these wheels are capable of withstanding temperatures up to 800 degrees. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 3500 lbs.

Description

This 6-inch by 2.5-inch 61 series kingpinless caster, is a highly utilized and reliable industrial solution that offers exceptional value for rugged applications. This caster is renowned for its simplicity and ability to withstand demanding industrial environments with prevalent shock loading. The swivel section features heat-treated inner and outer rings, precisely aligned using high-quality 1/2 inch hardened ball bearings. This robust construction provides outstanding strength and ensures smooth operation even when swiveling under heavy loads. The kingpinless style caster is particularly sought after when manual ergonomic operation is required. Its design and functionality make it a preferred choice for industrial applications.

Combined with Forged Steel wheels, these casters become a powerhouse solution for heavy-duty industrial applications. These wheels are hot forged from high carbon steel billets, enhancing their grain structure, ductility, and tensile strength (64,000 psi). With precision machining, they meet tight tolerances, ensuring flat surfaces with rounded edges. Offering the greatest load capacity, impact strength, and rollability among caster wheels. With the proper wheels and bearings, these wheels are capable of withstanding temperatures up to 800 degrees. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 3500 lbs.

Additional information

Weight 22 lbs
