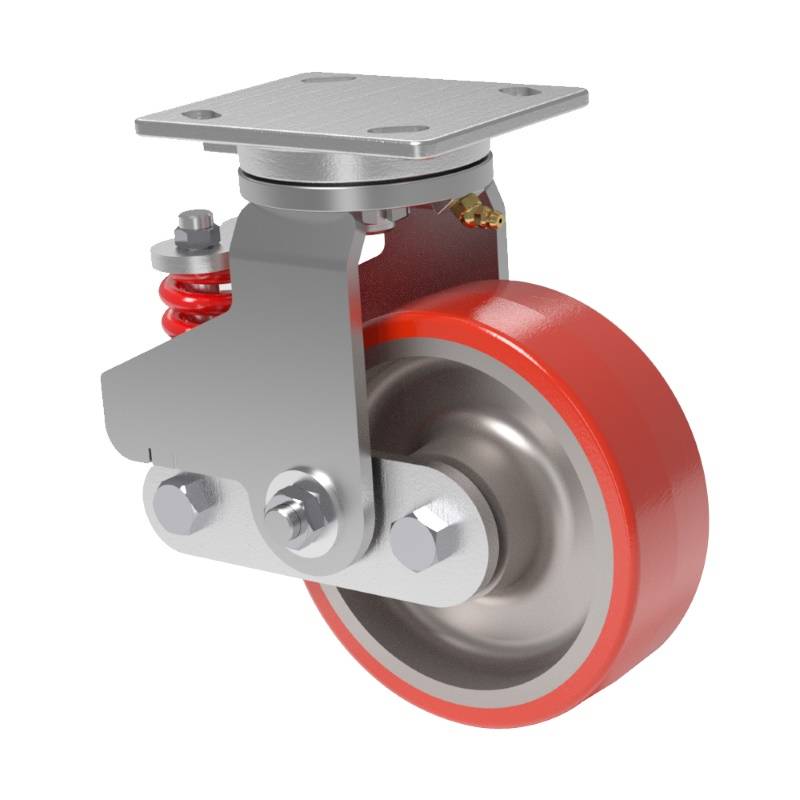

Picture may not be an exact representation of actual product*
5×2 T/R Polyurethane Swivel Caster
NOTICE: You must be logged in to download a CAD Model.
You can create an account or login using the links below. Once you're logged in we'll bring you back here.
Specifications
Product Type: Caster
Series: 55
Capacity: 840 lbs.
Caster Material: Steel
Wheel Material: T/R Polyurethane
Wheel Configuration: Single Wheel
Wheel Type: Polyurethane
Wheel Width: 2"
Wheel Diameter: 5"
Caster Style: Swivel Caster
Caster Type: Kingpinless
Overall Height: 6.5"
Swivel Radius: 4.61"
Swivel Lead: 2"
Top Plate Size: 4 x 5
Bolt Hole Pattern: 2.625 x 3.625 Slotted to 3 x 3
Bolt Size: 0.375"
Bearing Type: Precision Ball Bearing
SKU: 55-05202-61-1
Caster Weight: 10.25 lbs.
Product Description
This 5-inch by 2-inch 55 series caster provides the ultimate maintenance free combination. The swivel section is made from a high quality precision ball bearing. The raceways of the bearing are hardened for long life and the bearing is then sealed with neoprene seals to assure protection from contamination. No greasing is necessary. The smooth swivel action combined with an extended lead, help to lower ergonomic forces and minimize employee injuries.
Combined with a T/R 85A polyurethane wheel, this caster is a versatile solution that brings industrial-strength performance with a softer touch. This specialized formulation is engineered for easy and quiet rolling, making it an ideal choice for a wide range of applications. With its high tear and debris resistance, this wheel ensures exceptional durability and longevity. While offering moderate solvent and oil resistance, it is important to note its lack of water resistance and unsuitability for hot and humid environments due to the risk of microbial attack. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 840 lbs.
Description
This 5-inch by 2-inch 55 series caster provides the ultimate maintenance free combination. The swivel section is made from a high quality precision ball bearing. The raceways of the bearing are hardened for long life and the bearing is then sealed with neoprene seals to assure protection from contamination. No greasing is necessary. The smooth swivel action combined with an extended lead, help to lower ergonomic forces and minimize employee injuries.
Combined with a T/R 85A polyurethane wheel, this caster is a versatile solution that brings industrial-strength performance with a softer touch. This specialized formulation is engineered for easy and quiet rolling, making it an ideal choice for a wide range of applications. With its high tear and debris resistance, this wheel ensures exceptional durability and longevity. While offering moderate solvent and oil resistance, it is important to note its lack of water resistance and unsuitability for hot and humid environments due to the risk of microbial attack. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 840 lbs.
