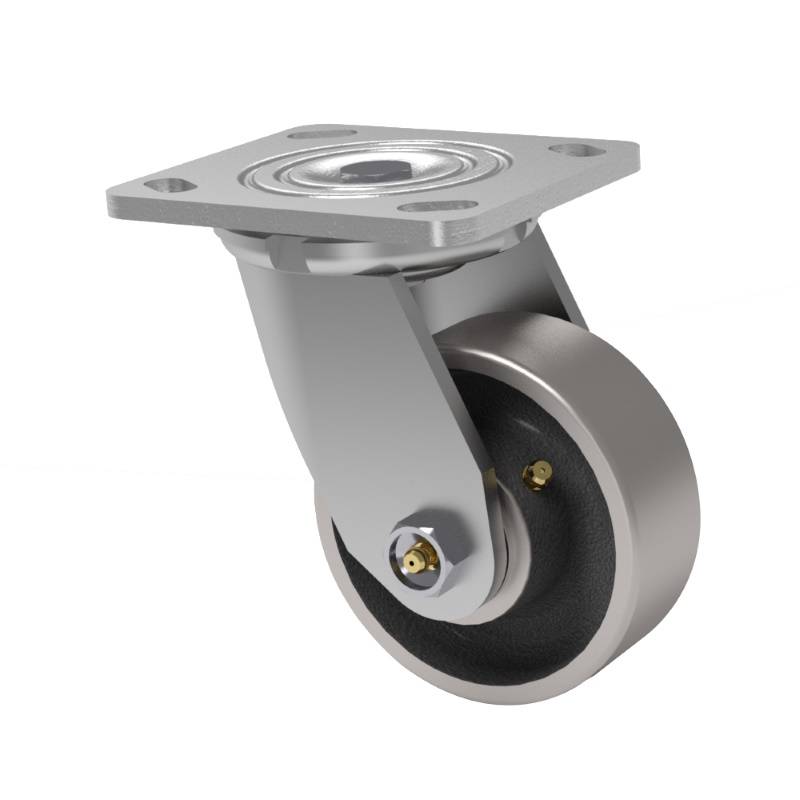

5×2 Forged Steel Swivel Caster

SKU: 51-05201-20-1HT
  • Load rating of 1500 lbs.
  • Continuous use applications up to 250° F
  • Cast Iron Wheel - Durable and strong wheel material with high load-bearing capacity, suitable for heavy-duty applications. Resistant to wear and abrasion.

$138.48$400.17 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , , Tags:


Specifications

Product Type: Caster
Series: 51
Capacity: 1,500 lbs.
Caster Material: Steel
Wheel Material: Forged Steel
Wheel Configuration: Single Wheel
Wheel Width: 2"
Wheel Diameter: 5"
Caster Style: Swivel Caster
Caster Type: Kingpinless
Overall Height: 6.5"
Swivel Radius: 4.37"
Swivel Lead: 1.75"
Top Plate Size: 4 x 5
Bolt Hole Pattern: 2.625 x 3.625 Slotted to 3 x 3
Bolt Size: 0.375"
Bearing Type: Straight Roller Bearing
SKU: 51-05201-20-1HT
Caster Weight: 10.2 lbs.

Product Description

This 5-inch by 2-inch 51 series kingpinless caster, is a reliable and cost-effective solution for demanding industrial applications. Renowned for its durability and minimal maintenance requirements, this caster is a valuable investment that reduces downtime and maintenance costs. Designed to withstand abusive environments with prevalent shock loading, it offers a tough and resilient performance. The swivel section of the caster features heat-treated inner and outer rings, securely aligned by high-quality hardened 3/8 inch ball bearings. This construction ensures exceptional strength and smooth operation even under heavy loads. The kingpinless style caster is particularly favored for applications where manual ergonomic operation is crucial, thanks to its effortless swiveling capability. The hardened alloy swivel sections and robust formed and welded legs provide outstanding strength and durability, making the Series 51 caster ideal for challenging industrial environments.



Combined with Forged Steel wheels, these casters become a powerhouse solution for heavy-duty industrial applications. These wheels are hot forged from high carbon steel billets, enhancing their grain structure, ductility, and tensile strength (64,000 psi). With precision machining, they meet tight tolerances, ensuring flat surfaces with rounded edges. Offering the greatest load capacity, impact strength, and rollability among caster wheels. With the proper wheels and bearings, these wheels are capable of withstanding temperatures up to 800 degrees. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 1500 lbs.

Description

This 5-inch by 2-inch 51 series kingpinless caster, is a reliable and cost-effective solution for demanding industrial applications. Renowned for its durability and minimal maintenance requirements, this caster is a valuable investment that reduces downtime and maintenance costs. Designed to withstand abusive environments with prevalent shock loading, it offers a tough and resilient performance. The swivel section of the caster features heat-treated inner and outer rings, securely aligned by high-quality hardened 3/8 inch ball bearings. This construction ensures exceptional strength and smooth operation even under heavy loads. The kingpinless style caster is particularly favored for applications where manual ergonomic operation is crucial, thanks to its effortless swiveling capability. The hardened alloy swivel sections and robust formed and welded legs provide outstanding strength and durability, making the Series 51 caster ideal for challenging industrial environments.

Combined with Forged Steel wheels, these casters become a powerhouse solution for heavy-duty industrial applications. These wheels are hot forged from high carbon steel billets, enhancing their grain structure, ductility, and tensile strength (64,000 psi). With precision machining, they meet tight tolerances, ensuring flat surfaces with rounded edges. Offering the greatest load capacity, impact strength, and rollability among caster wheels. With the proper wheels and bearings, these wheels are capable of withstanding temperatures up to 800 degrees. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 1500 lbs.

Additional information

Weight 10.2 lbs
