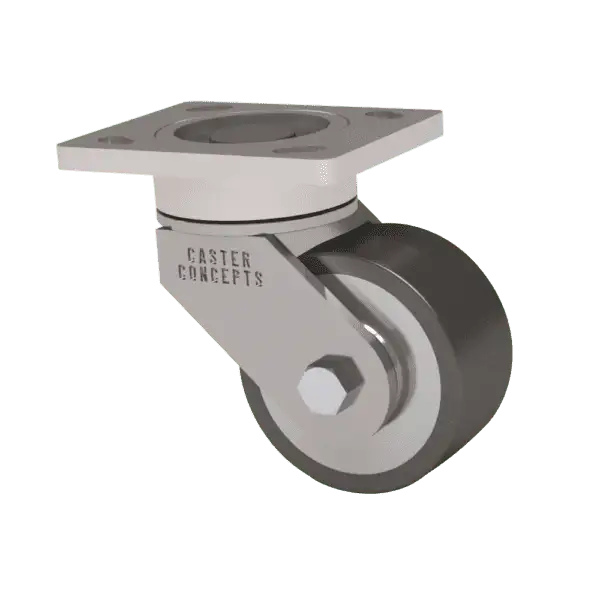

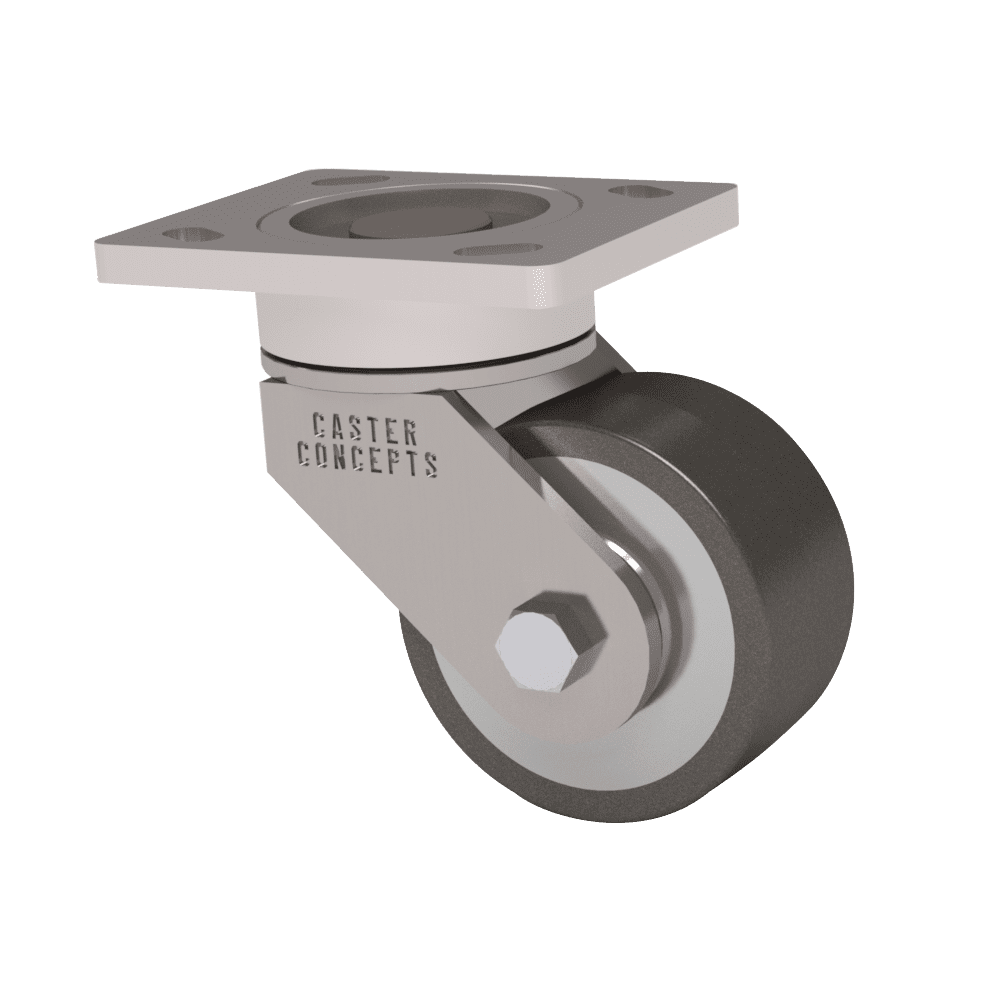

4×2 T/R-95 Polyurethane Swivel Caster

SKU: 55-04204-91-1
  • Load rating of 1000 lbs.
  • Overall height of 5.63 inches
  • T/R 95A PU Wheel - High tear resistance, extended wear, ergonomic benefits, good solvent and oil resistance. (Shore 95A Hardness)

$164.04$350.52 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , , Tags:


Specifications

Product Type: Caster
Series: 55
Capacity: 1,000 lbs.
Caster Material: Steel
Wheel Material: T/R-95 Polyurethane
Wheel Configuration: Single Wheel
Wheel Width: 2"
Wheel Diameter: 4"
Caster Style: Swivel Caster
Caster Type: Kingpinless
Overall Height: 5.63"
Swivel Radius: 4.12"
Swivel Lead: 2"
Top Plate Size: 4 x 5
Bolt Hole Pattern: 2.625 x 3.625 Slotted to 3 x 3
Bolt Size: 0.375"
Bearing Type: Annular Ball Bearing
SKU: 55-04204-91-1
Caster Weight: 8.02 lbs.

Product Description

This 4-inch by 2-inch 55 series caster provides the ultimate maintenance free combination. The swivel section is made from a high quality precision ball bearing. The raceways of the bearing are hardened for long life and the bearing is then sealed with neoprene seals to assure protection from contamination. No greasing is necessary. The smooth swivel action combined with an extended lead, help to lower ergonomic forces and minimize employee injuries.
The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Loaded with annular ball bearings, this wheel provides maximum rolling ease and quiet operation when needed. Annular ball bearings are best suited for light to medium-duty loads. Bearing is pre-assembled and the entire unit is mounted in the wheel, all together, this caster is rated for 1000 lbs.

Description

This 4-inch by 2-inch 55 series caster provides the ultimate maintenance free combination. The swivel section is made from a high quality precision ball bearing. The raceways of the bearing are hardened for long life and the bearing is then sealed with neoprene seals to assure protection from contamination. No greasing is necessary. The smooth swivel action combined with an extended lead, help to lower ergonomic forces and minimize employee injuries.
The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Loaded with annular ball bearings, this wheel provides maximum rolling ease and quiet operation when needed. Annular ball bearings are best suited for light to medium-duty loads. Bearing is pre-assembled and the entire unit is mounted in the wheel, all together, this caster is rated for 1000 lbs.

Additional information

Weight 8.02 lbs
