Picture may not be an exact representation of actual product*

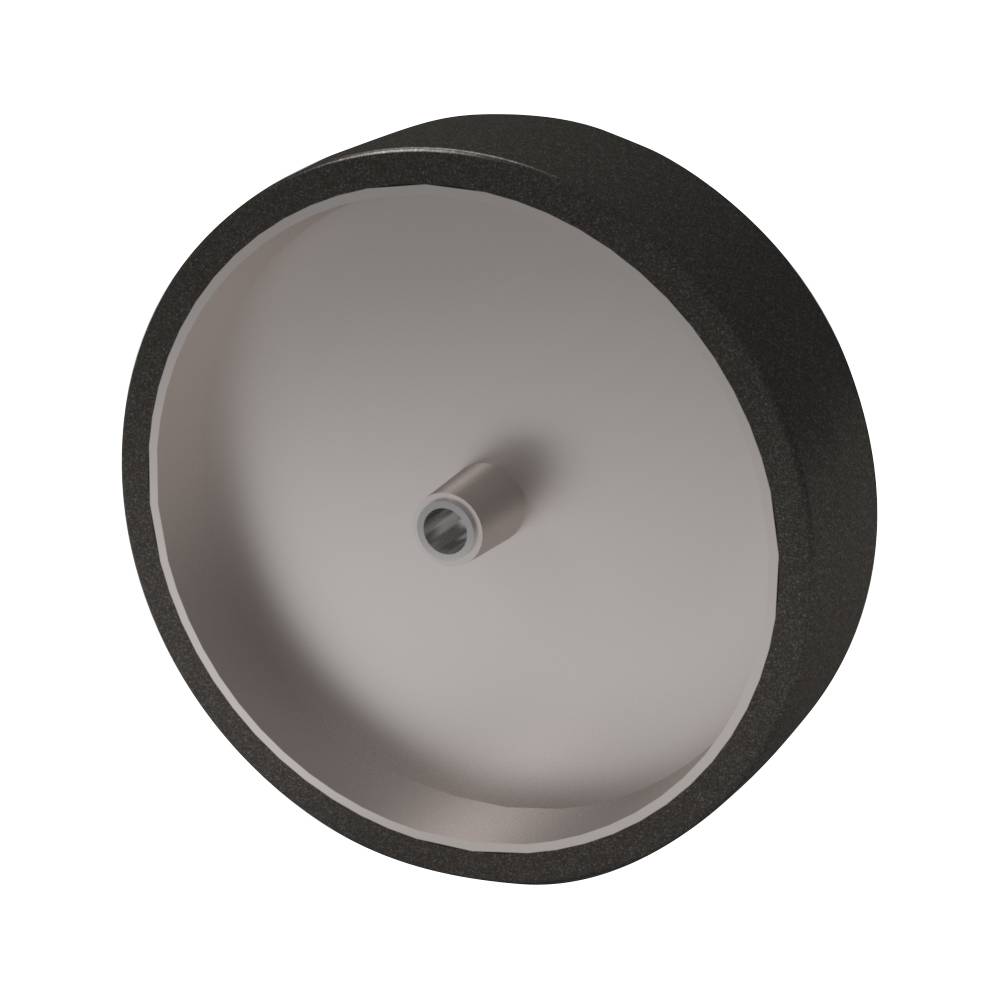

16×5 Mold On Rubber Caster Wheel

SKU: 16500-70-39
  • Load rating of 1500 lbs.
  • Mold On Rubber - Rubber tread molded onto a wheel core, providing cushioning, shock absorption, and traction. Offers a smooth and quiet ride.

$377.78 – $592.38 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Category:


Specifications

Product Type: Wheel
Capacity: 1,500 lbs.
Wheel Material: Mold On Rubber
Wheel Width: 5"
Wheel Diameter: 16"
*Temperature Range (Continuous): -30 to 250°F
Bearing Type: Bearingless
Hub Length: 5.25
Bore: 2.438
SKU: 16500-70-39
Caster Weight: 72 lbs.
*High temperature grease must be used over 200°F

Product Description

Our 16-inch by 5-inch Mold-On Rubber Caster Wheel combines the strength and resilience of rubber with a robust wheel core for exceptional performance. With superior traction, shock absorption, and non-marking properties, these caster wheels provide smooth and controlled movement while protecting floors. Being softer than poly wheels, mold-on rubber wheels absorb shock better, and also provide a more cost effective alternative for AGV and Conveyor wheels. Engineered to withstand heavy loads, they offer durability and longevity, thanks to the securely bonded mold-on rubber tread and solid wheel core. While polyurethane wheels typically offer higher weight capacities, these rubber wheels carry loads up to 1500 lbs.

Description

Our 16-inch by 5-inch Mold-On Rubber Caster Wheel combines the strength and resilience of rubber with a robust wheel core for exceptional performance. With superior traction, shock absorption, and non-marking properties, these caster wheels provide smooth and controlled movement while protecting floors. Being softer than poly wheels, mold-on rubber wheels absorb shock better, and also provide a more cost effective alternative for AGV and Conveyor wheels. Engineered to withstand heavy loads, they offer durability and longevity, thanks to the securely bonded mold-on rubber tread and solid wheel core. While polyurethane wheels typically offer higher weight capacities, these rubber wheels carry loads up to 1500 lbs.

Additional information

Weight 72 lbs
