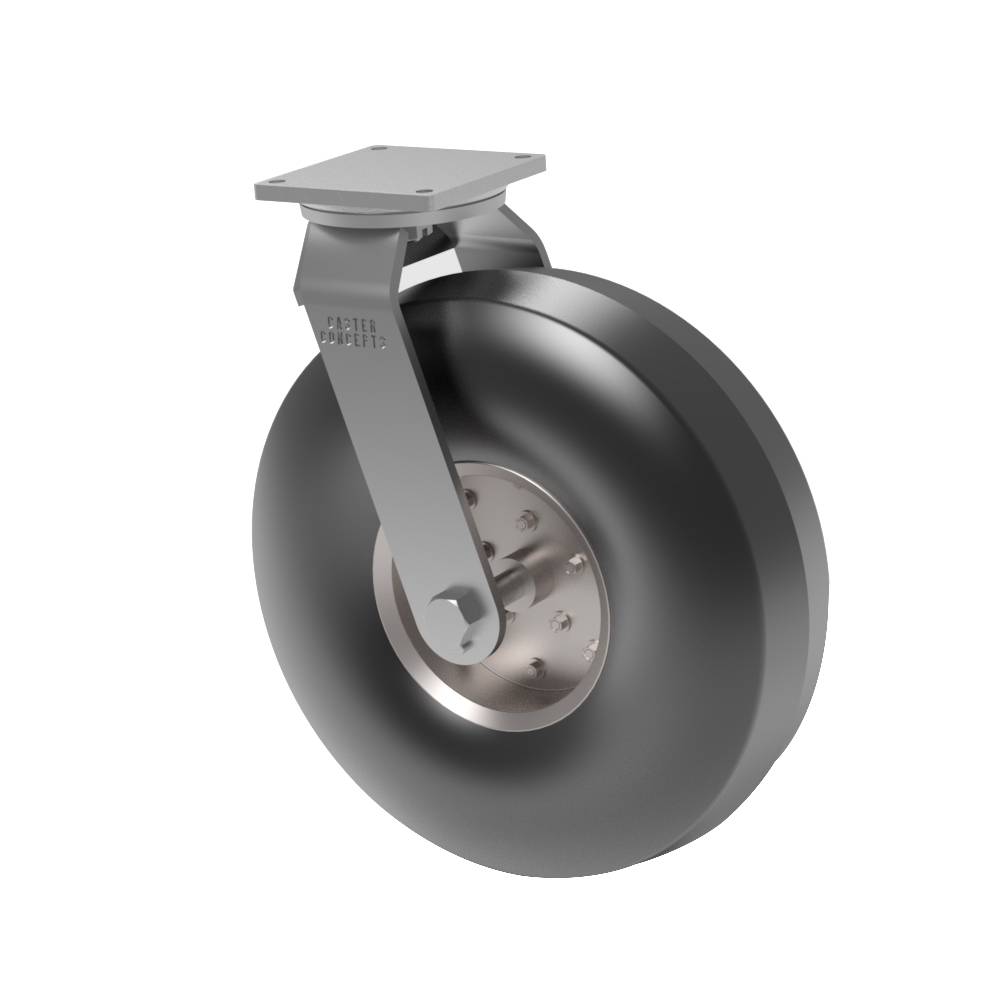

90 Series Large Pneumatic Caster Wheel

Picture may not be an exact representation of actual product*

16×400 x 8 Pneumatic Rubber Swivel Caster

SKU: 90-16509-78-1
  • Load rating of 2900 lbs.
  • Overall height of 19 inches
  • Pneumatic Rubber Wheel - Rubber tire, providing excellent shock absorption, traction, and smooth rolling on uneven surfaces.

$390.00 – $975.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , Tags:


Specifications

Product Type: Caster
Series: 90
Capacity: 2,900 lbs.
Caster Material: Steel
Wheel Material: Pneumatic Rubber
Wheel Configuration: Single Wheel
Wheel Type: Semi Pneumatic
Wheel Diameter: 16"
Caster Style: Swivel Caster
Caster Type: Kingpin
Overall Height: 19"
Swivel Radius: 15.88"
Swivel Lead: 5"
Top Plate Size: 8.5 x 8.5
Bolt Hole Pattern: 7 x 7
Bolt Size: 0.625"
Bearing Type: Precision Tapered Bearing
SKU: 90-16509-78-1
Caster Weight: lbs.

Product Description

This 16-inch by 400 x 8-inch 90 series caster, is a durable and high-performance solution designed to excel in demanding applications. Crafted through a drop forged process using C-1045 steel, the yoke and top plate of this caster exhibit exceptional strength and resilience. The integral forged kingpin seamlessly integrates with the top plate, while the precision-machined raceway and threaded kingpin ensure a secure assembly. Through rigorous heat treatment, all components are fortified for enhanced durability. The caster incorporates a precision tapered thrust bearing pressed over the kingpin, engaging the yoke for smooth operation, while hardened ball bearings complete the load-bearing raceway, providing reliable support for heavy loads. The precision-machined and hardened bearing raceways eliminate brinelling when subjected to shock loads, and a 1-1/4" tapered thrust bearing ensures a precision fit. With its impressive load capacity and excellent value, the 90 Series Caster is a trusted choice for applications that demand durability, precision, and cost-effectiveness, delivering exceptional performance and long-lasting reliability.

With wheels that mimick car tires, Pneumatic Casters feature rubber wheels around a metal hub, providing exceptional performance. They excel in moving fragile loads with minimal jarring on various surfaces including grass, pavement, and industrial floors. With quiet operation and load cushioning, they offer protection to both loads and floors. Constructed with hot forged steel and double row ball bearing swivels, these casters ensure durability and a long service life. The pneumatic tires cushion the load, absorb shocks, and effortlessly roll over obstructions. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 2900 lbs.
